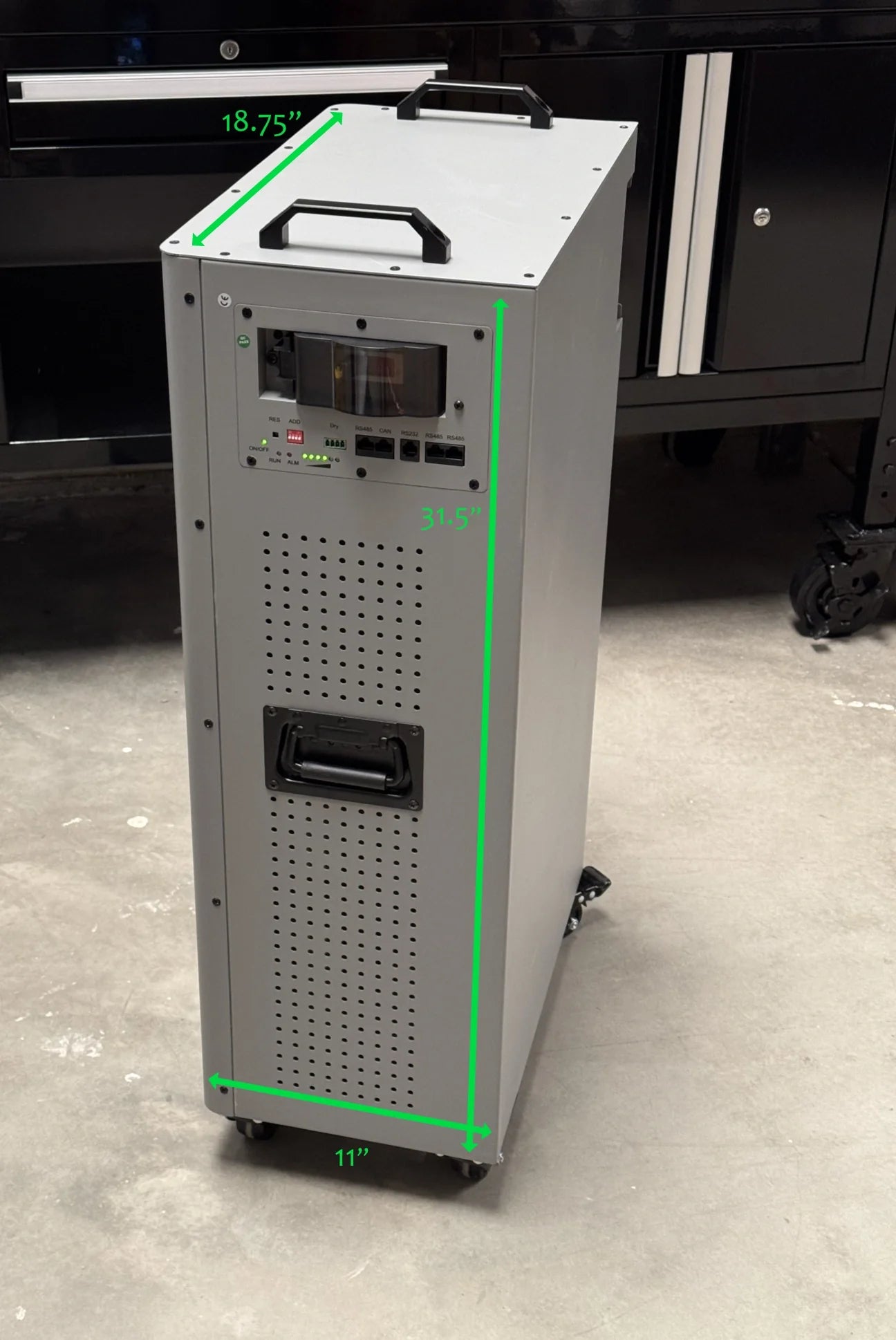

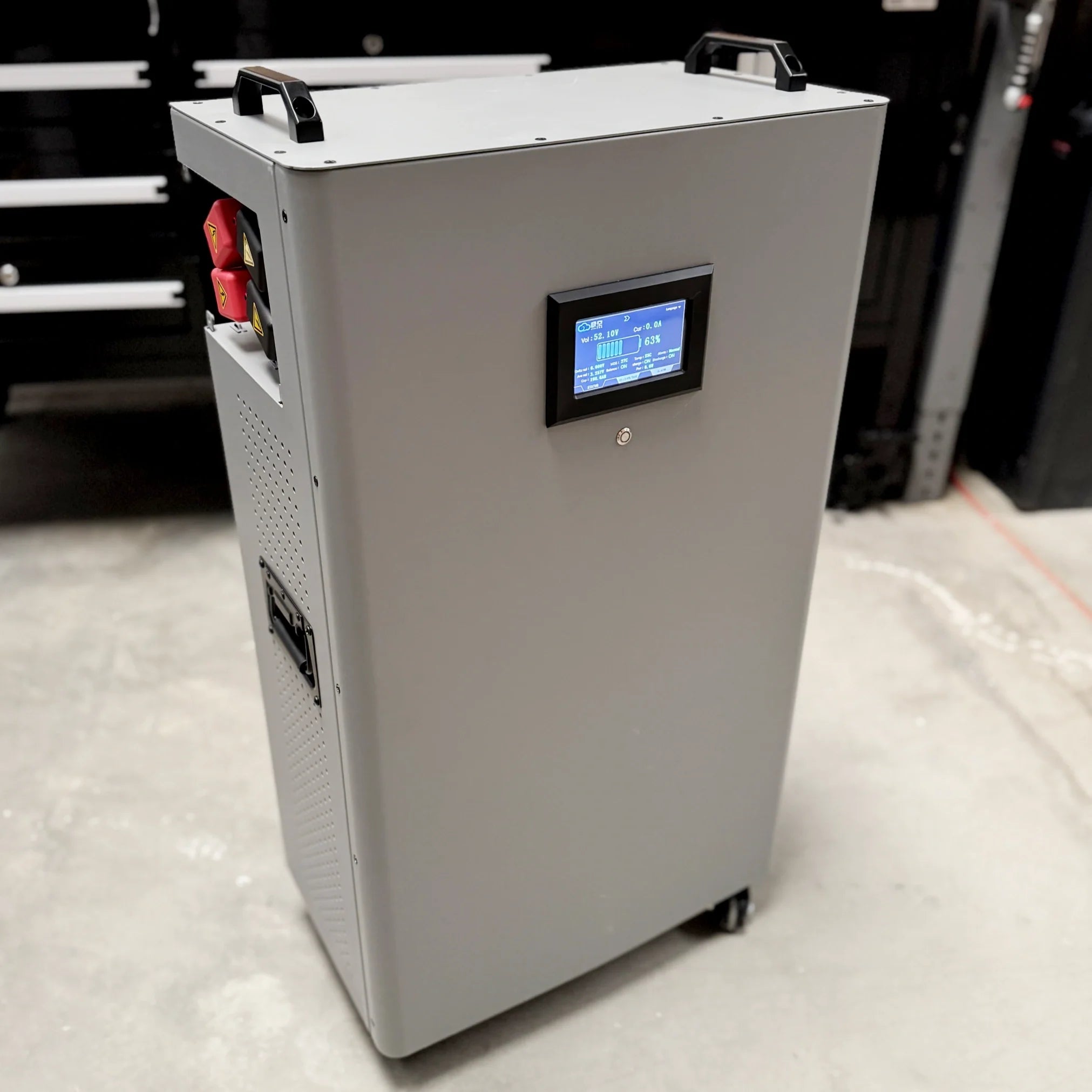

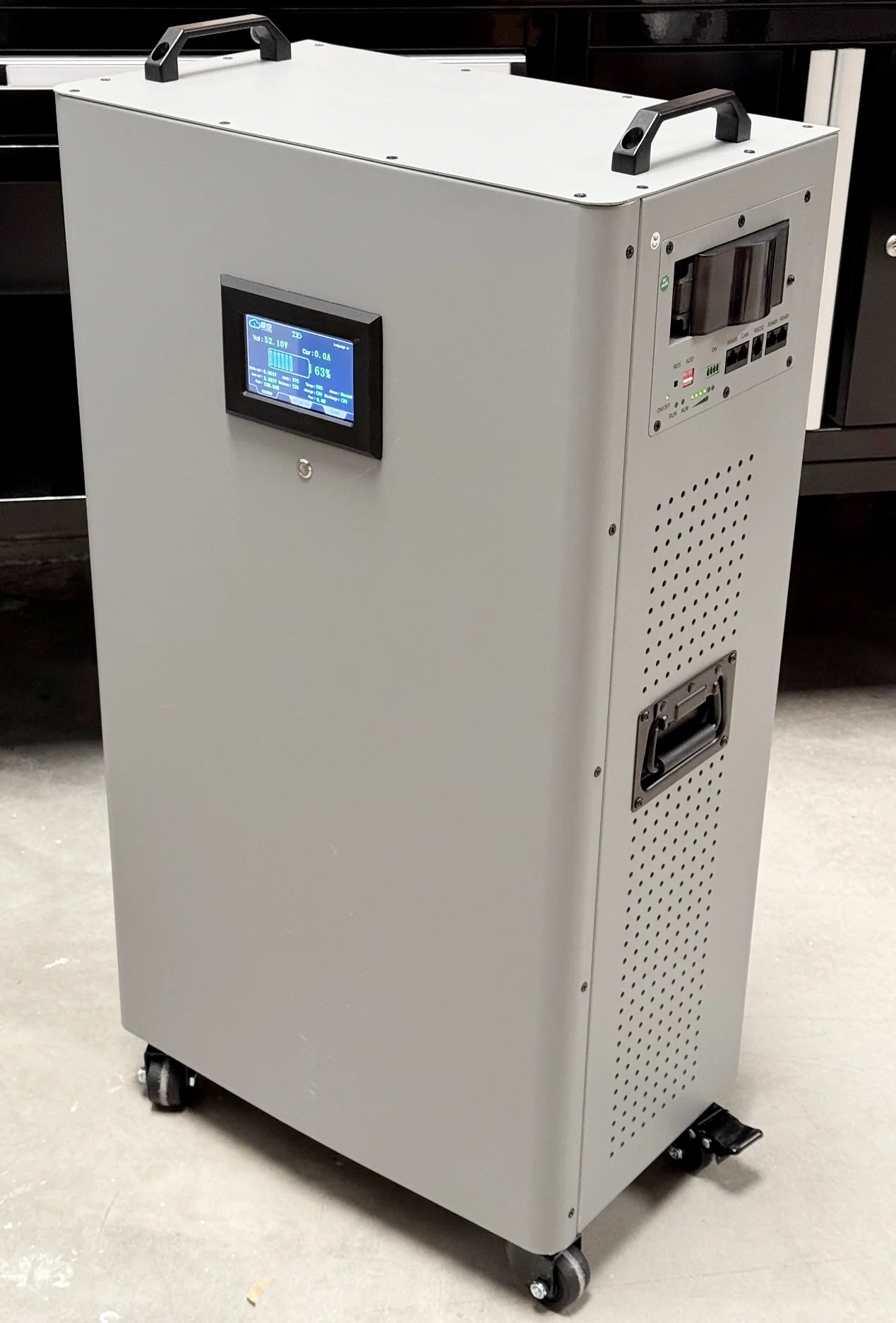

A very heavy duty thick gauge steel 16 kWh battery with an active balancing, 200A BMS, 200A breaker, easy to use monitoring display, Fuse, and integrated dry chemical fire extinguisher. DIY-friendly design allows you easy access to the 16 pcs 314Ah cells. Compact vertical tower on lockable wheels design.
JK 200A BMS with 7A Active Balancing - Datasheet (download).
Battery installation instructions (pdf).
The battery enclosure is compatible with both M6 post type connector and the twin bolt style 280 Ah / 304 / 314 MB31 style LFP cells.
It comes with single bolt busbars. If you need the twin style busbars, just message us.
Why order the case and cells separately:
The assembled battery case with cells weighs in excess of 286 Pounds. While the tower is small and rolls on wheels without much effort, the unit is quite heavy and one person cannot lift it. However, the case by itself is manageable (still quite heavy at 90 Lbs), and a carton containing two EVE LF314Ah cells weighs 27 pounds, making it easy for you to transport 8 cardboard boxes of batteries separately from the case. This also reduces the risk of shipping damage. The case can be shipped by air without any restrictions as it does not contain a battery. The battery can then be assembled on-site minimizing the need for freight trucking, fork lifts, and other energy required to transport this piece of equipment.
Why get it all pre-assembled:

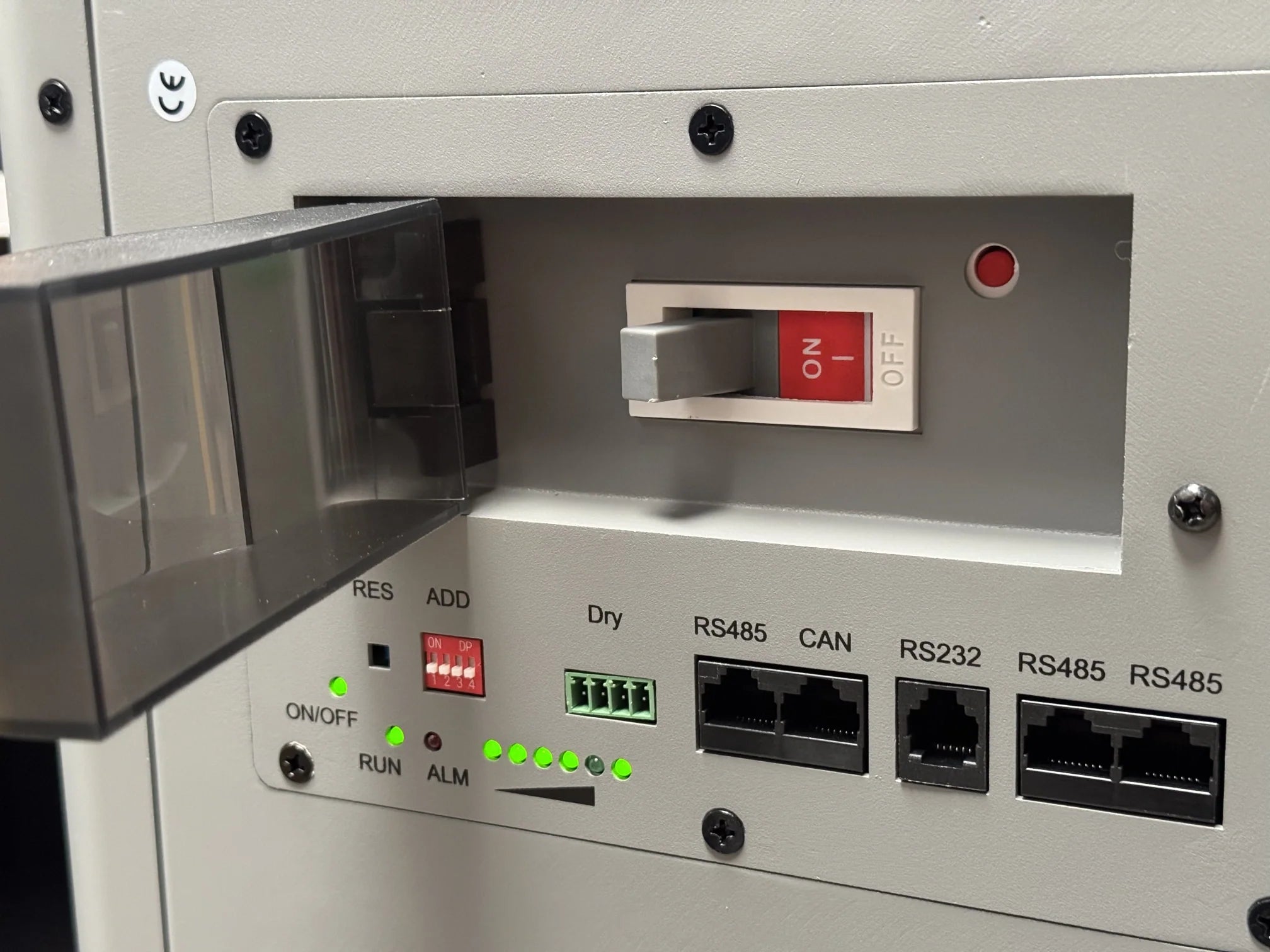

You receive a single box on a pallet at your doorstep or business, cut open the box, stand the unit up, and roll it to your location. You flip the breaker switch, press and hold the front button to turn on the BMS, and you're ready to go.
Or just the case:
Use your existing 280 / 304 / 314 cells and give them a new home to protect them and extend their lifespan.
We carry fresh, balanced, A+ grade EVE LF314 cells here.
| Order Processing Time: | Standard Processing : 1 to 2 business days (orders after 6 PM processed next business day). Please allow 4-7 days for delivery for products in stock. Want to delay delivery for a later date? No problem! Just contact us. |
| Shipping rates and Delivery: | Orders over $200: Free Shipping. Orders under $200: $15 flat shipping fee. Shipping limited to the United States. Shipping Methods: Freight carriers (18-wheel trucks) used for most orders. Freight items require curbside delivery appointment (phone number required at checkout). |
Description
A very heavy duty thick gauge steel 16 kWh battery with an active balancing, 200A BMS, 200A breaker, easy to use monitoring display, Fuse, and integrated dry chemical fire extinguisher. DIY-friendly design allows you easy access to the 16 pcs 314Ah cells. Compact vertical tower on lockable wheels design.
JK 200A BMS with 7A Active Balancing - Datasheet (download).
Battery installation instructions (pdf).
The battery enclosure is compatible with both M6 post type connector and the twin bolt style 280 Ah / 304 / 314 MB31 style LFP cells.
It comes with single bolt busbars. If you need the twin style busbars, just message us.
Why order the case and cells separately:
The assembled battery case with cells weighs in excess of 286 Pounds. While the tower is small and rolls on wheels without much effort, the unit is quite heavy and one person cannot lift it. However, the case by itself is manageable (still quite heavy at 90 Lbs), and a carton containing two EVE LF314Ah cells weighs 27 pounds, making it easy for you to transport 8 cardboard boxes of batteries separately from the case. This also reduces the risk of shipping damage. The case can be shipped by air without any restrictions as it does not contain a battery. The battery can then be assembled on-site minimizing the need for freight trucking, fork lifts, and other energy required to transport this piece of equipment.
Why get it all pre-assembled:
You receive a single box on a pallet at your doorstep or business, cut open the box, stand the unit up, and roll it to your location. You flip the breaker switch, press and hold the front button to turn on the BMS, and you're ready to go.
Or just the case:
Use your existing 280 / 304 / 314 cells and give them a new home to protect them and extend their lifespan.
We carry fresh, balanced, A+ grade EVE LF314 cells here.
