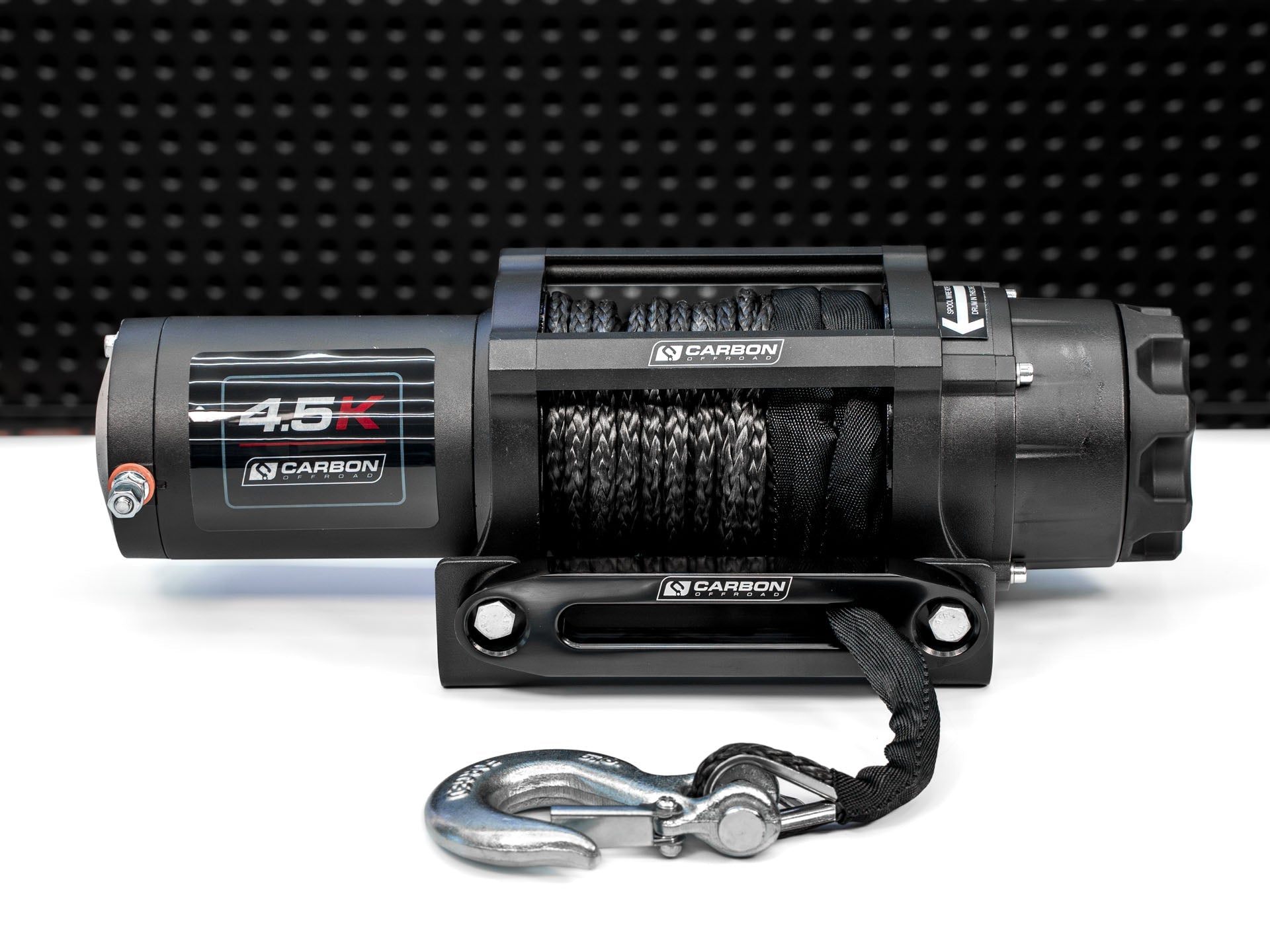

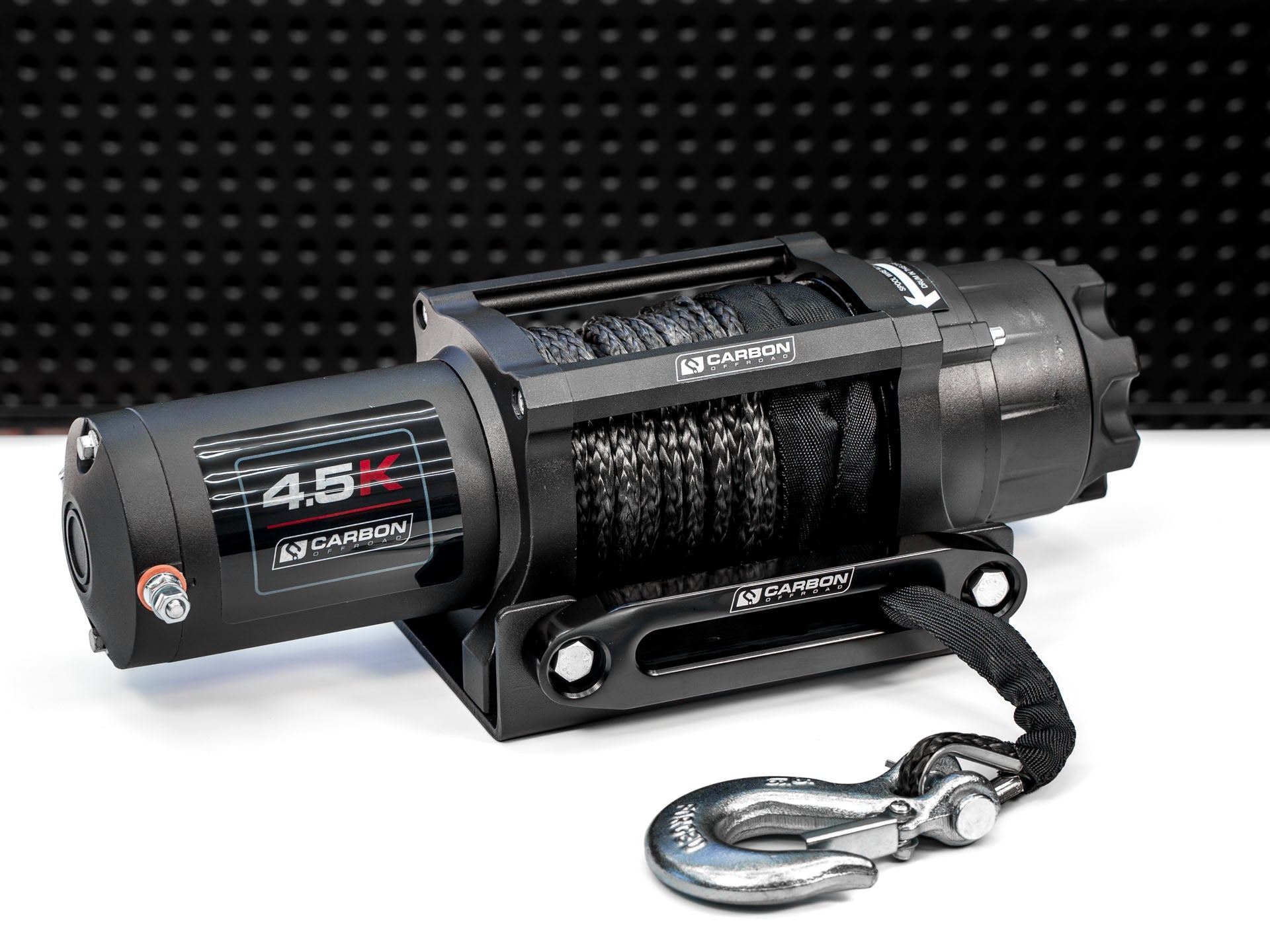

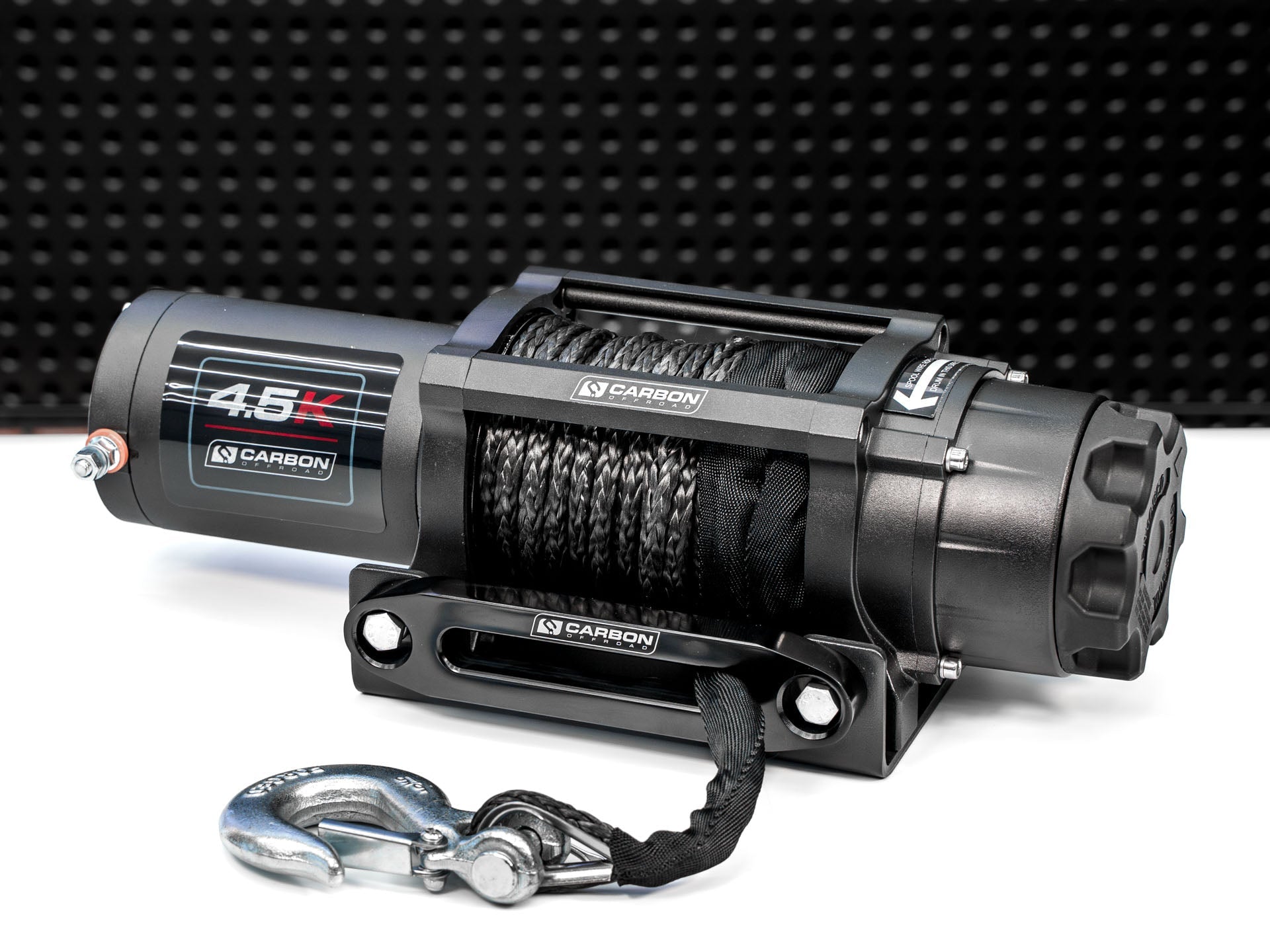

Built for heavier side-by-sides and utility vehicles, the ATV 4.5K offers 4,500lb capacity and a compact, rugged build. Designed for ATVs, UTVs, side-by-sides, car trailers and equipment transport; this winch is ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers.
- 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use
- 1.9HP Motor – Compact with reliable pulling power
- 176:1 Gear Ratio – Strong, controlled operation
- 43ft (13m) Synthetic Rope – Lightweight and durable
- Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm)
- Drum Dimensions – 1.26in x 2.87in (32mm x 73mm)
- Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm)
- IP66 Rated winch and solenoid (excludes remote control and switch)
- Wired + Wireless Remotes – Flexible control options
12V DC PERFORMANCE SPECS (first layer of drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
| Order Processing Time: | Standard Processing : 1 to 2 business days (orders after 6 PM processed next business day). Please allow 4-7 days for delivery for products in stock. Want to delay delivery for a later date? No problem! Just contact us. |
| Shipping rates and Delivery: | Orders over $200: Free Shipping. Orders under $200: $15 flat shipping fee. Shipping limited to the United States. Shipping Methods: Freight carriers (18-wheel trucks) used for most orders. Freight items require curbside delivery appointment (phone number required at checkout). |
We aim to ensure your shopping experience with us is hassle-free, and to achieve that, we've streamlined our return and refund process for clarity. Here's a breakdown of our policy:
Return Time Frame: You have a 30-day window from the date of purchase to initiate a return. Unfortunately, if it surpasses the 30-day period, we won't be able to accept the return.
Shipping Cost: In cases where the item is defective or not as expected, we cover the shipping cost for the return. However, if the return is due to a change of mind, you are responsible for the return shipping expenses.
Defective or Broken Products: If the product is faulty or damaged, notify us within 30 days. We'll facilitate the return at no additional cost. Once we receive the item and verify the issue, we'll either provide a replacement or issue a refund, including the original shipping charges.
Change of Mind Returns: Should you decide to return an item within 30 days for reasons unrelated to defects, you will need to cover the return shipping costs. Ensure the item is unused and in its original packaging. Upon receipt, we will refund the item's cost, excluding the shipping fee.
Refunds: Following the reception and assessment of the returned product, we will notify you via email. The refund, processed within 7 business days, will be credited to the original payment method. Note that banking institutions may take some time to reflect the refund.
If more than 10 business days elapse without the refund appearing, please reach out to us at support@summitprestige.com.
Please be aware that certain scenarios may involve a restocking fee.
For any further inquiries regarding returns or refunds, feel free to contact our friendly Customer Support team at support@summitprestige.com.
Description
Built for heavier side-by-sides and utility vehicles, the ATV 4.5K offers 4,500lb capacity and a compact, rugged build. Designed for ATVs, UTVs, side-by-sides, car trailers and equipment transport; this winch is ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers.
- 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use
- 1.9HP Motor – Compact with reliable pulling power
- 176:1 Gear Ratio – Strong, controlled operation
- 43ft (13m) Synthetic Rope – Lightweight and durable
- Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm)
- Drum Dimensions – 1.26in x 2.87in (32mm x 73mm)
- Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm)
- IP66 Rated winch and solenoid (excludes remote control and switch)
- Wired + Wireless Remotes – Flexible control options
12V DC PERFORMANCE SPECS (first layer of drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
