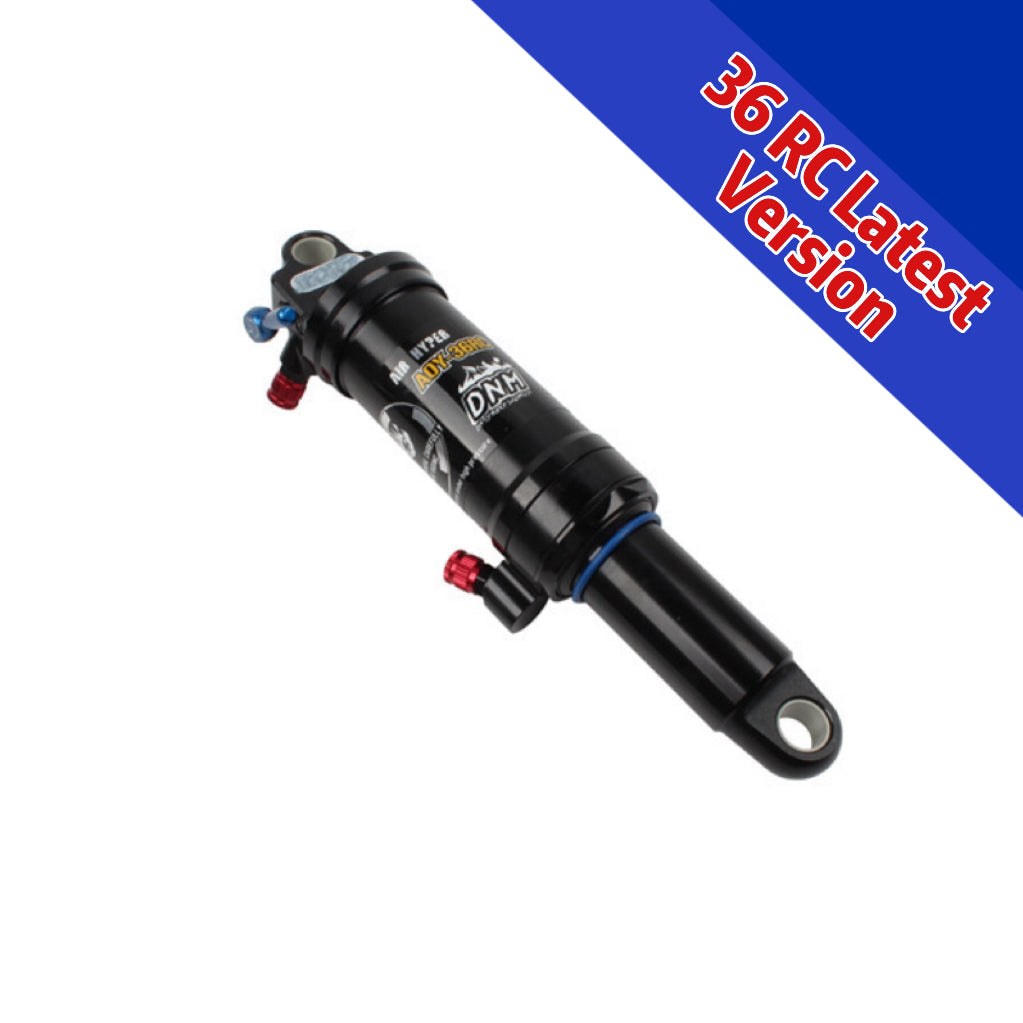

Learn All About the DNM advanced rear shock
1) Newest Version: the latest version of the DNM AOY rear shock series.
2) SPECIFICATION: Adjustments Rebound / Lockout / Air Pressure Adjustable, Damper shaft Dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft. Dark hard-anodized AL-6061 shock body.Riding style XC /TRAIL, Available Size Eye to Eye x Travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83 x 1.97 inch) 200 × 55 mm ( 7.87 × 2.17 inch) Weight: 0.4 KG(0.88 Ib) for 165 mm Lenght

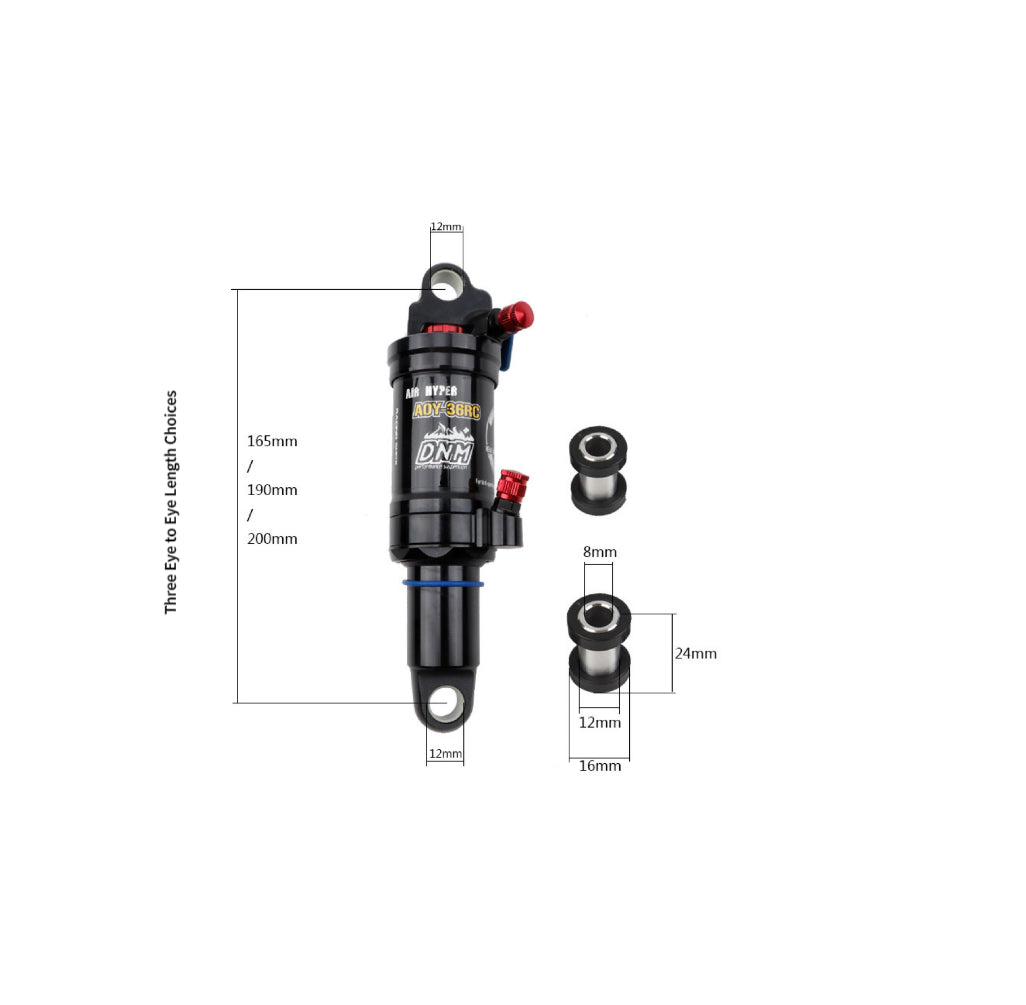

3) BUSHING INCLUDES: Top Busing Size 8mm x 24mm Bottom Bushing Size 8mm x 24mm, Includes extra bushing and hardware 8mm x 50mm Length. We Have Included An Additional Set Of Accessories To Meet The Different Size Requirements Of Some Customers Please see 2nd Pictures

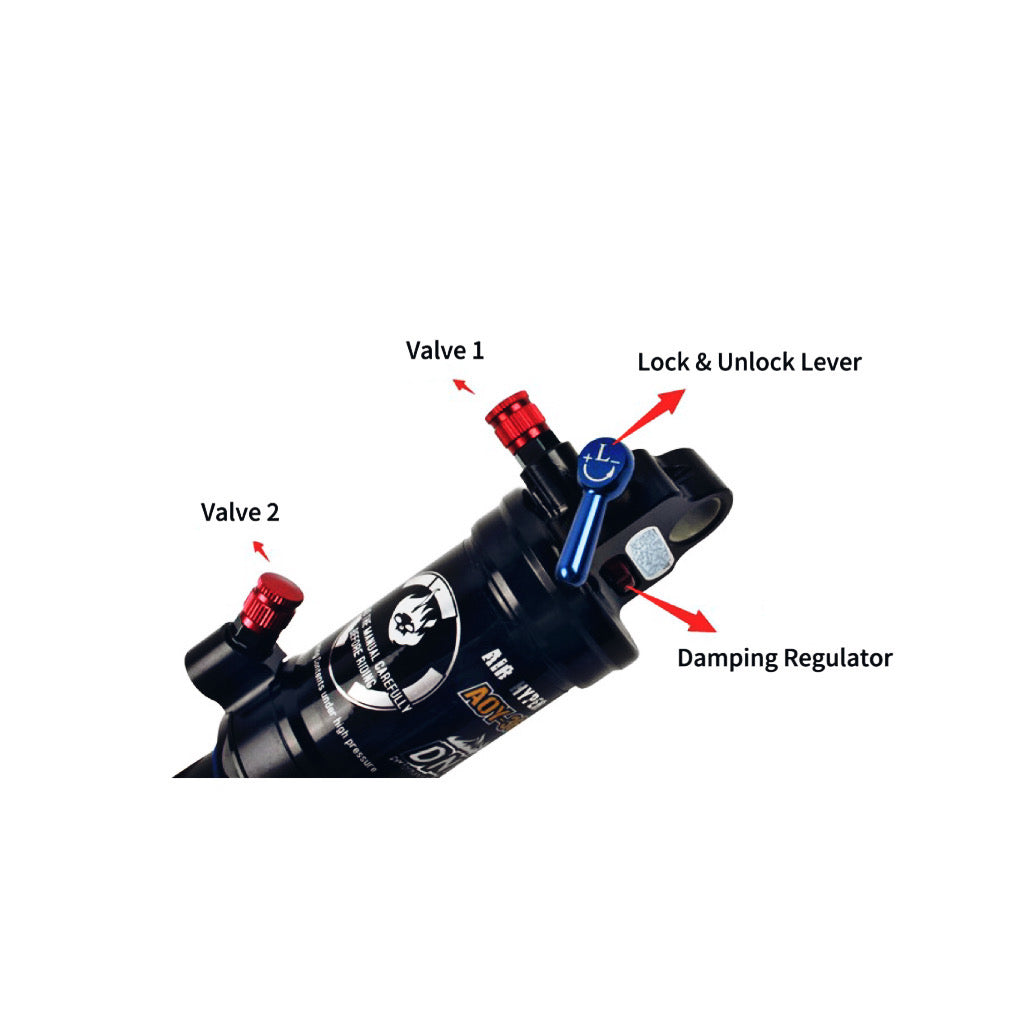

4) FUNCTION: Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter
5) BAROMETRIC RECOMMENDATION:
Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi.Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi.Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi.Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi.Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi.Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi.

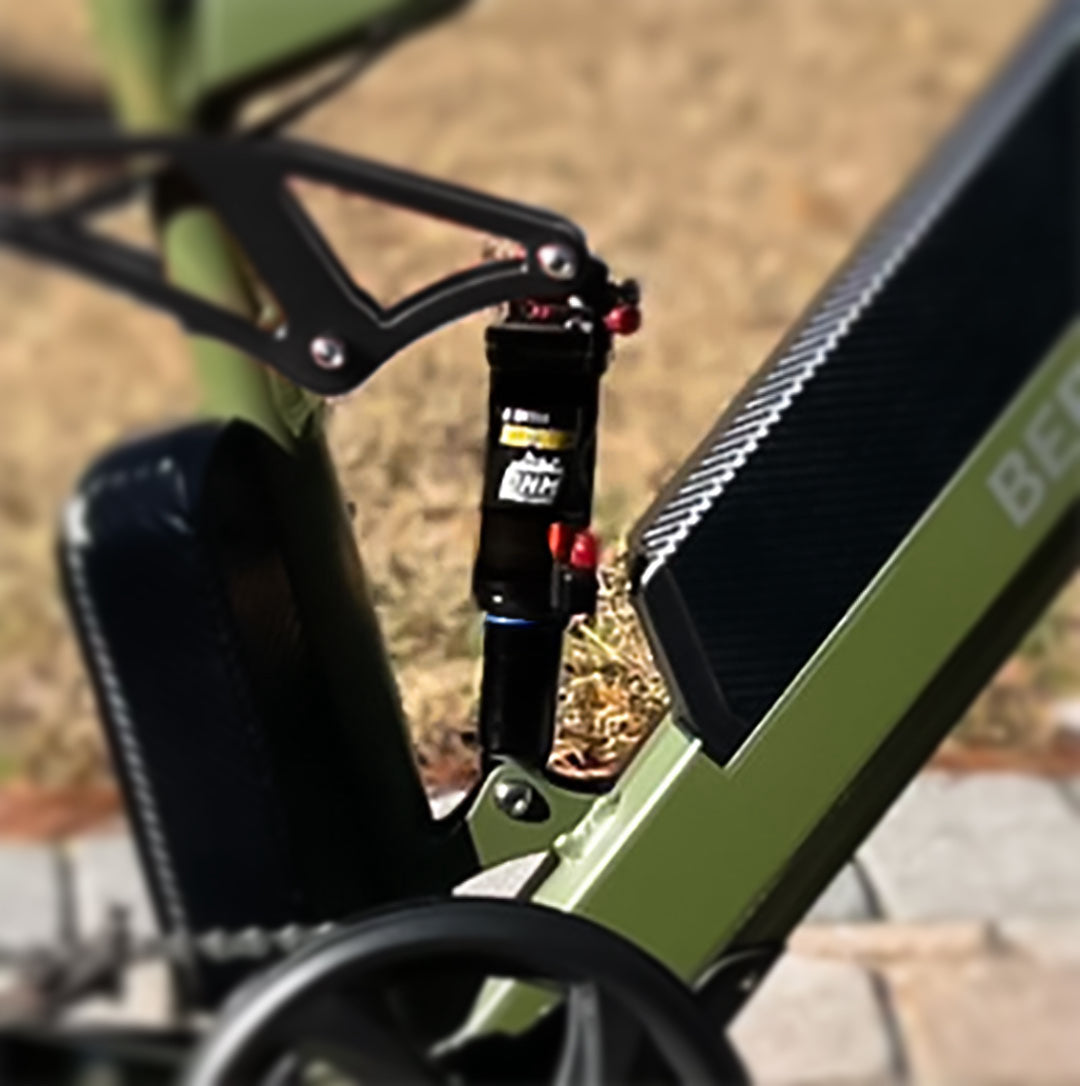

6) Eye-to-Eye Length Recommended for BeeCool Bikes: The advanced rear shock fits Bee Adventurer and Bee Explorer models if you want to install it on a BeeCool model. We recommend you buy the 165mm or 190mm version for your Bee Adventurer and Bee Explorer models. If you want the seat height to stay the same as the original one, you can choose a 190mm size. If you want a lower seat height (1.2 inches lower), you can choose a 165mm size.
| Handling Time: | Orders are processed within 1–2 business days. If you place an order after 06:00 p.m., we will process it on the next business day. |
| Delivery Timeframes & Cost: | Standard shipping within the United States takes 4 to 7 business days. Free shipping applies to orders above $200. A $15 shipping fee is charged for orders below that amount. |
- Returns accepted within 30 days for new, unused, and unopened items.
- To start a return or cancel an unshipped order, contact us at support@summitprestige.com or +1 301-707-5785.
- Customers are responsible for return shipping unless the item is incorrect or damaged.
- Refunds are issued within 10 business days after the returned item is received.
- Send approved returns to:
591 John Chaney Rd, Ridgeley, WV 26753, United States
Description
Learn All About the DNM advanced rear shock
1) Newest Version: the latest version of the DNM AOY rear shock series.
2) SPECIFICATION: Adjustments Rebound / Lockout / Air Pressure Adjustable, Damper shaft Dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft. Dark hard-anodized AL-6061 shock body.Riding style XC /TRAIL, Available Size Eye to Eye x Travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83 x 1.97 inch) 200 × 55 mm ( 7.87 × 2.17 inch) Weight: 0.4 KG(0.88 Ib) for 165 mm Lenght
3) BUSHING INCLUDES: Top Busing Size 8mm x 24mm Bottom Bushing Size 8mm x 24mm, Includes extra bushing and hardware 8mm x 50mm Length. We Have Included An Additional Set Of Accessories To Meet The Different Size Requirements Of Some Customers Please see 2nd Pictures
4) FUNCTION: Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter
5) BAROMETRIC RECOMMENDATION:
Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi.Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi.Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi.Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi.Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi.Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi.
6) Eye-to-Eye Length Recommended for BeeCool Bikes: The advanced rear shock fits Bee Adventurer and Bee Explorer models if you want to install it on a BeeCool model. We recommend you buy the 165mm or 190mm version for your Bee Adventurer and Bee Explorer models. If you want the seat height to stay the same as the original one, you can choose a 190mm size. If you want a lower seat height (1.2 inches lower), you can choose a 165mm size.
