Magnum Bikes Pilot Hub

$1,799.00

Color

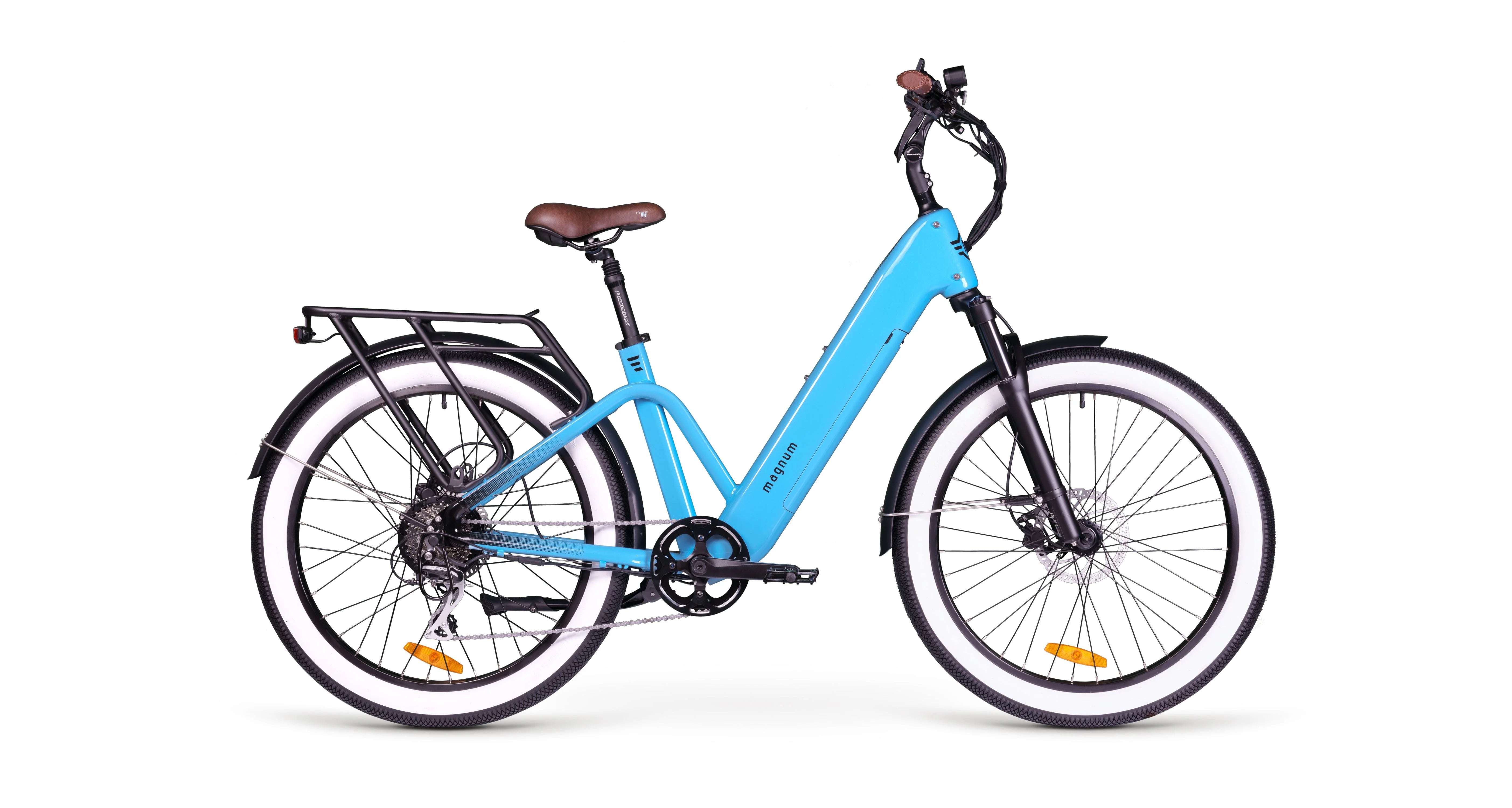

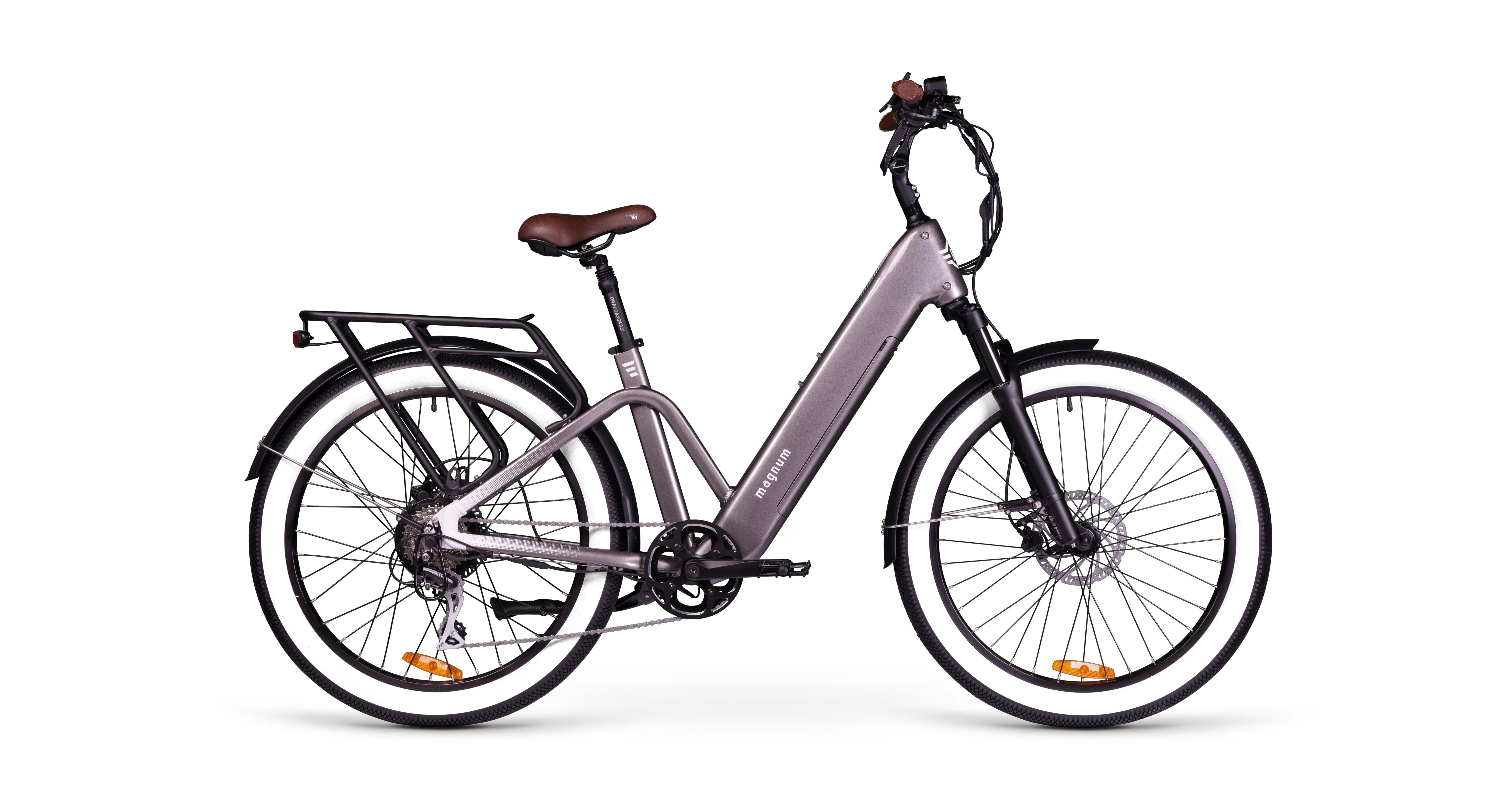

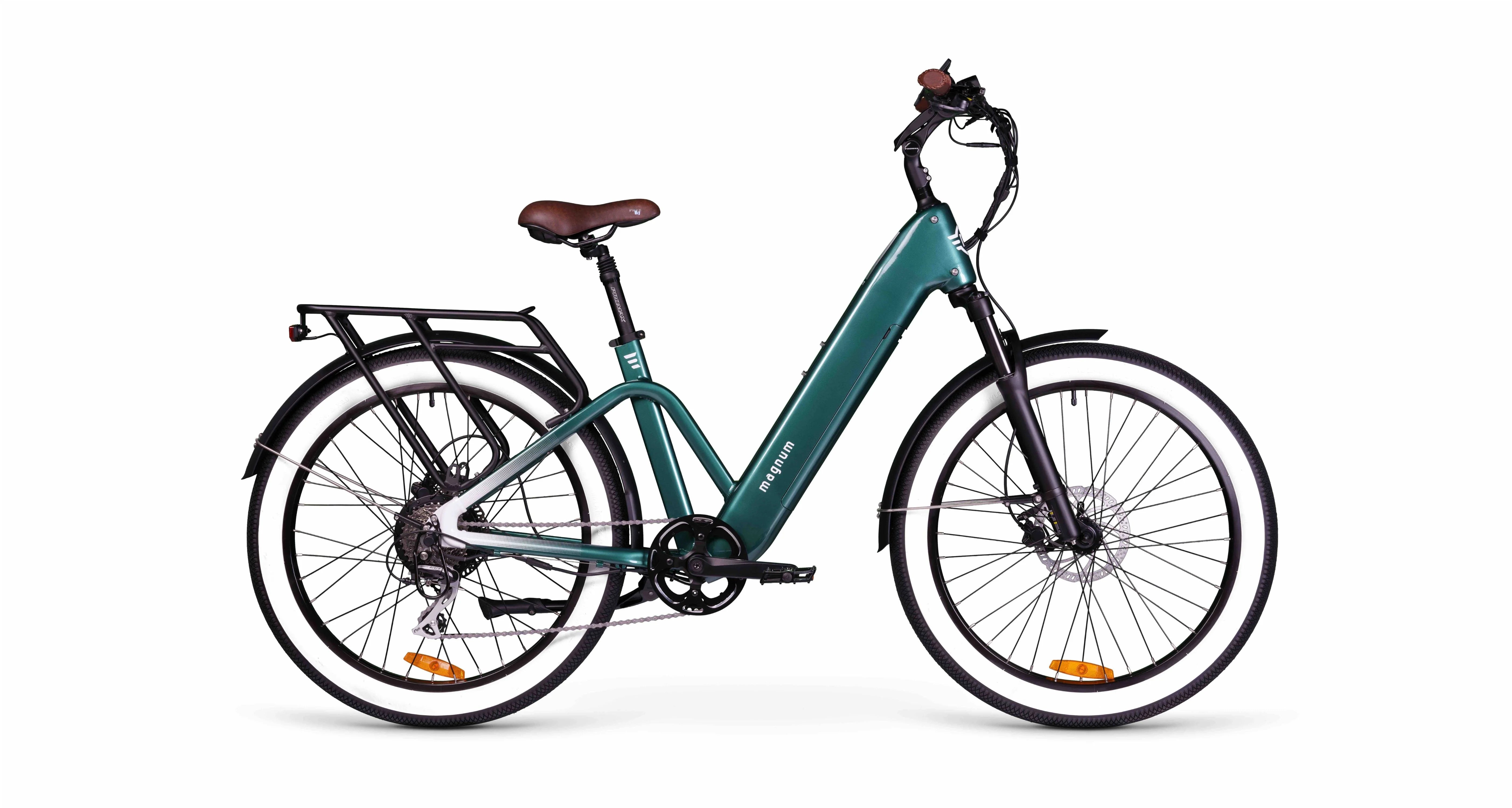

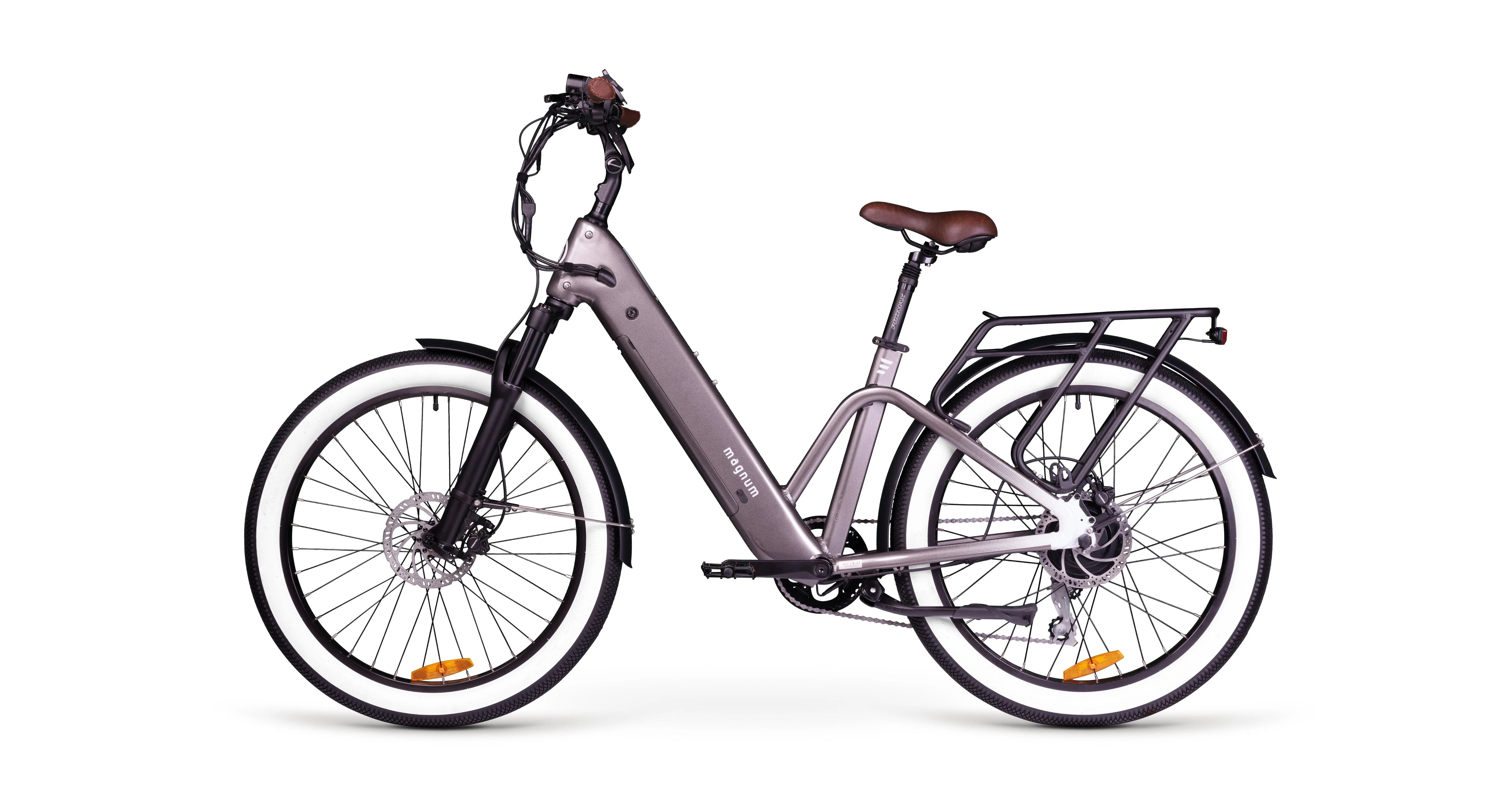

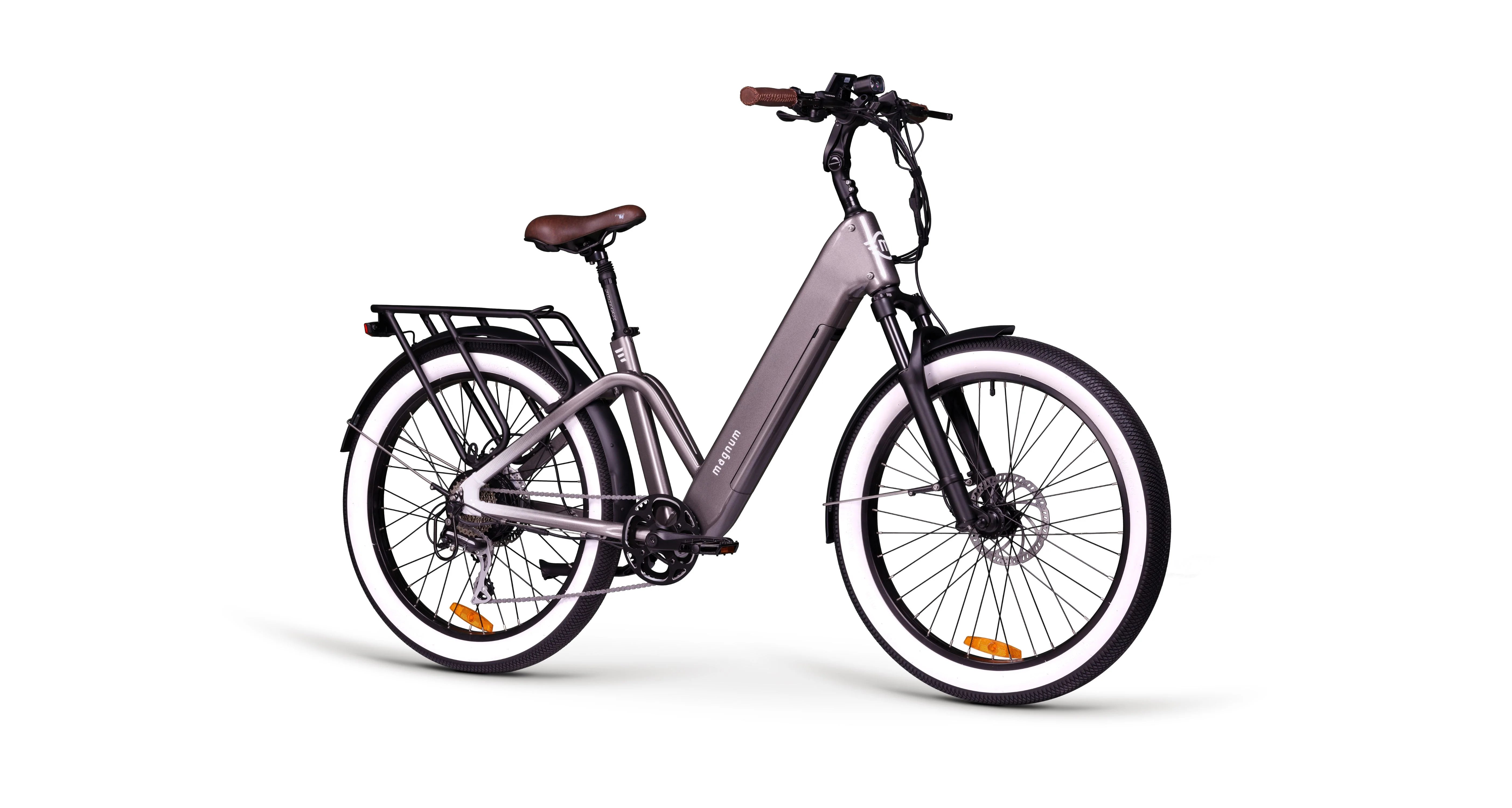

Magnum Pilot Hub – 500W 48V Touring E-Bike

Classic Design Meets Modern Performance
The Magnum Pilot Hub blends timeless style with powerful performance. Its low-step frame, fully integrated color-matched 15Ah battery, and smooth torque sensor pedal assist deliver up to 50 miles per charge with effortless control. Ideal for paved roads, light trails, and everyday recreation, the Pilot Hub is your reliable partner for comfortable rides with style.

Highlights

Category: Touring
Class: Configurable as Class 1, 2, or 3
Frame Type: Low-step
Seating: Relaxed
Perfect For: Paved roads, Light trails, Recreation

Battery & Range

Battery: 48V / 15Ah / 720Wh Li-NMC battery, fully integrated and color-matched
Range: Up to 50 miles (80 km) depending on conditions
Charge Time: Approx. 7.5 hours

Performance & Components

Motor: Bafang 500W hub motor (750W peak output)
Drive Mode: Torque sensor pedal assist, thumb throttle, walk mode
Top Speed: Up to 28 mph (45 km/h) with pedal assist; 20 mph (32 km/h) throttle
Gearing: Shimano 8-speed (11-32T cassette)
Brakes: Tektro hydraulic disc brakes
Fork: Suspension fork with 100mm travel and lock-out for smooth rides
Tires: 26” x 3.0” wide tires for comfort and stability
Display: Magnum VeloFox 8 x 7 cm backlit monochrome LCD with battery, speed, assist level, and trip data

Comfort & Convenience

Saddle: Selle Royal Freeway
Grips: Brown faux leather
Pedals: Wellgo platform
Kickstand: Center-mounted, single side, adjustable length
Bell: Included
Fenders: Front and rear included
Rear Rack: Included for cargo or accessories
Accessory Mounts: Built-in head tube and top tube mounts for customization

Dimensions & Weight

Seat Tube: 17.5" (44 cm)
Reach: 16.75" (42.5 cm)
Stand Over Height: 19.25" (49 cm)
Virtual Top Tube Length: 23.25" (59 cm)
Saddle Height Range: 23"–29.25" (58–74 cm)
Width: 27" (69 cm)
Wheelbase: 48" (122 cm)
Length: 76" (193 cm)
Weight: 74.5 lbs (33.75 kg)
Battery Weight: 8.5 lbs (3.9 kg)
Recommended Minimum Rider Height: 5’0” (152 cm)
Max Load Capacity: 330 lbs (150 kg)

What’s Included

Charger (54.6V / 2A)
Center-mounted adjustable kickstand
Bell
Front and rear fenders
Rear rack

The Magnum Pilot Hub is the perfect blend of classic looks, reliable power, and modern convenience — built for riders who want smooth, stylish, and capable e-bike performance on every ride.
