COSWHEEL GT20 Max EBike

SKU: GT20 MAX EBIKE

$2,399.00

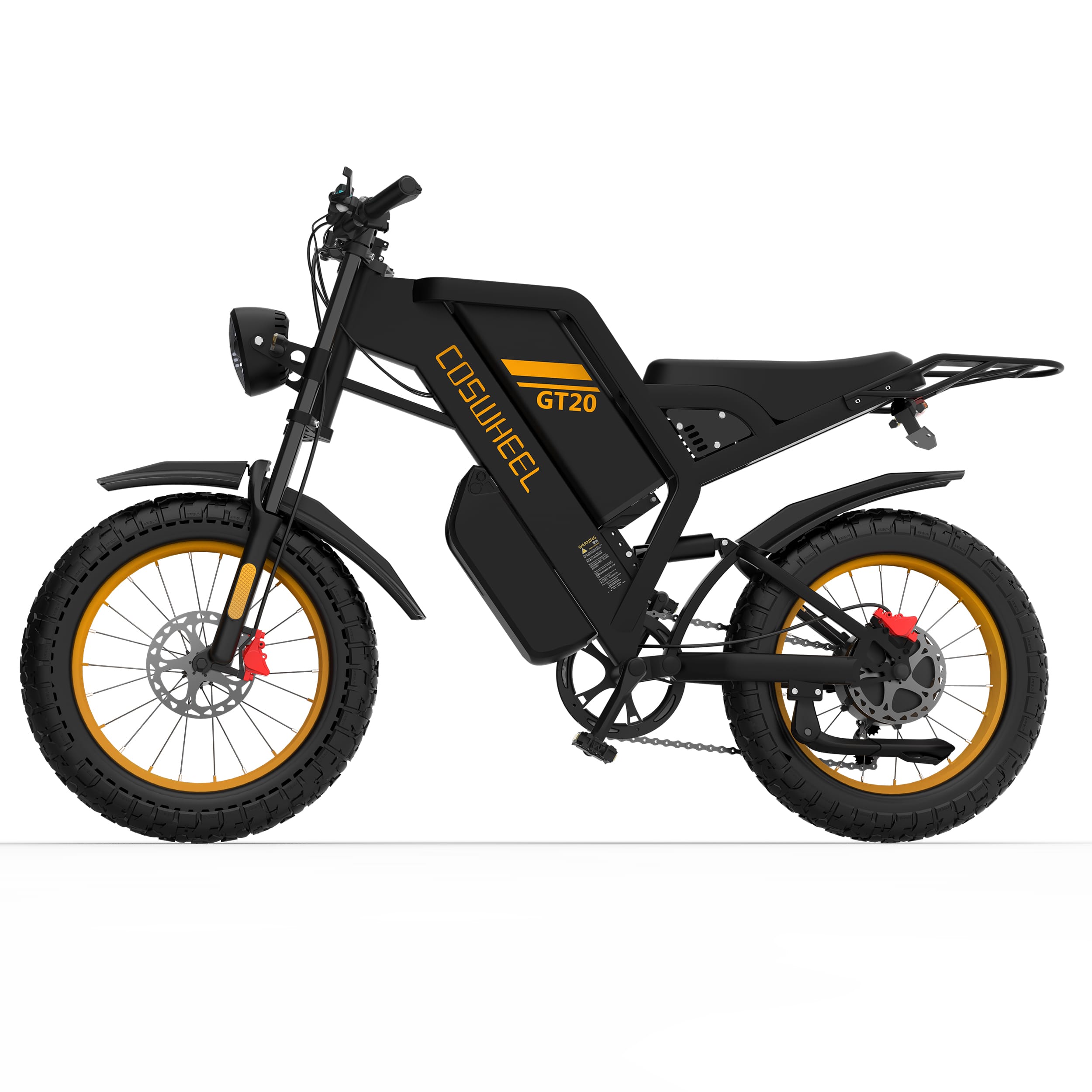

GT20 MAX Fat Tire Electric Bike

Torque: 120Nm – Climb up to 35° slopes with ease

GT20 MAX Specifications

Top Speed: Up to 40 MPH (65 km/h) – Class 2/3
Range:

80+ miles (128 km) – Throttle-only
145 miles (233 km) – Pedal Assist (PAS)

Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor
Torque: 120Nm

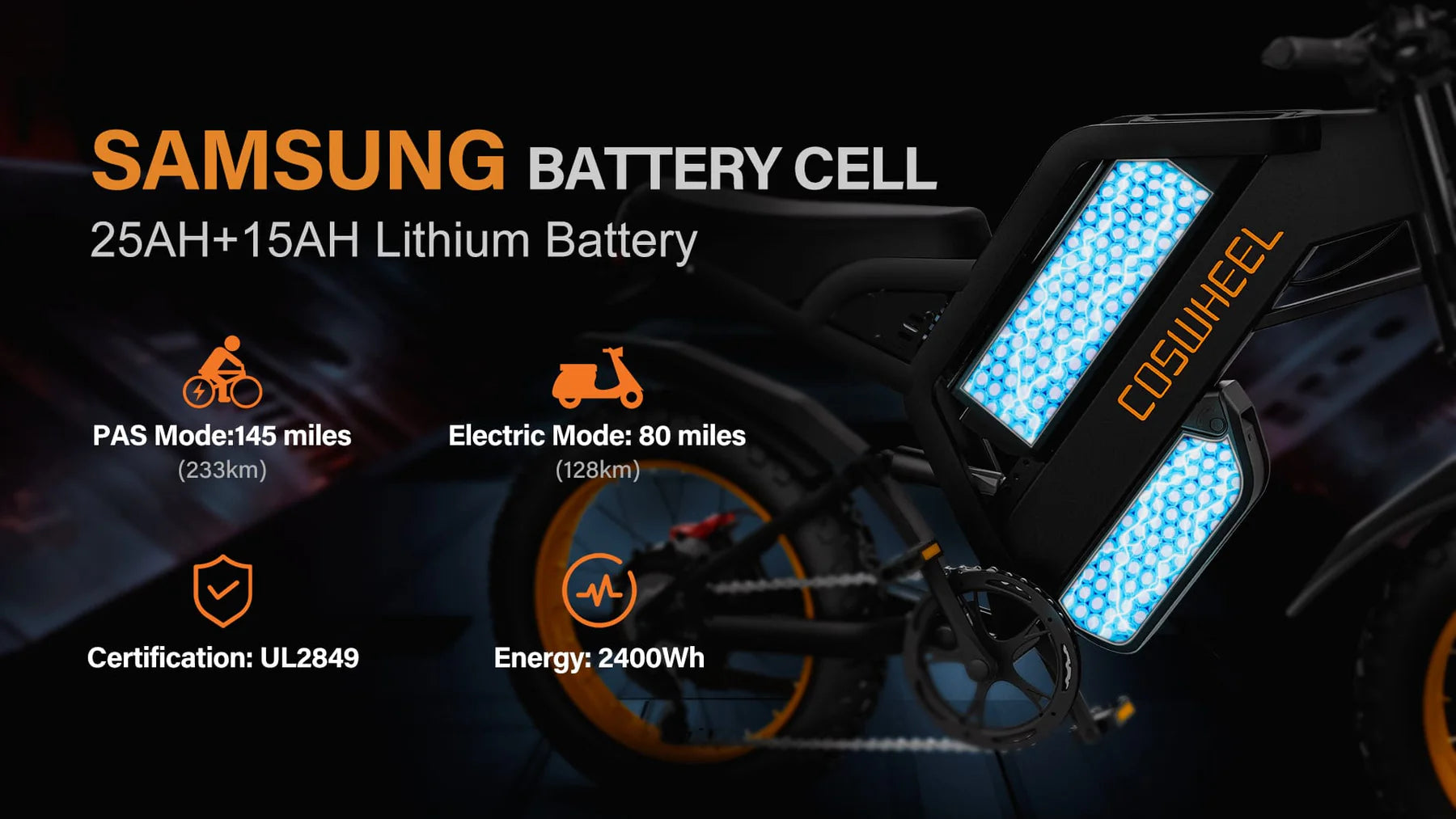

Battery: Dual Samsung Batteries – 60V 25Ah + 15Ah (2400Wh total)
Charging Time: 3.5 – 8 Hours with 60V 5A Charger
Controller: 60V 35A

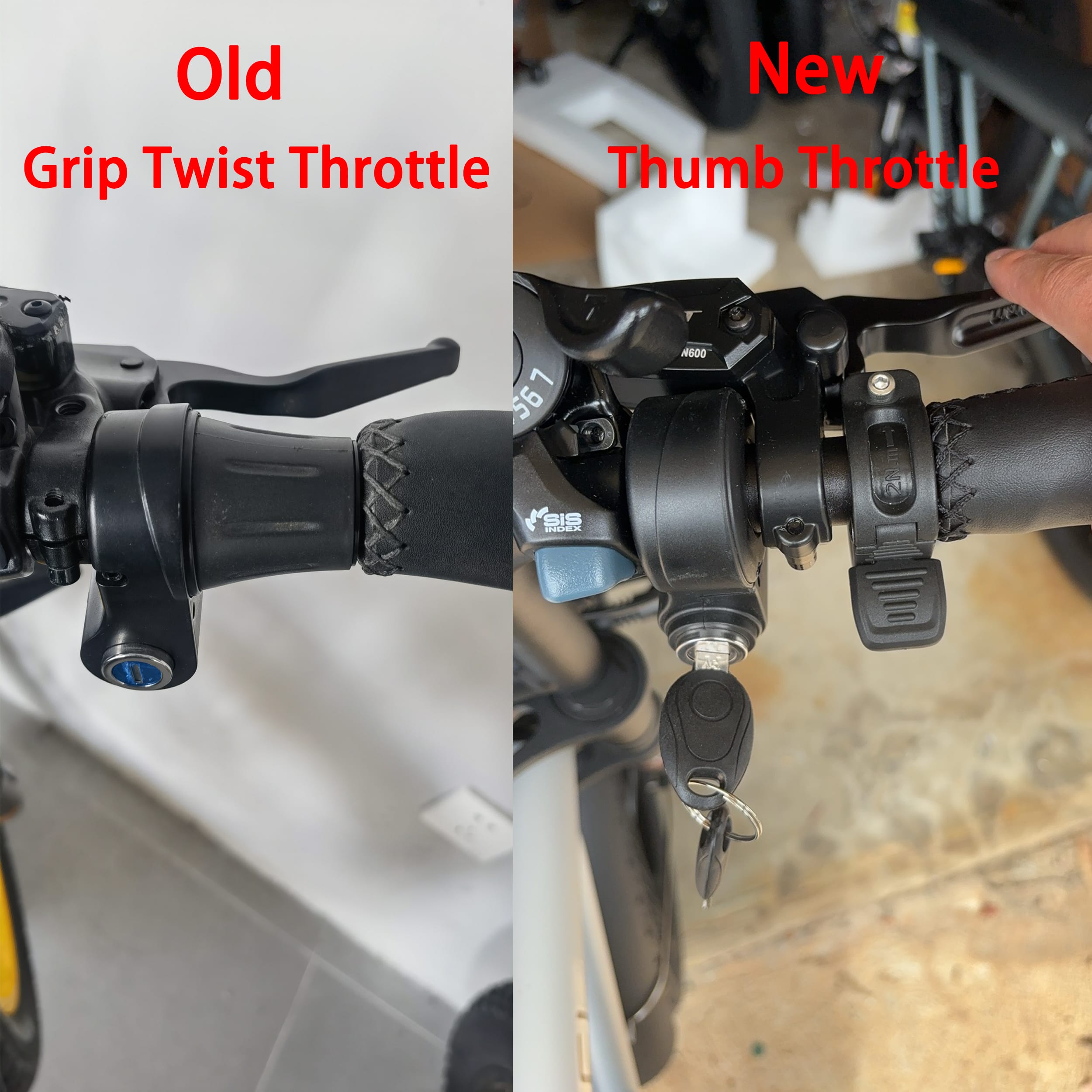

Throttle: Thumb Throttle

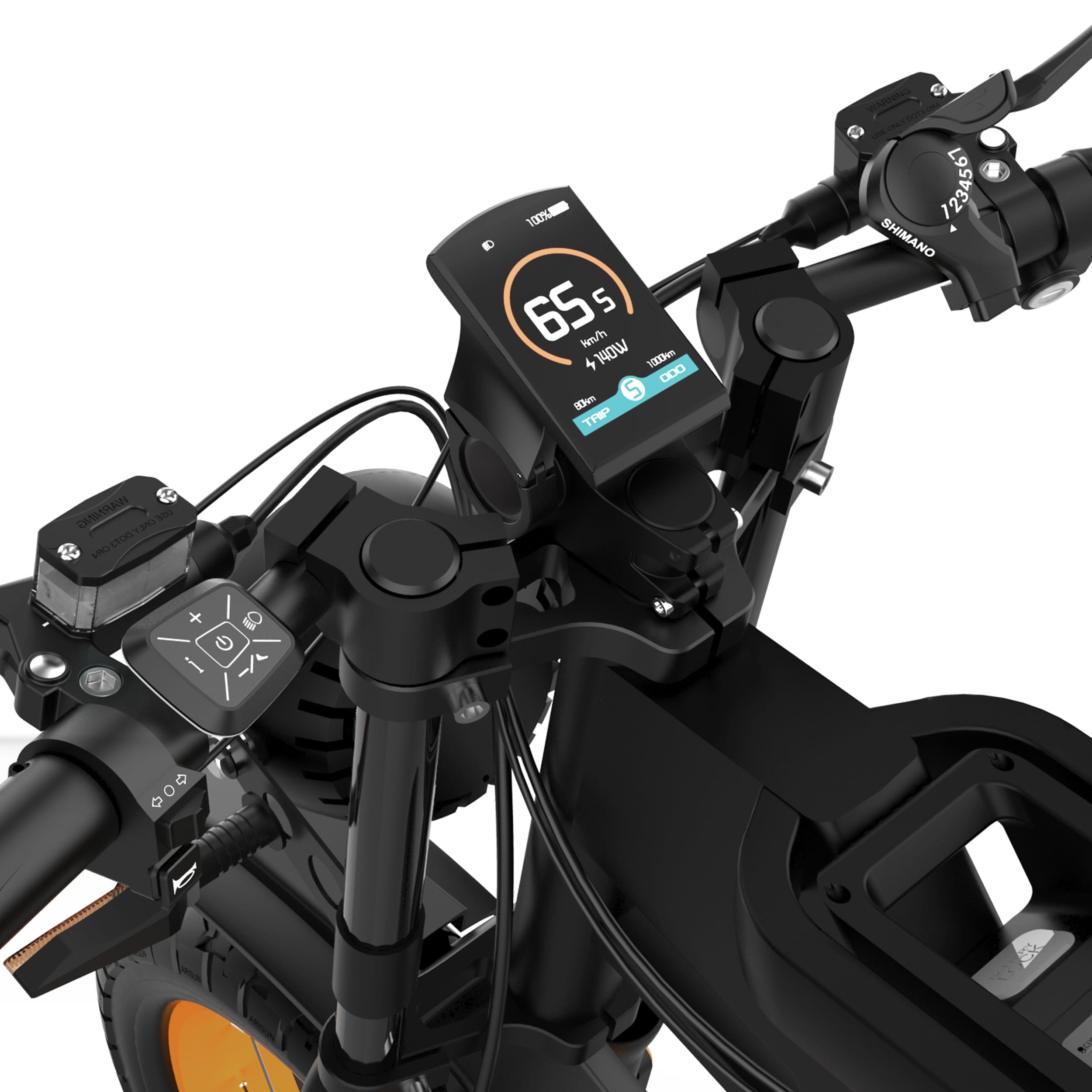

Display: Easy-Read LCD Display

Suspension & Brakes

Front Suspension: 20" Shoulder Shock Absorbing Fork – 80mm Travel

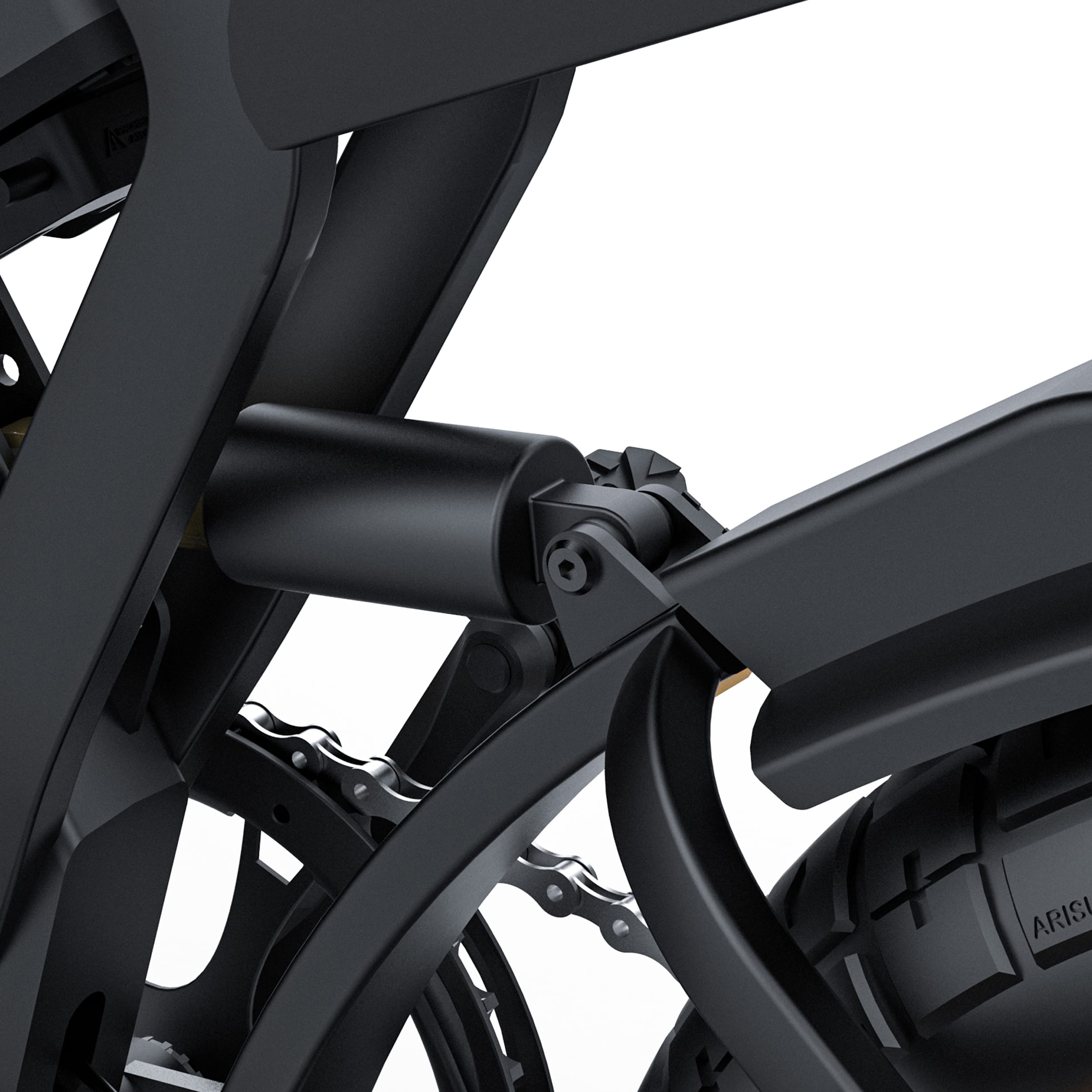

Rear Suspension: 850 lbs Spring Shock – 180mm Travel
Suspension Height Adjustment: 3 Rear Mounting Levels

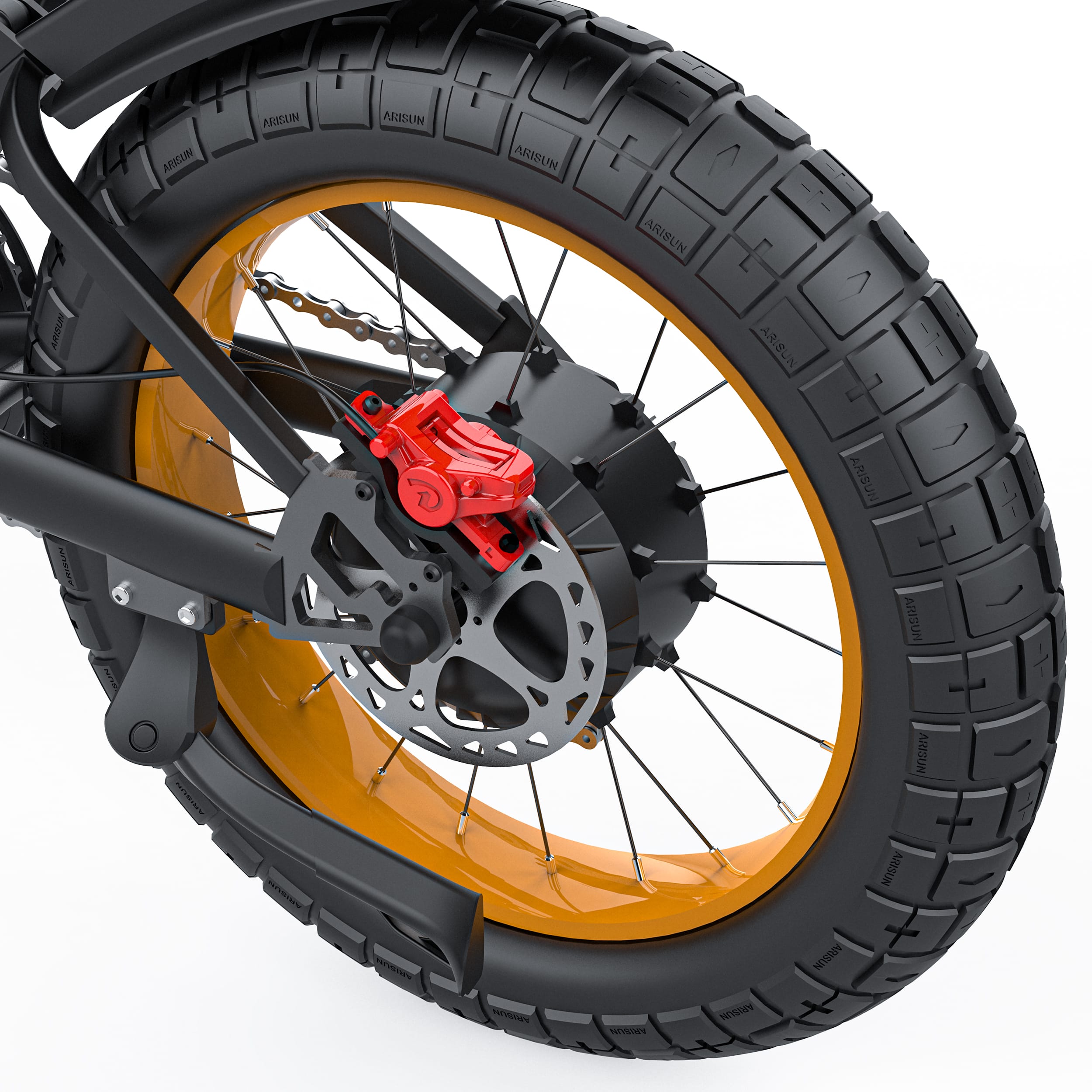

Brakes: Double Piston Hydraulic Oil Brakes with 180mm Stainless Discs (Front & Rear)

Build & Components

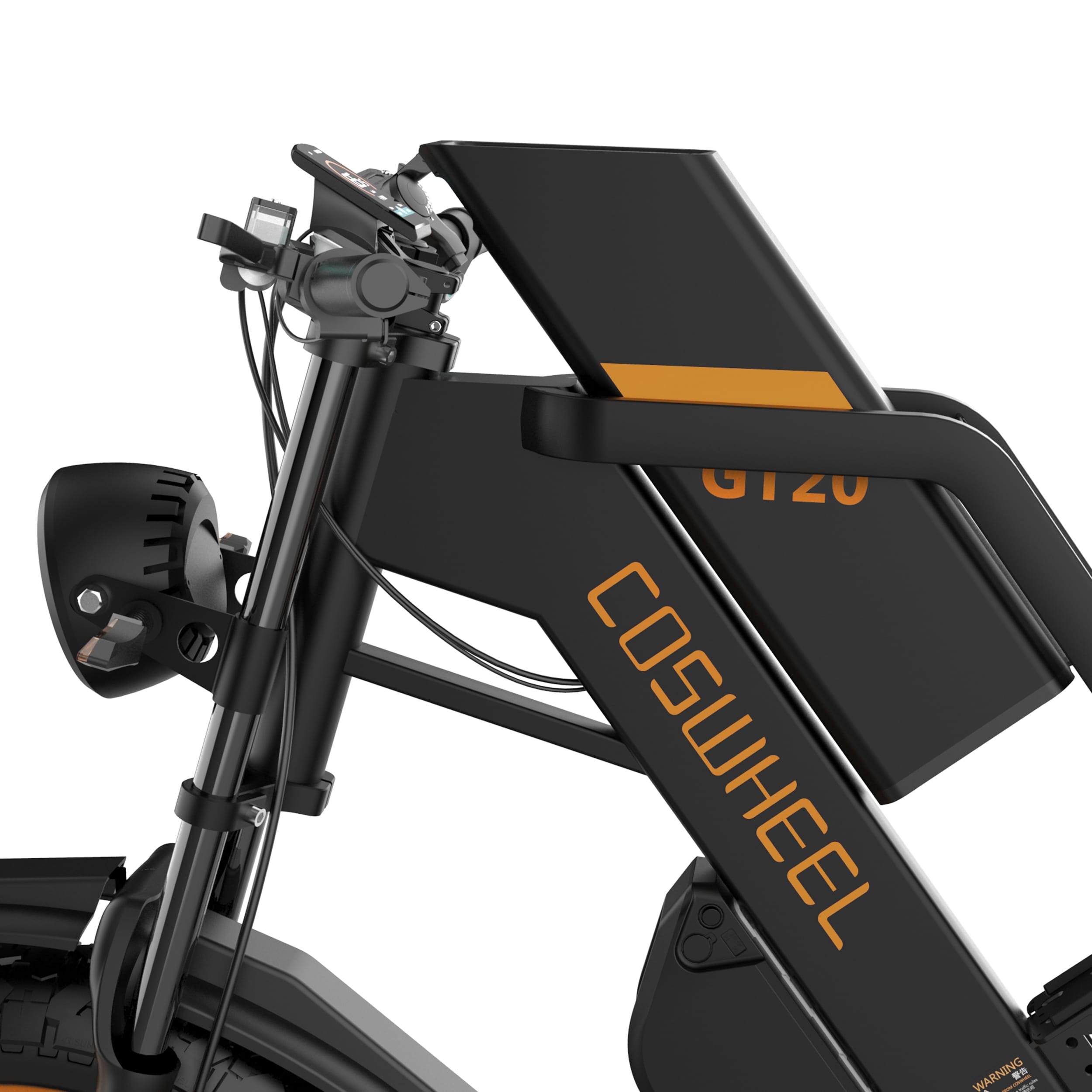

Frame: Hydroformed Triple-Butted 6061-T6 Aluminum Alloy
Tires: ARISUN Off-Road 20" × 4.0" A820 60TPI + Meimeng Tire + PVC Line
Lighting:

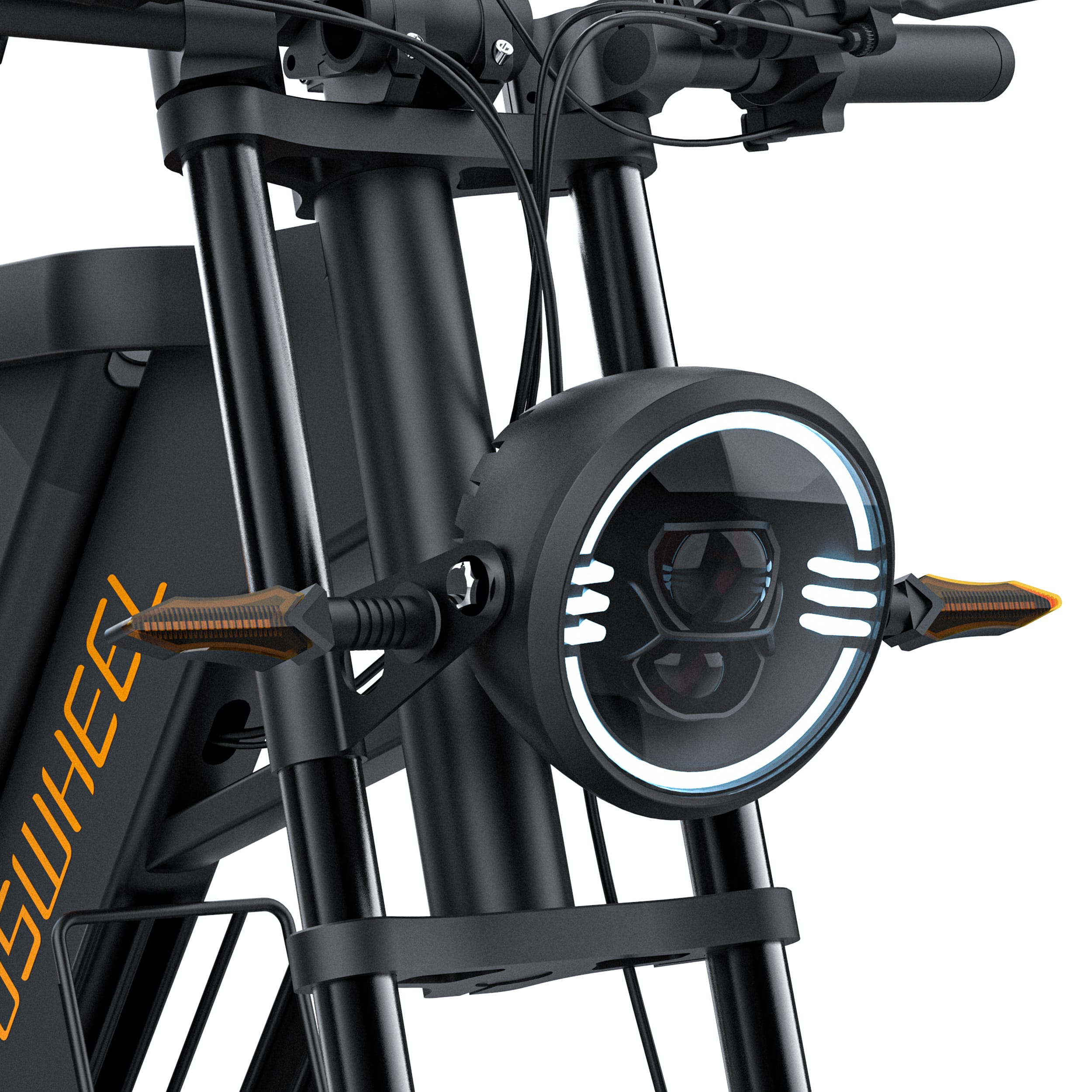

- Classic Angel Eye Headlight (120 LUX)

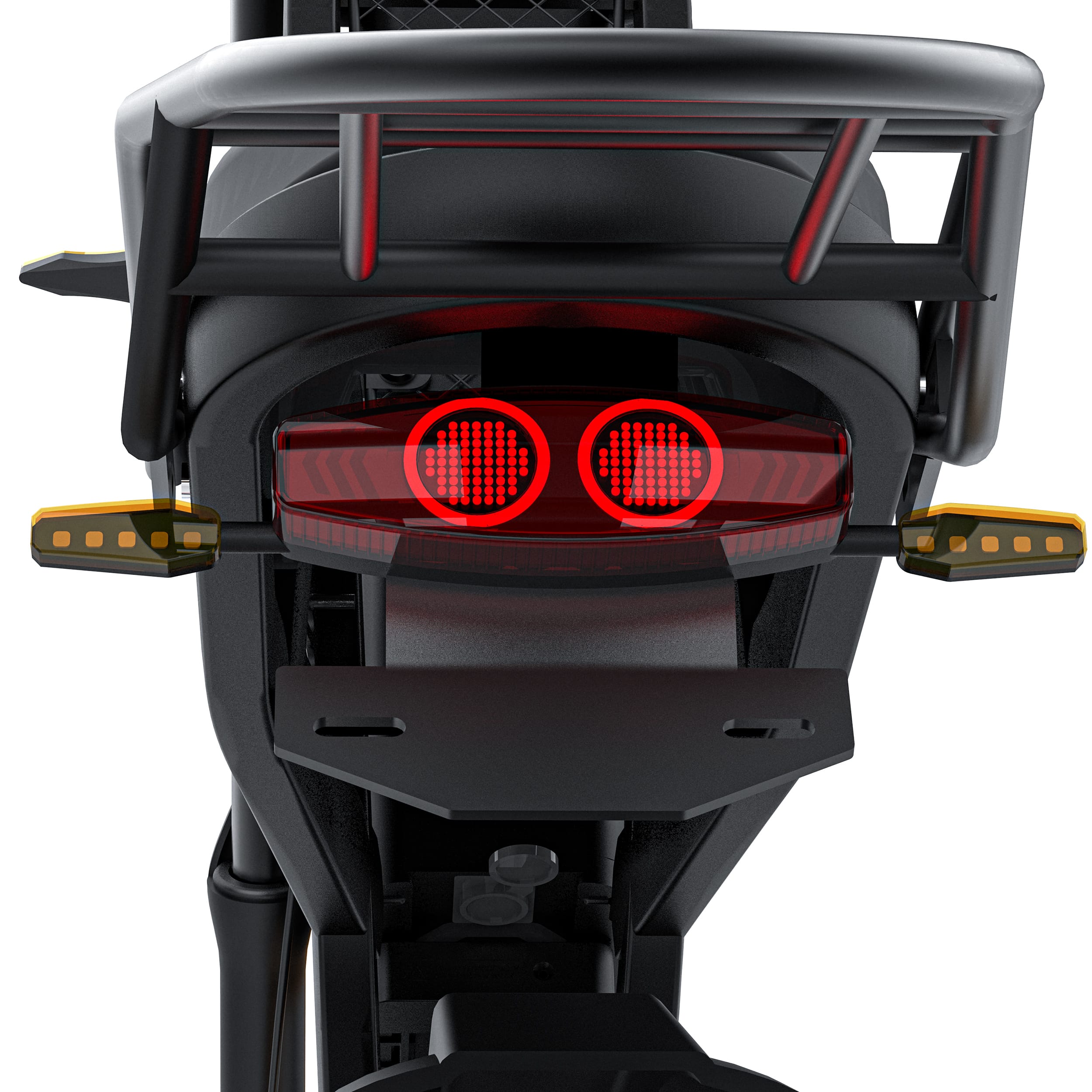

- Rear LED Taillight
- Flowing Turn Signals

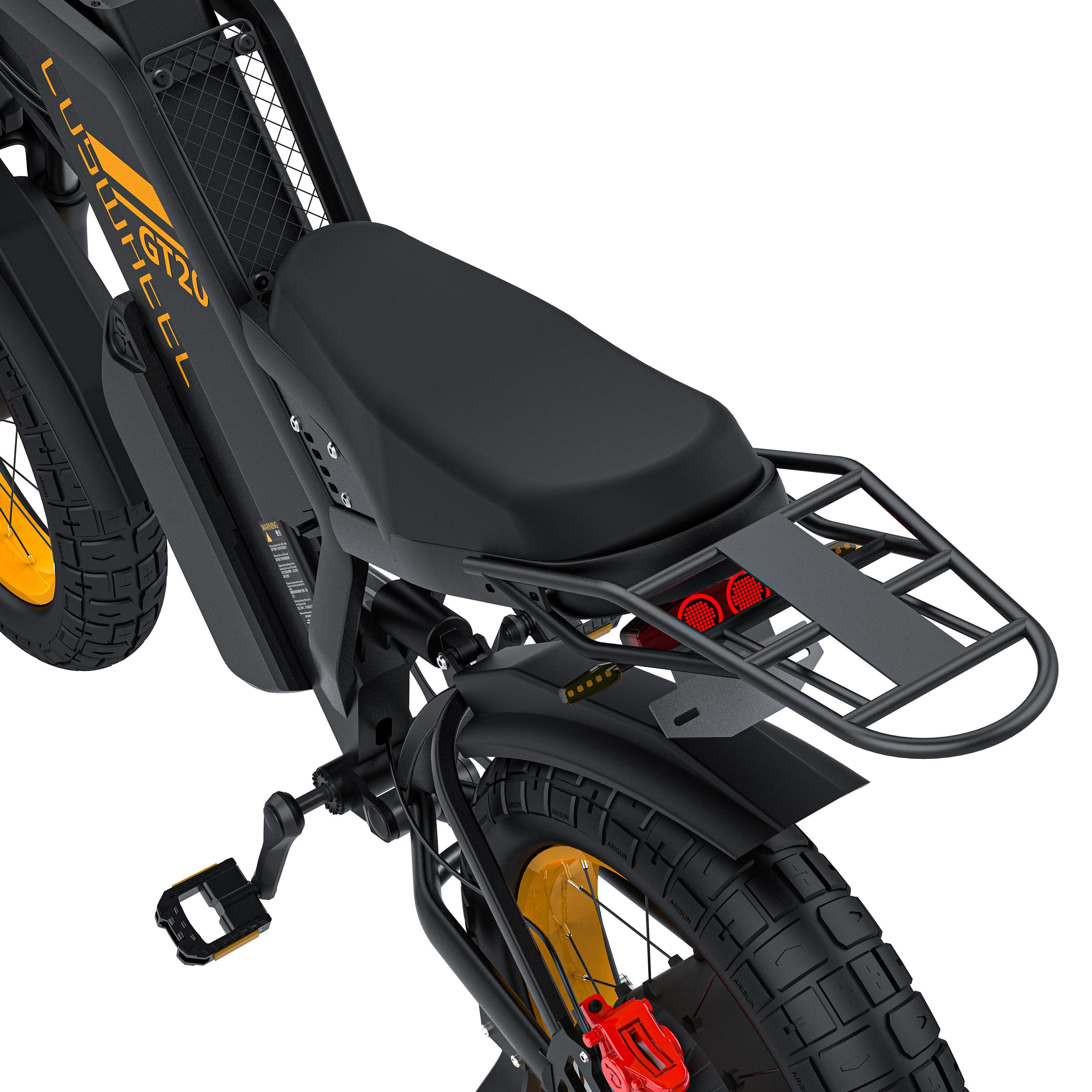

Rear Rack: Included
Rearview Mirror: Included
Chain: Waterproof, Rust-Proof Silver-White
Crankset: 46T 7-Speed ED Tooth Plate with Double Cover Chain – Reduces risk of chain drops
Derailleur: Shimano 7-Speed
Pedals: Aluminum Alloy with Reflectors
Handlebars: Split, φ32 φ22, Sand Black

Fit & Dimensions

Rider Height Compatibility: 5'1" to 6'5"
Seat Height: 32.6" (83 cm)
Bike Height: 41.7" (106 cm)
Wheelbase: 47.8" (121.5 cm)
Handlebar Width: 27.2" (69 cm)
Bike Weight: ≥99 lbs (45 kg, with battery)
Max Load: 330 lbs (150 kg)
Safe Load: 265 lbs (120 kg)
Overall Size: 70.9" × 27.2" × 41.7" (180 × 69 × 106 cm)
Package Size: 59.4" × 13.8" × 36.2" (151 × 35 × 92 cm)

Key Highlights

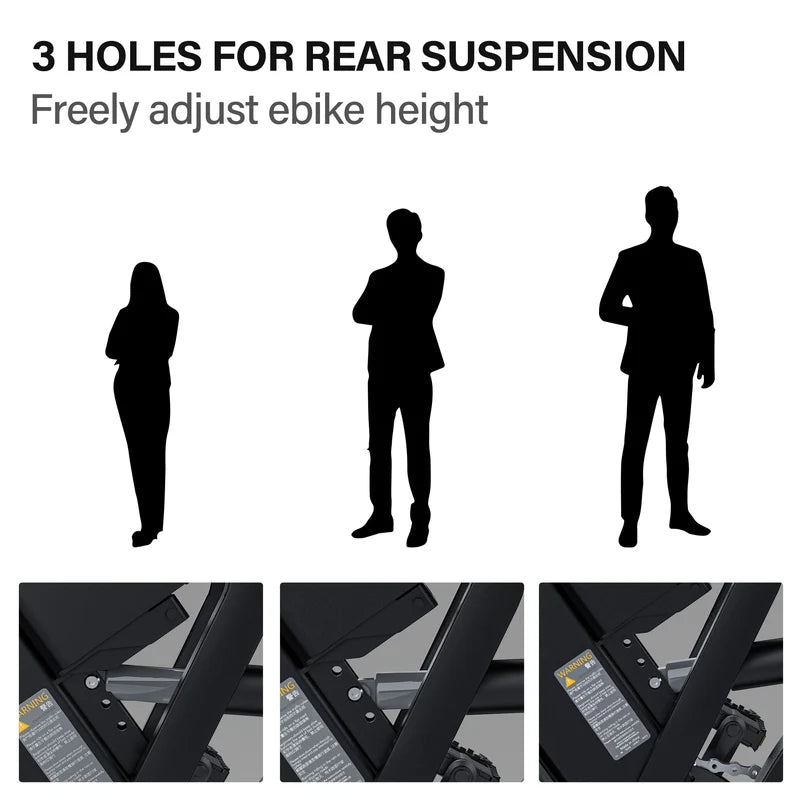

01 – 3-Level Adjustable Rear Suspension
Customize your ride height for comfort and terrain.

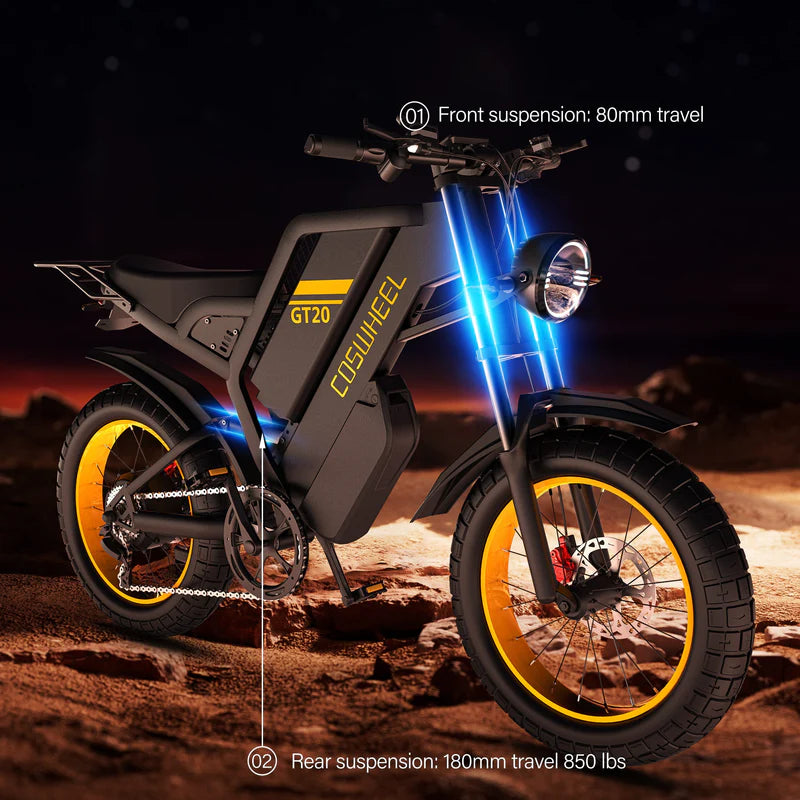

02 – Full Suspension System
80mm front and 180mm rear travel with 850 lb support.

03 – Hydraulic Braking System
Double piston hydraulic brakes with 180mm discs ensure safety.

04 – Standard Rear Rack + Mirror
Ready for cargo and visibility.

05 – Waterproof Chain & Double Chain Cover
Enhanced safety and reduced wear.

06 – Bright & Functional Lights
Front headlight, LED taillight, and turn signals for visibility.

07 – Tested Aluminum Frame
Over 10,000 collision tests passed—strong and durable.
