Beecool Bikes Bee Ranger Max

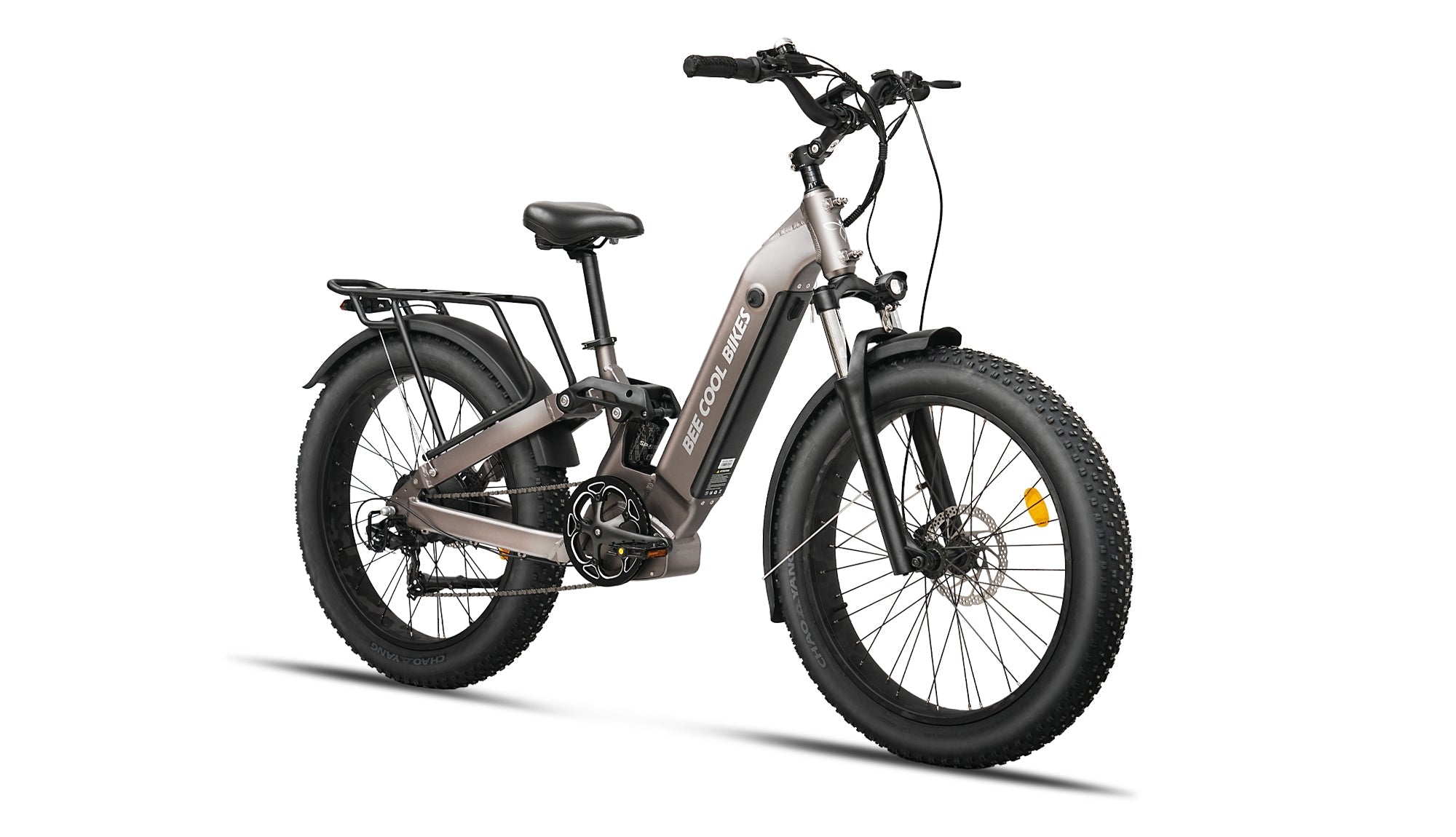

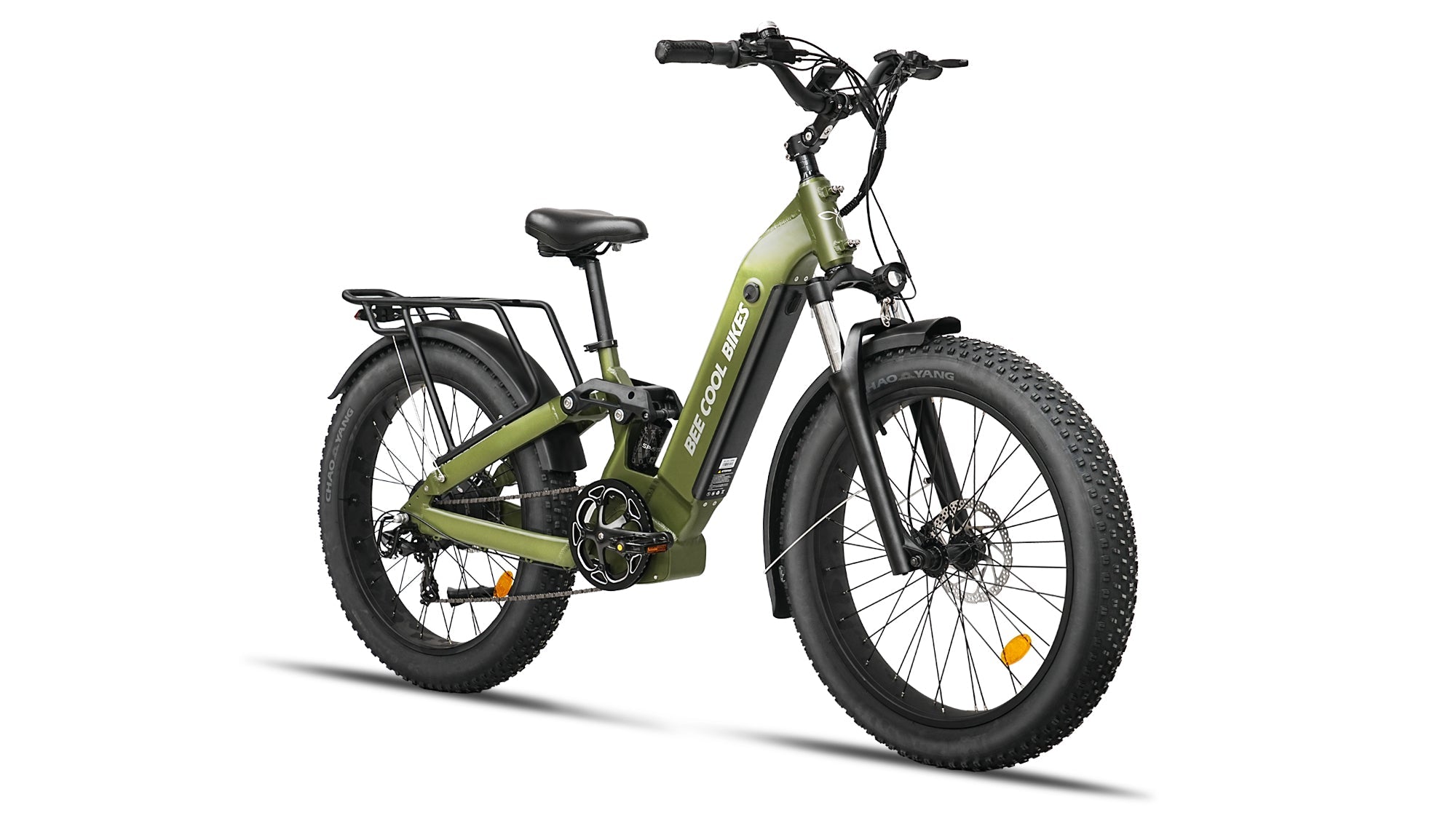

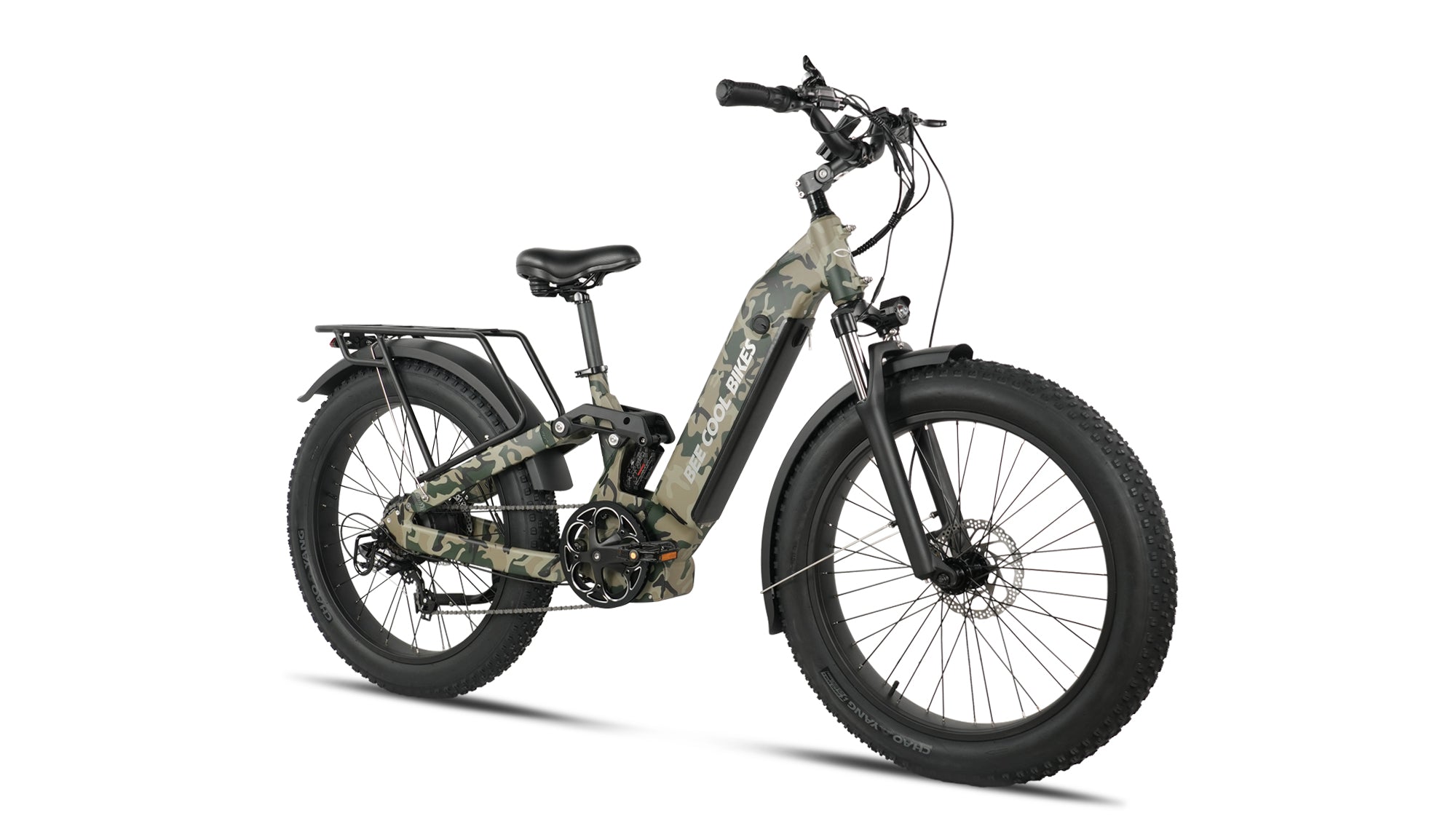

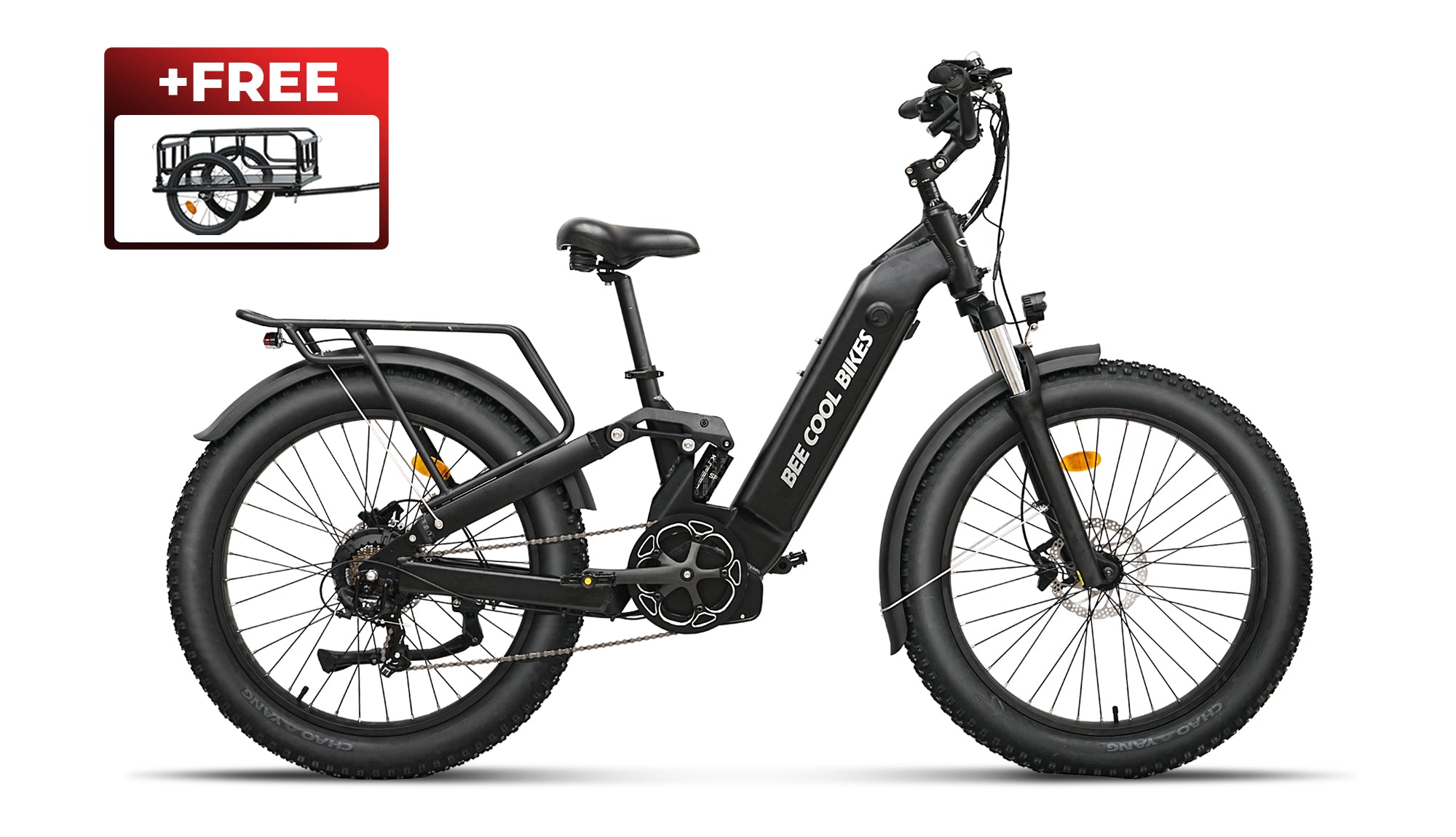

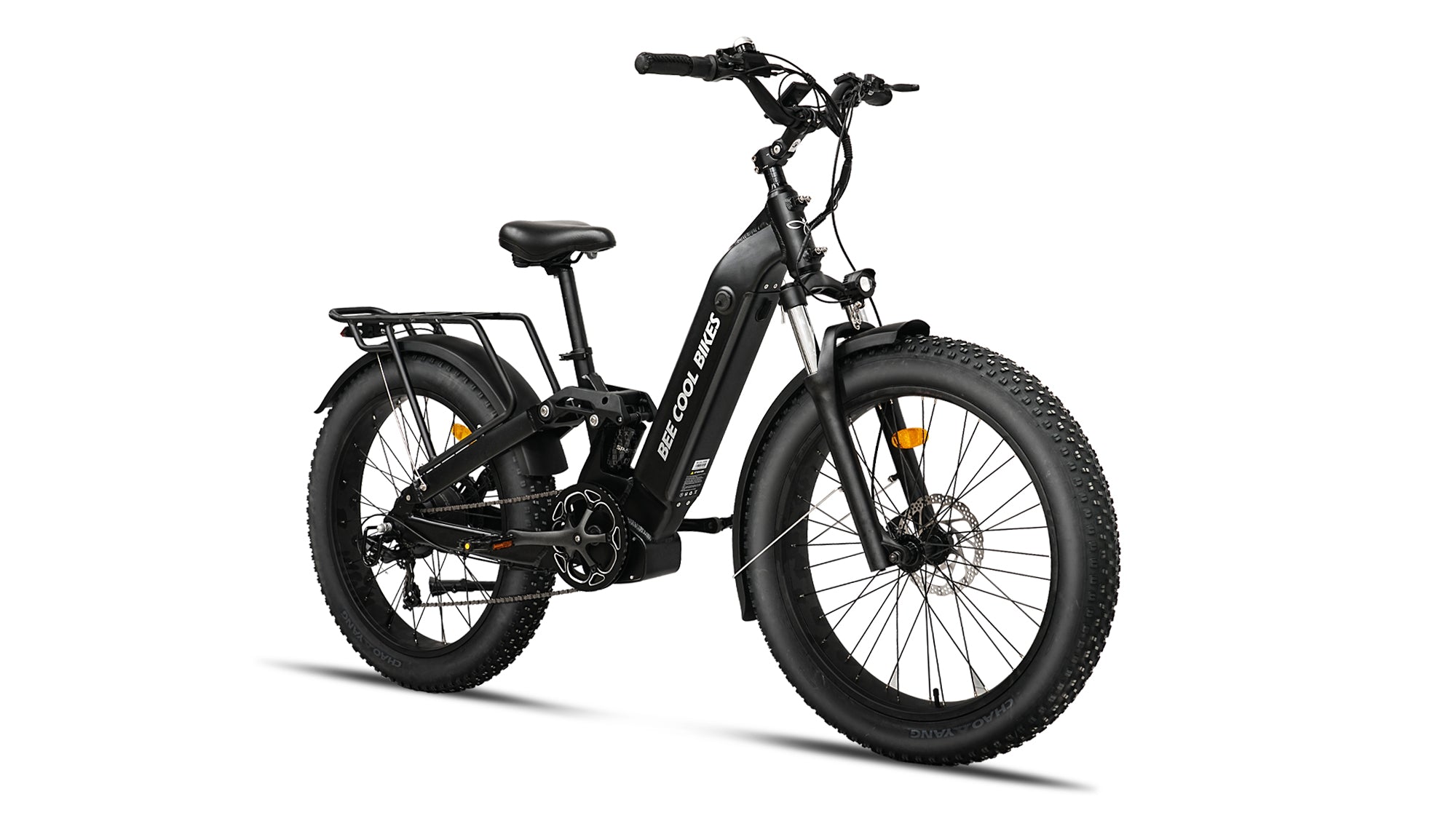

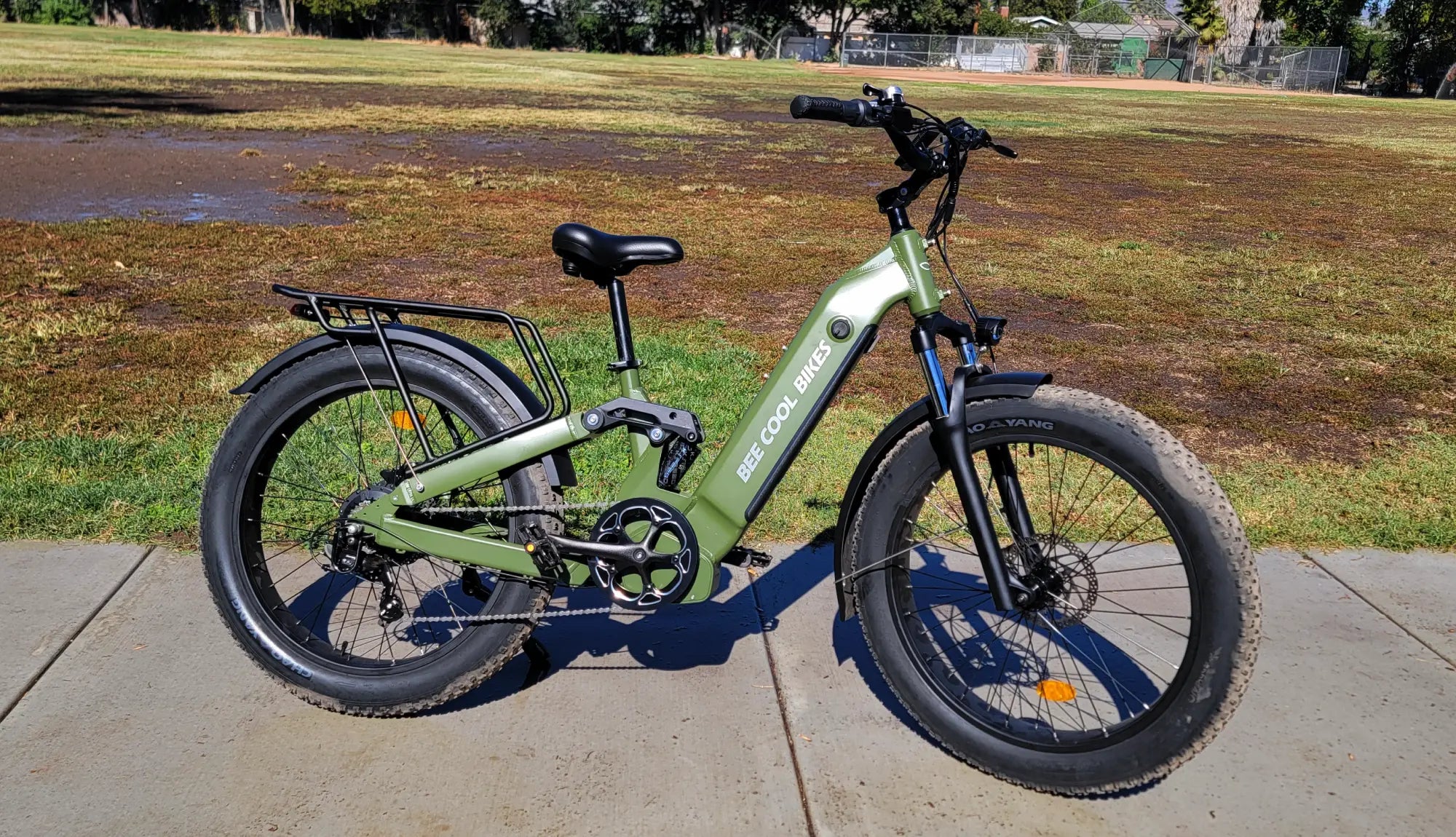

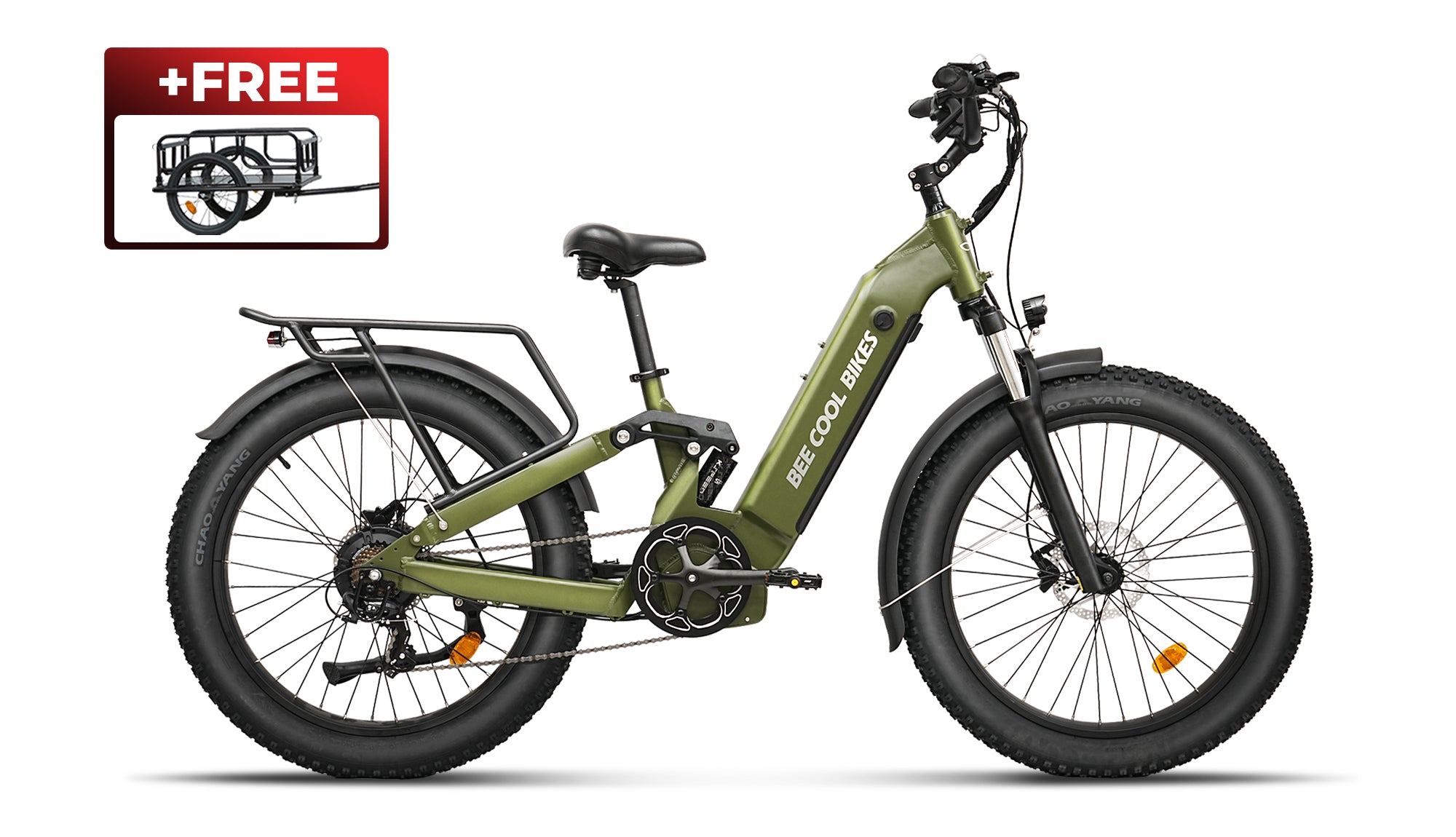

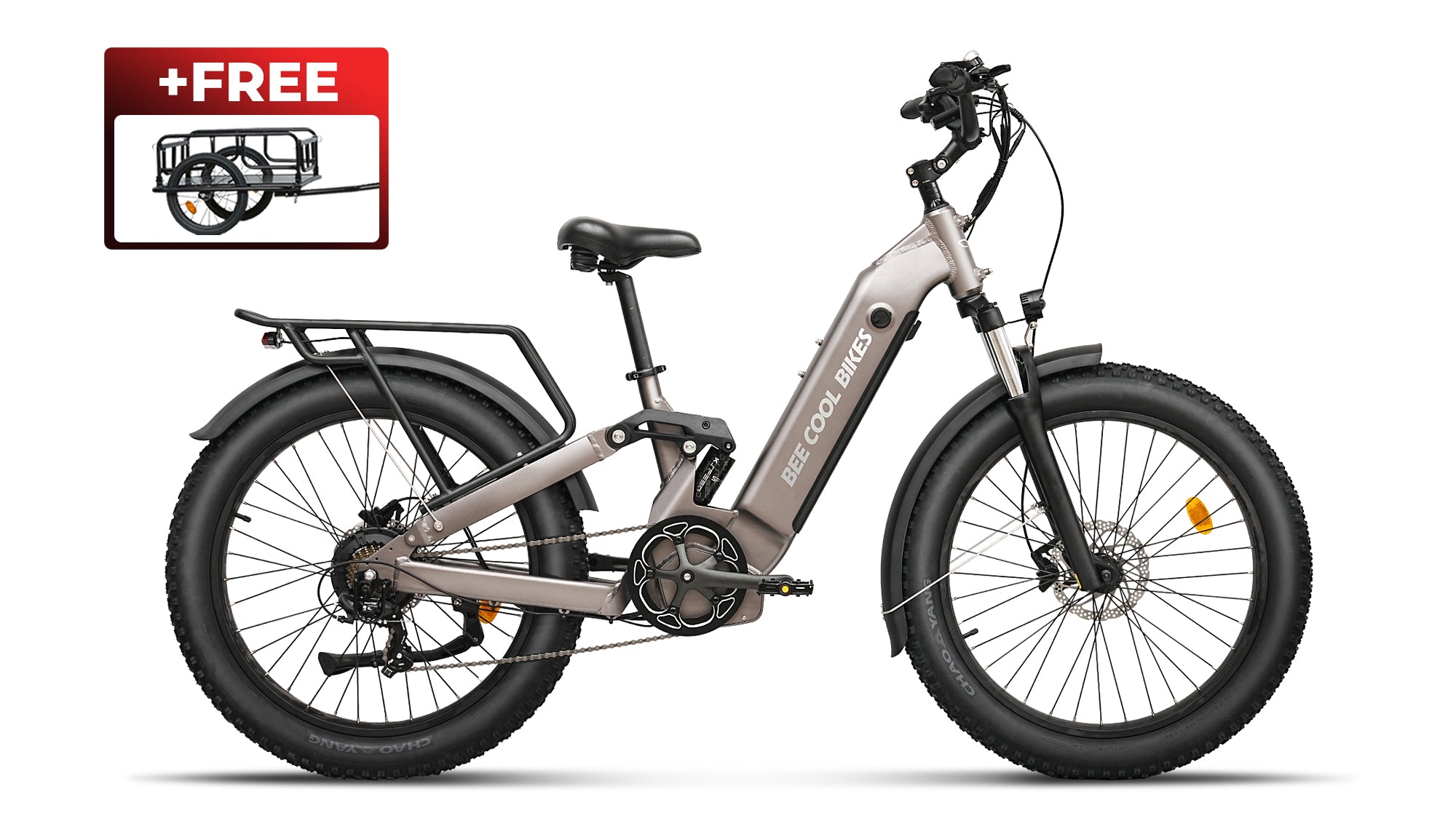

Bee Ranger Max – High-Powered, Full-Suspension Adventure eBike

Introducing the Bee Ranger Max, BeeCool Bikes' latest all-terrain electric powerhouse. Designed for serious performance and maximum comfort, this full-suspension eBike features a 1000W motor (peaking to 1300W) with 110Nm of torque, a hidden 48V 20Ah battery, and hydraulic disc brakes — giving you the confidence to dominate any landscape, from steep hills to sandy trails.

Key Highlights:

• 48V 20Ah (21700 cell) Battery: Over 80 miles range with pedal assist, or 60 miles throttle-only

• 1000W Hub Motor (1300W Peak): Delivers 110Nm of torque for next-level power

• Max Speed: 28+ mph (unlockable)

• 26" x 4" Fat Tires: Ride with stability and traction across all terrains

• FPR™ Rear Suspension + Hydraulic Fork: Full-suspension system with Force Point Reinforced tech

• Dual 180mm Hydraulic Disc Brakes: Strong and responsive stopping power

• Color Display with USB Port: Brighter, smarter interface with real-time data

• Shimano 7-Speed Drivetrain: Smooth shifting and control across all speeds

• Advanced Lighting System: High-beam 300lm headlight + integrated brake/signal rear light

• 400 lb Payload Capacity: Built tough for riders and their gear

• Flat-Weld Aluminum Frame: Sleek, strong, and ready for the elements

Smart Features for Everyday Riding

• Color LCD Display: View speed, PAS level, battery life, odometer, trip info, and more

• USB Charging Port: Charge mobile devices while you ride

• Cadence Sensor PAS: 5 levels of pedal assist with smooth engagement

• All-Steel Chain Sprocket: Reinforced durability for off-road demands

• Integrated Rear Light: Includes night light, brake light, and turn signals

• Hydraulic Suspension Fork: 120mm travel with lockout and preload adjust

Specifications

Motor & Battery:

• Motor: 1000W brushless geared hub motor (1300W peak, 110Nm torque)

• Battery: 48V 20Ah Lithium-ion, 21700 cells (900 charge cycles)

• Controller: 48V 25A

• Charger: 48V Smart Charger, 100V–240V compatible

• Throttle: Half-twist throttle

• Pedal Assist: 5 levels with 12-magnet cadence sensor

Drivetrain:

• Crankset: 48T, 170mm dual-sided aluminum bash guard

• Freewheel: Shimano MF-TZ500, 7-speed (14–28T)

• Derailleur/Shifter: Shimano Tourney 7-speed / SL-TX50-7R thumb shifter

Brakes:

• Calipers: Didor dual hydraulic

• Rotors: RT56 180mm

• Levers: Comfort alloy levers with motor cutoff and integrated bell

• Pads: Sintered metal

Frame & Suspension:

• Frame: 6061 Aluminum, flat weld

• Fork: Adjustable hydraulic suspension fork, 120mm travel

• Rear Suspension: FPR™ (Force Point Reinforced) enclosed suspension

• Wheels/Tires: 26" x 4", TPI: 60, all-terrain fat tires

• Rims: Double wall, 36H

• Spokes: 12-gauge stainless steel, black

Comfort & Extras:

• Saddle: Plush with lift handle

• Grips: Ergonomic imitation leather

• Handlebar: Premium ergonomic, 28" width

• Seatpost: 250mm x 31.6mm, quick-release clamp

• Fenders: Front and rear included

• Rear Rack: Heavy-duty, 60 lb capacity

• Lights: 300lm front LED, rear integrated brake + signal

• Kickstand: Wide-foot aluminum

• USB Port: 5V, 1A output via display

• Wiring: Water-resistant connectors and harness

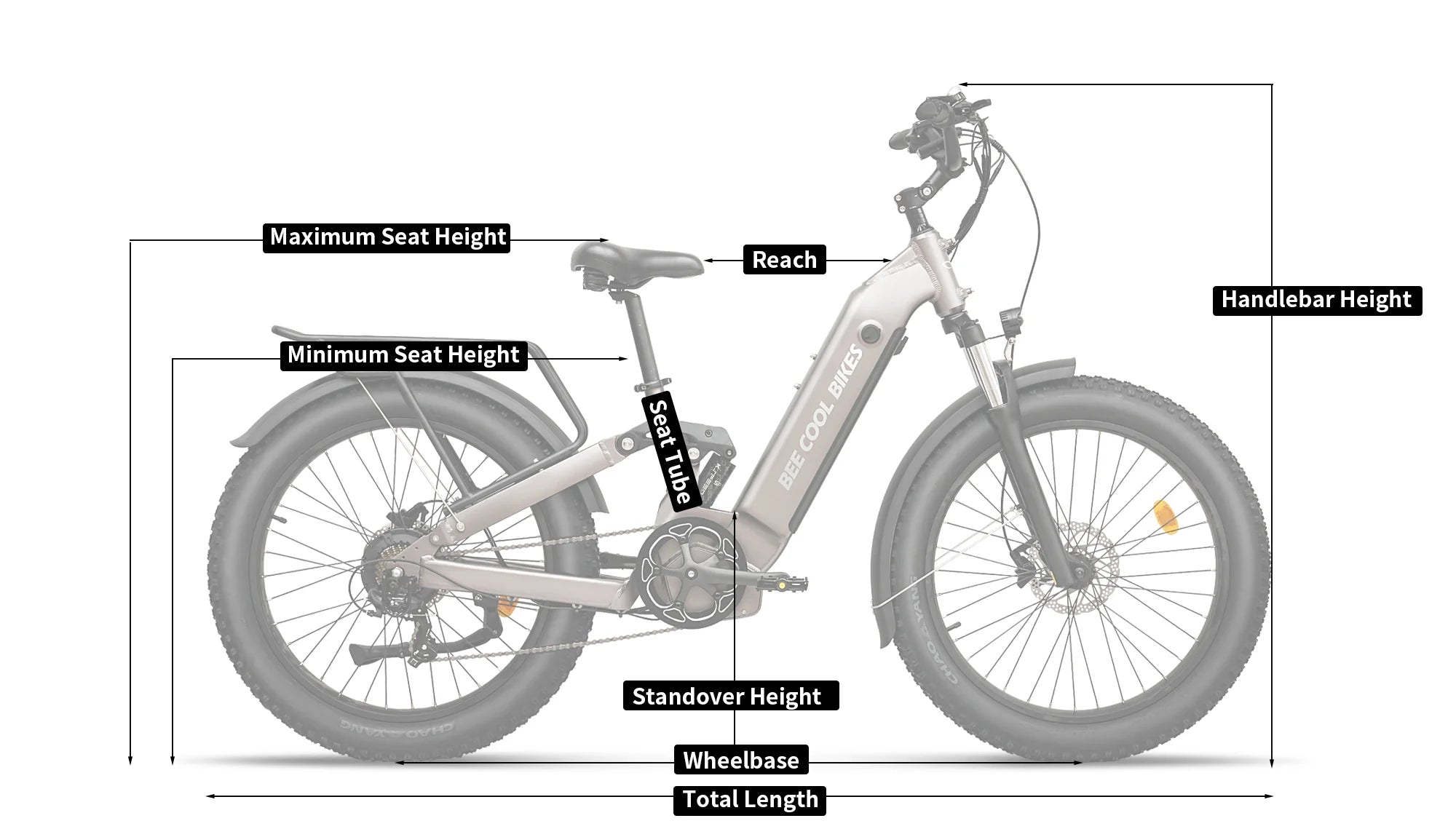

Size & Fit

• Rider Height Range: 5'3"–6'5"

• Total Weight: 78 lb (with rack, fenders, and battery)

• Total Length: 79"

• Wheelbase: 50"

• Standover Height: 29"

• Seat Height: 34"–38"

• Handlebar Height/Reach/Width: 48" / 25" / 28"

• Frame Size: 15"

• Seat Tube Length: 8.9"

• Seat Post Diameter: 31.8mm

• Crank Length: 69"

• Bottom Bracket Height: 14"

• Chain Stay: 19.68"

• Head Tube: 6.1"

What’s in the Box

• 1× Bee Ranger Max eBike (battery, rack & fenders included)

• 1× Smart Battery Charger

• 1× Tool Kit

• 1× User Manual

• 2× Pedals

Explore With Confidence. Ride With Power.
The Bee Ranger Max delivers extreme capability and comfort for riders who expect more from their eBike — more power, more range, and more performance. Ready for any terrain, anytime.
