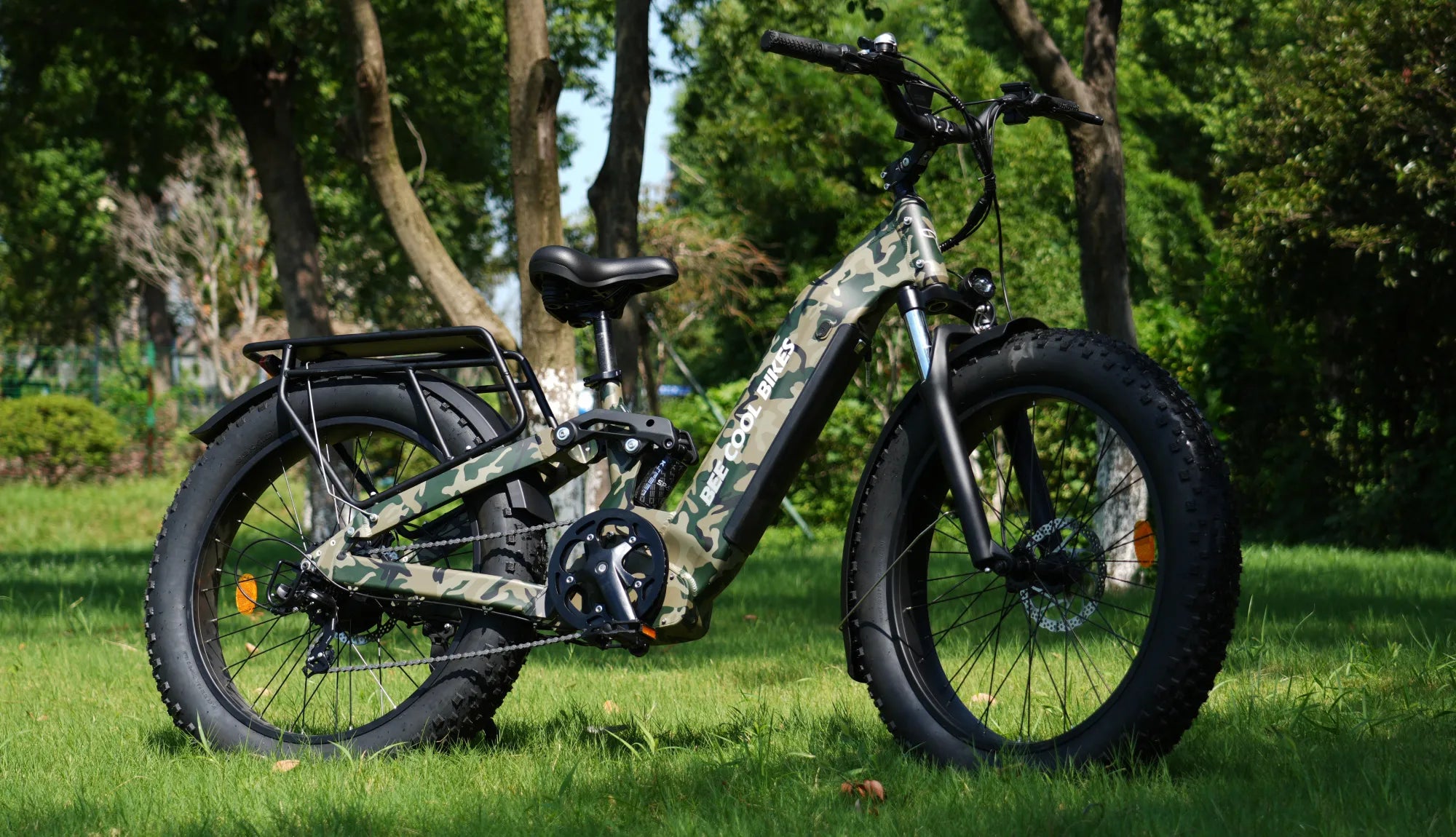

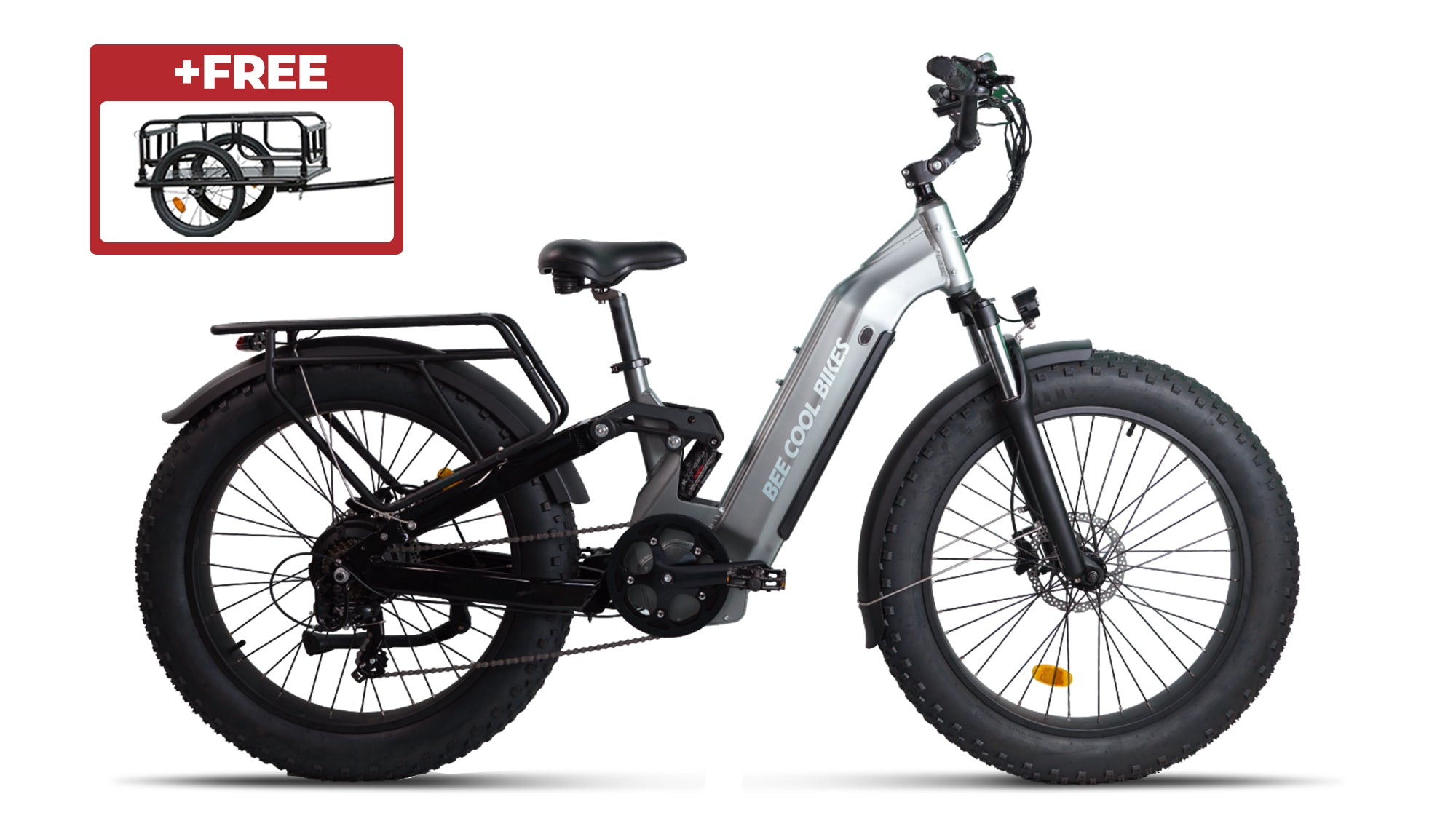

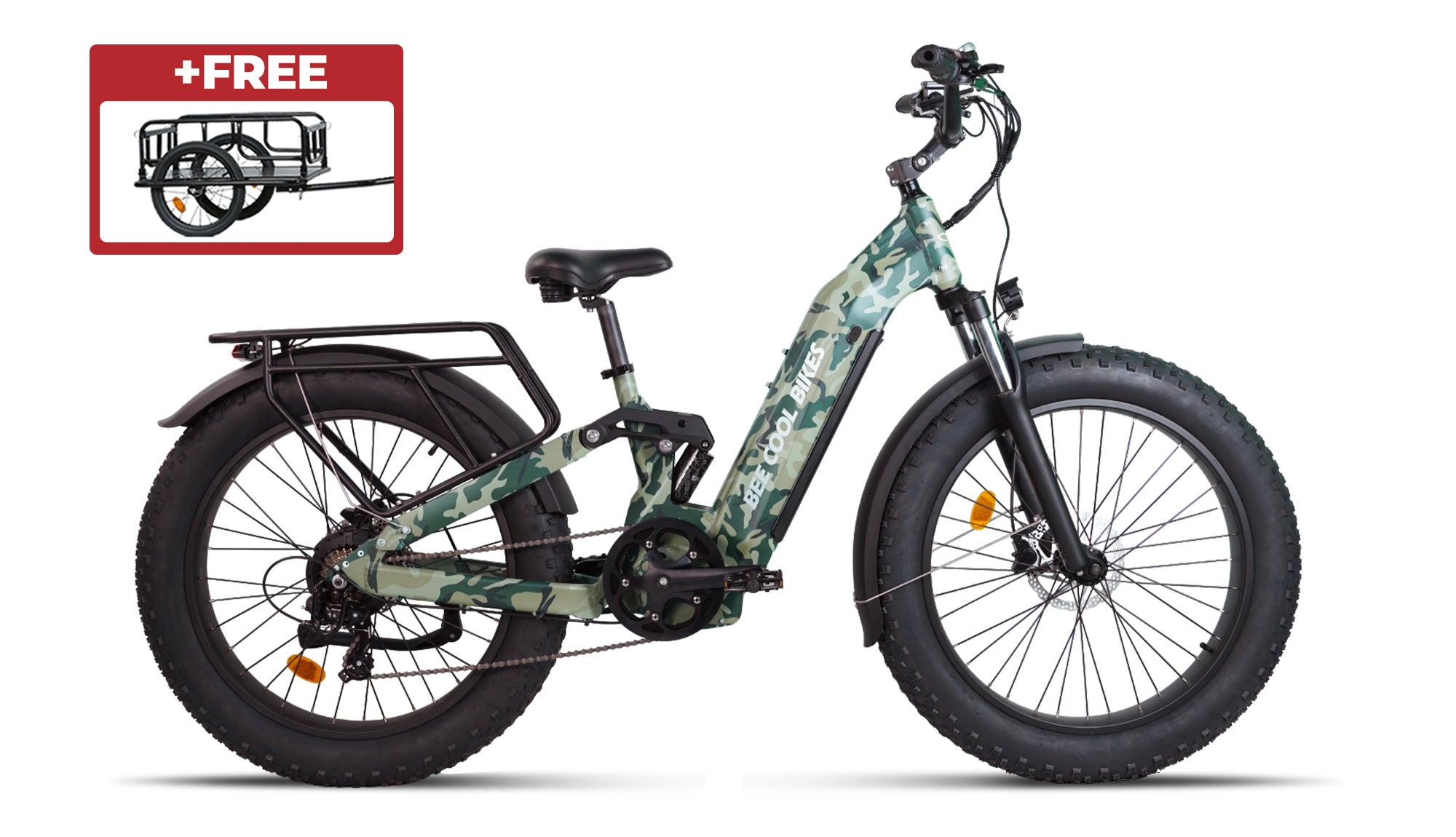

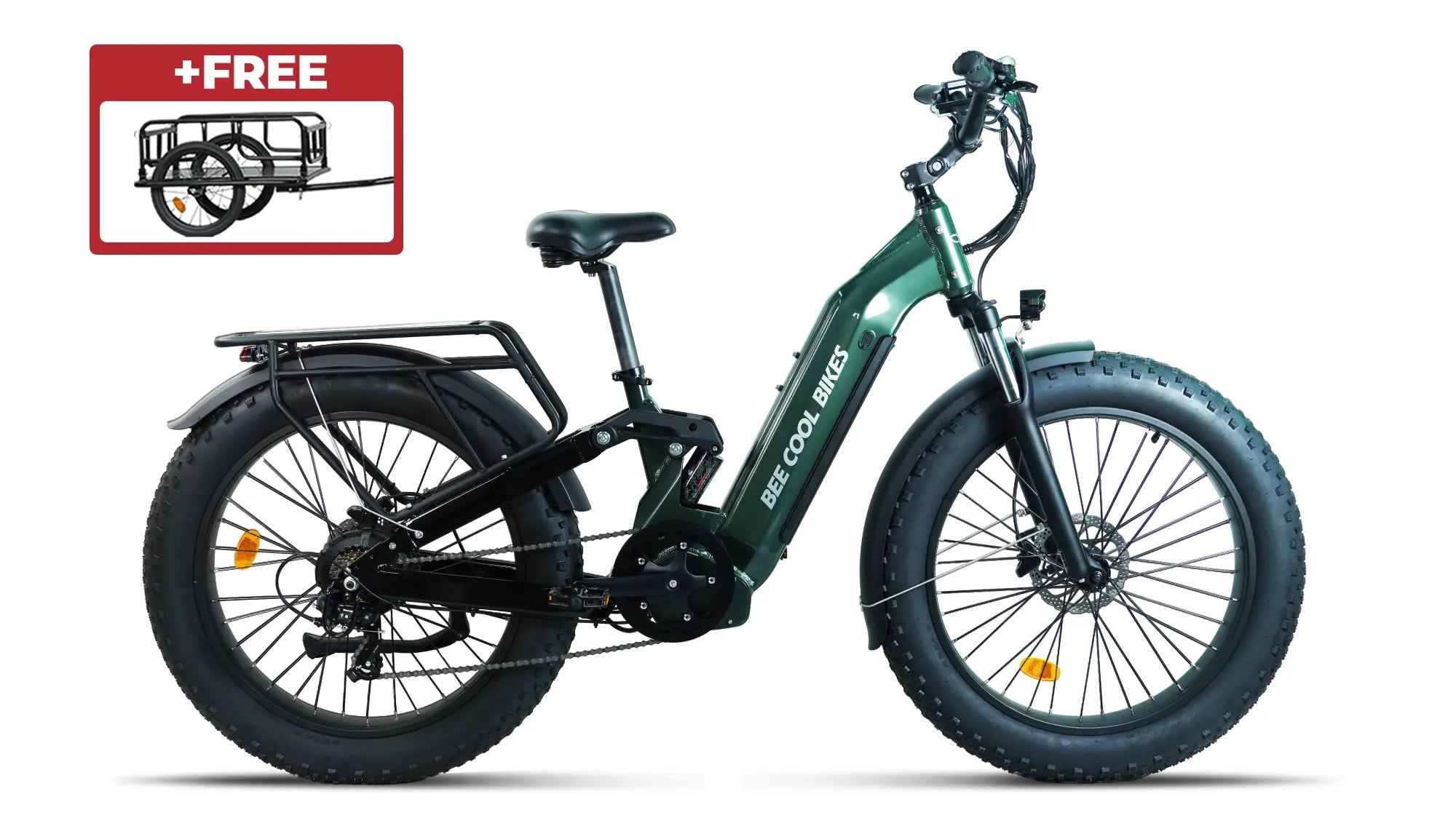

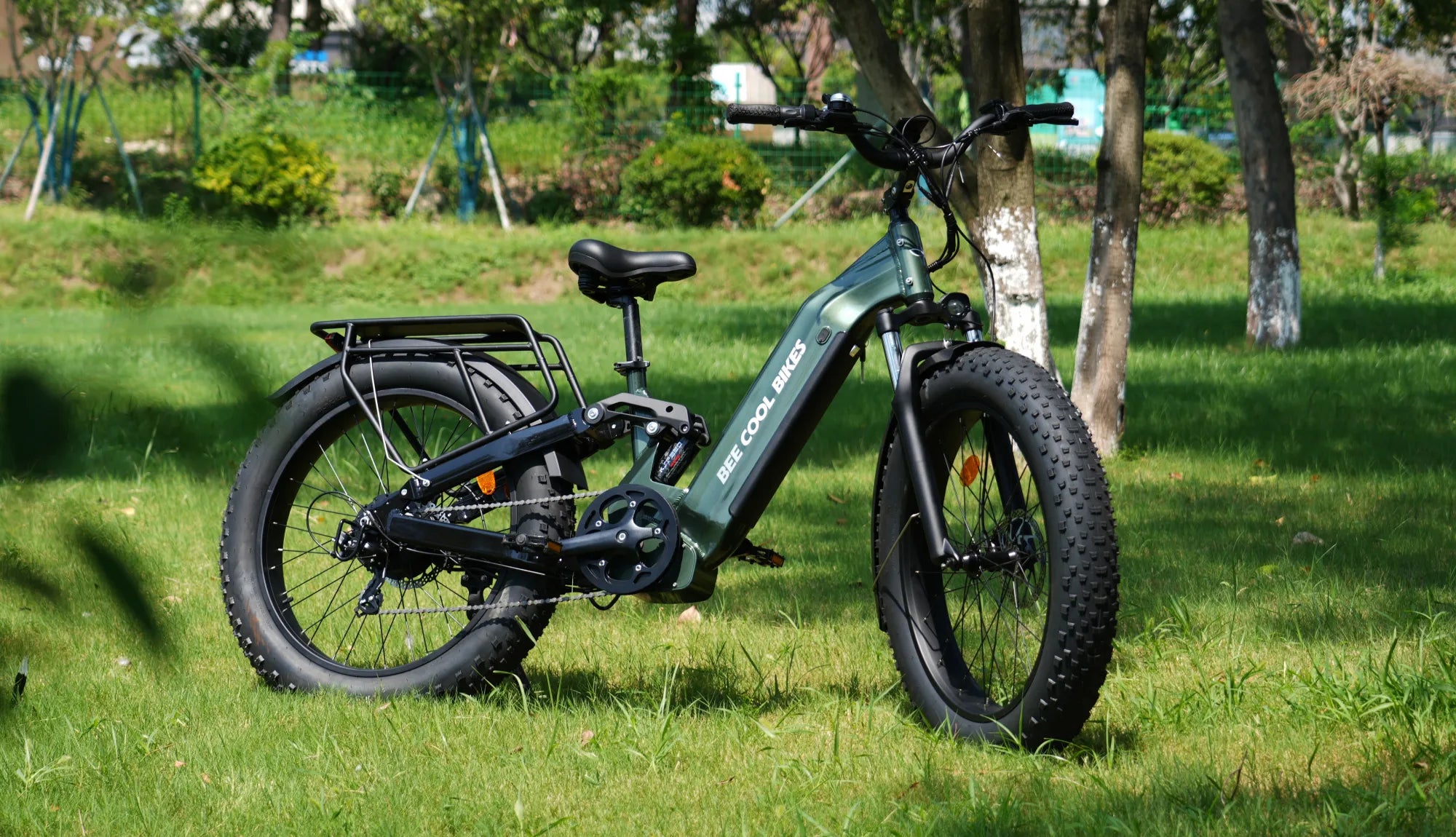

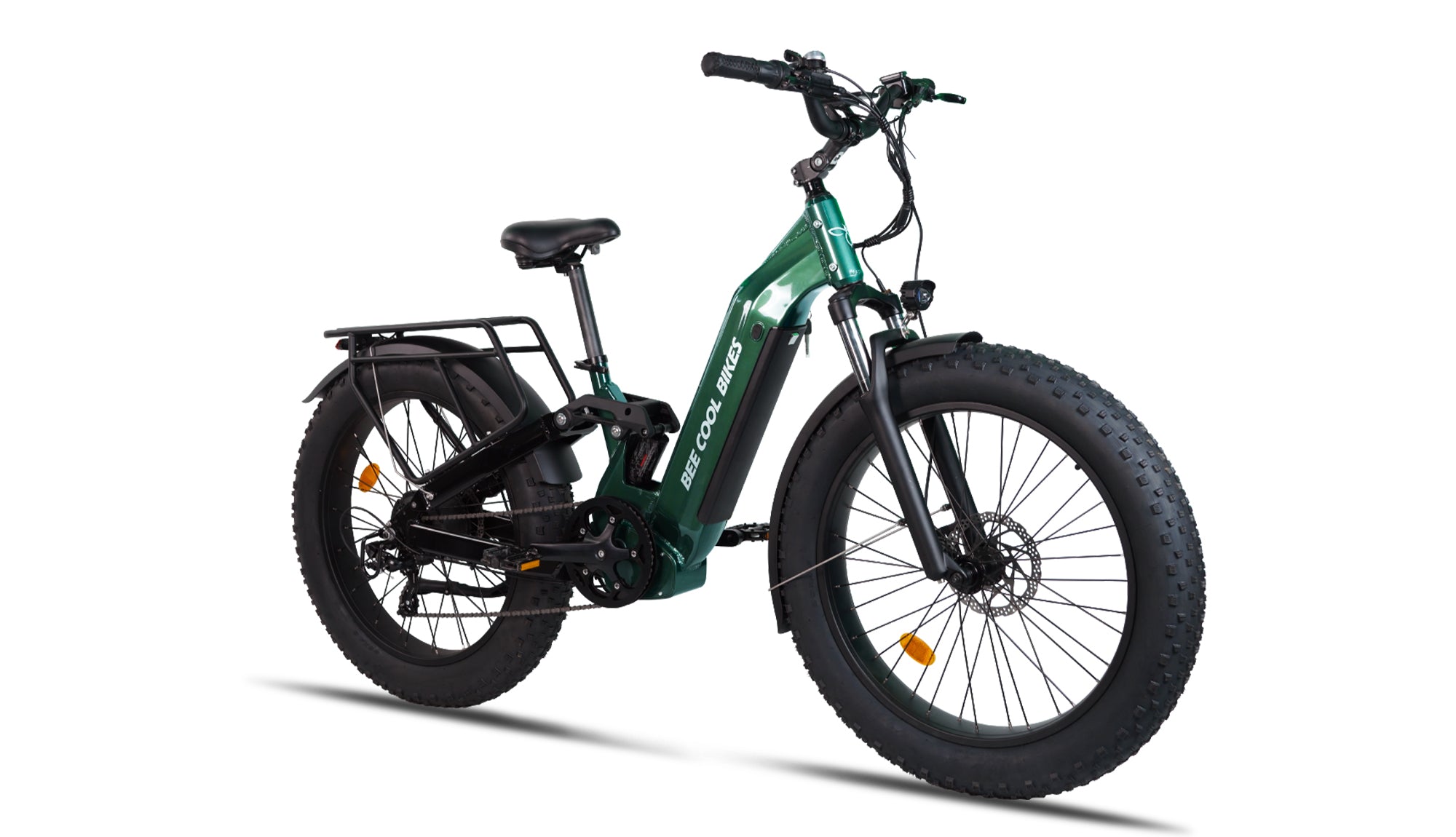

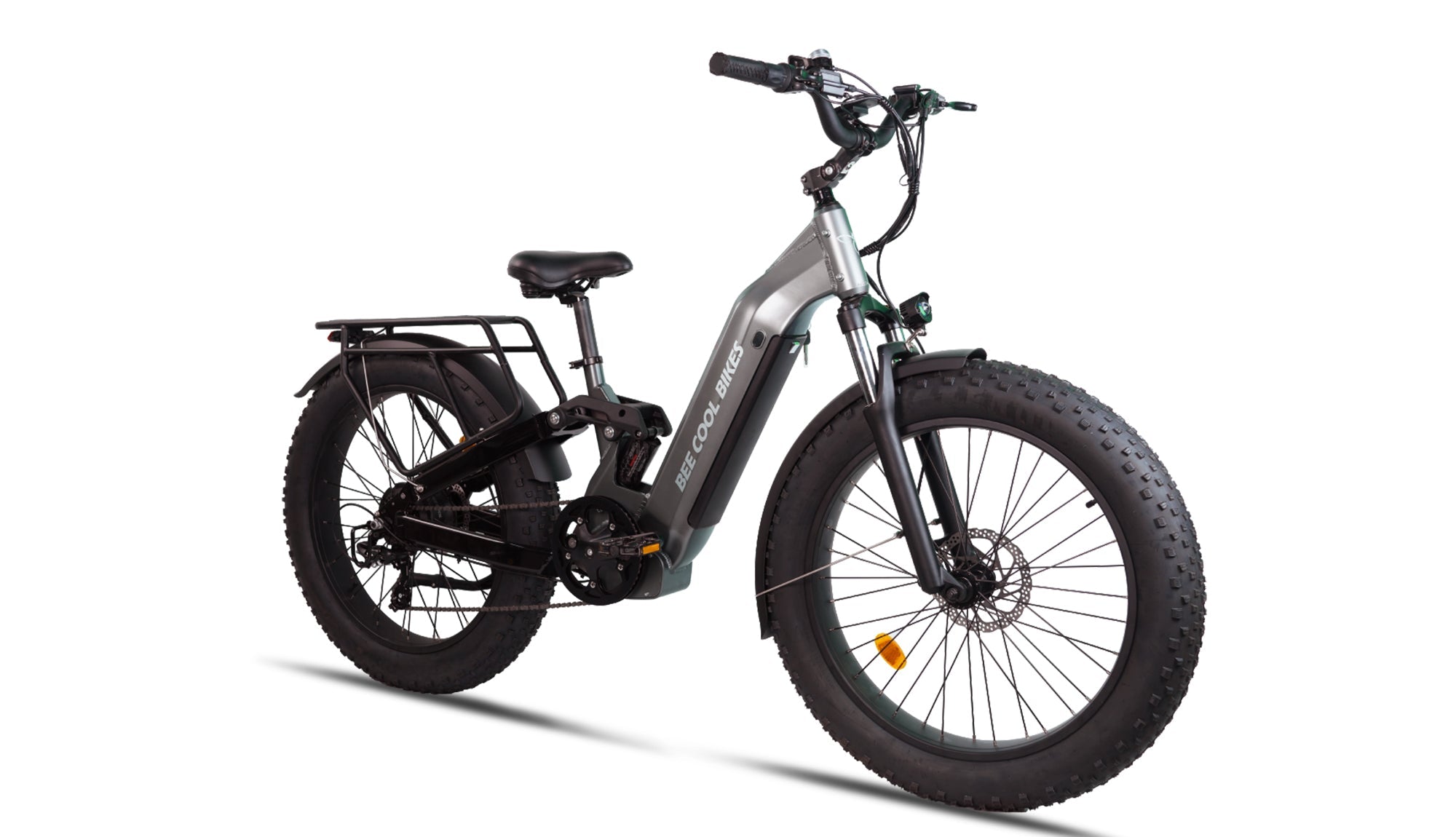

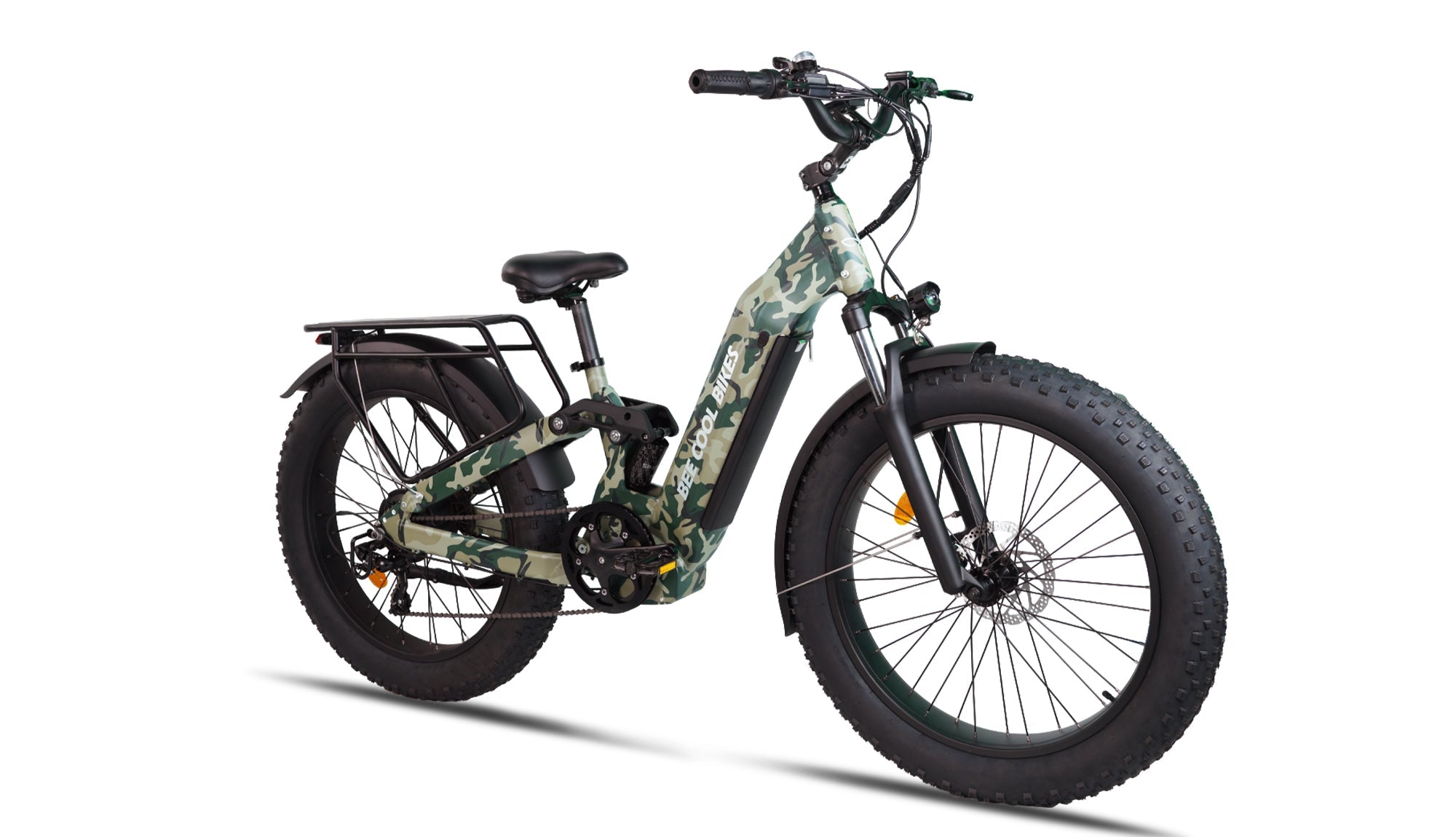

Bee Defender Step-Thru – BeeCool’s First Super Frame eBike

The Bee Defender Step-Thru is BeeCool’s first Super Frame eBike, engineered for riders who demand range, power, and comfort.

With a 48V 20Ah lithium-ion battery, it delivers 80+ miles per charge. The 1000W brushless geared hub motor (peaking at 1300W) puts out 110Nm torque, giving you the strength to climb hills and handle rugged terrain with ease.

The brand-new Horst link full suspension system, paired with 26” x 4.8” super fat tires, ensures control, comfort, and stability across all terrains — whether commuting, exploring, or trail riding. And thanks to its low step-thru frame, mounting and dismounting is easy for riders of all heights.

What’s in the Box

• 1 x Bee Defender Step-Thru (rear rack & fenders included)

• 1 x 48V 20Ah Battery

• 1 x Smart Charger

• 1 x Assembly Tools Kit

• 1 x User Manual

• 2 x Pedals

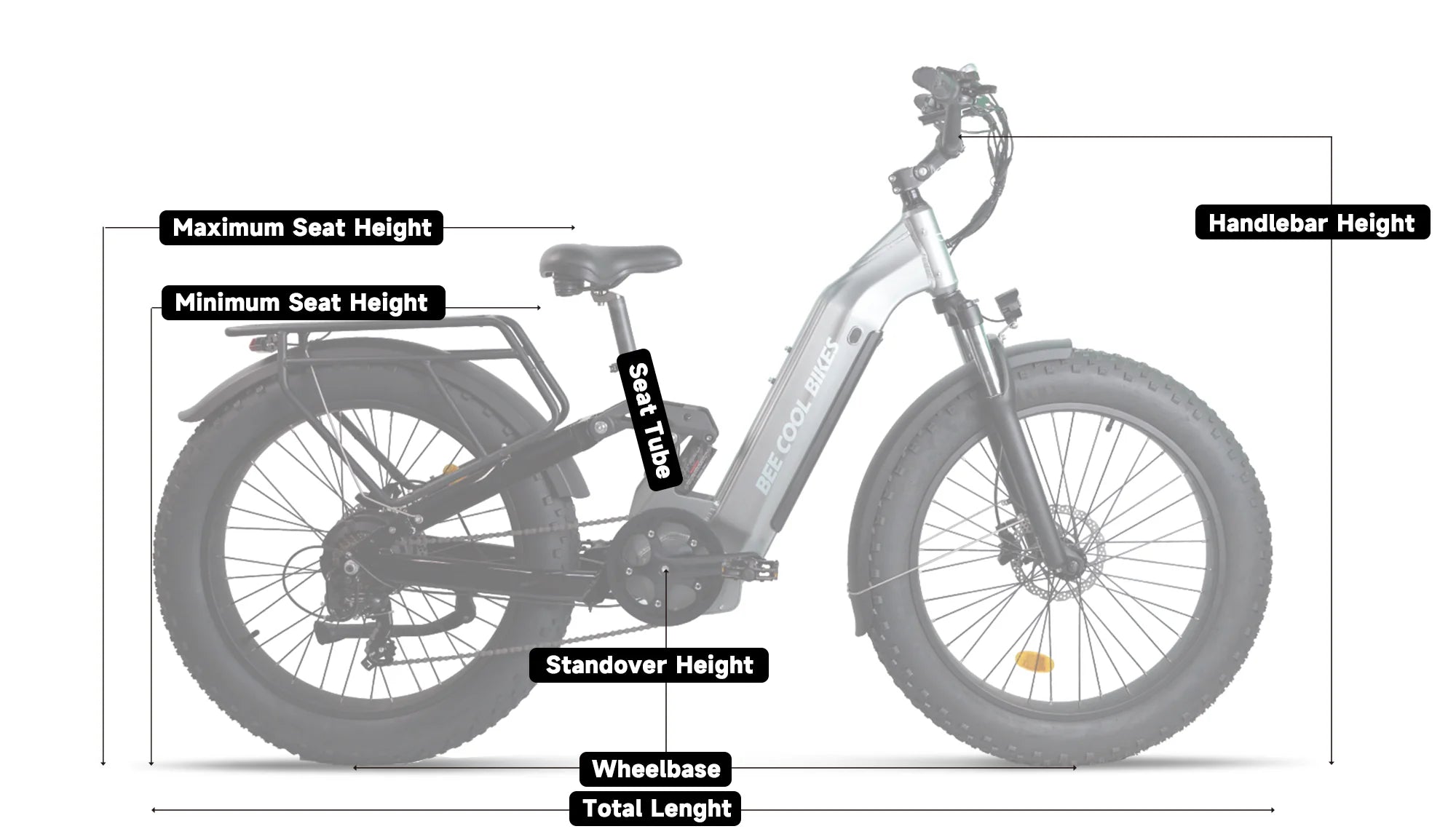

Geometry & Dimensions

• Bottom bracket height: 14.8"

• Chain stay: 18.1"

• Crank length: 7.5"

• Frame size: 15.7"

• Handlebar height: 47.2" | Reach: 18.1" | Width: 28.1"

• Head tube: 6.3"

• Seat height (min–max): 35" – 40.2"

• Seat post diameter: 31mm | Length: 8.9"

• Stand over height: 28.3"

• Top tube length: 20.9"

• Wheelbase: 49.2"

• Total length: 77.2"

• Weight: 103 lbs (with rack, fenders, and battery installed)

• Recommended rider height: 5’5” – 6’5”

Core Specifications

• Battery: 48V 20Ah (21700 Cells), rated for 900 charge cycles

• Motor: 1000W continuous / 1300W peak, 110Nm torque, 5:1 planetary gear reduction

• Controller: 48V, 25A

• Range: Up to 80+ miles

• Charger: 48V smart charger (100V–240V AC)

• Brakes: Didor dual-piston hydraulic calipers, sintered metal pads, RT56 180mm rotors

• Fork: Hydraulic, 120mm travel with lockout & preload adjustment

• Frame: 6061 Aluminum

• Drivetrain: Shimano 7-speed Tourney with SL-TX50-7R shifter & MF-TZ500 freewheel (14–28T)

• Crankset: 48T, 170mm forged alloy with dual-sided bash guard

• Pedal Assist: 5 levels with 12-cadence sensor

• Throttle: Half twist throttle

• Display: Color LCD with battery indicator, speedometer, odometer, trip, and PAS level

• Lights: 300lm LED headlight + integrated rear signal/brake light

• Saddle: Plush comfort seat with lifting handle

• Handlebar: Premium ergonomic with imitation leather grips

• Stem: Adjustable

• Pedals: Forged aluminum platform with CrMo axle & reflectors (9/16" threading)

• Rims & Spokes: Double wall, 36H rims with 12-gauge stainless steel spokes

• Tires: 26" x 4.8", TPI: 60

• Kickstand: Heavy-duty aluminum with wide foot

• Rack: Rear rack included (60 lb max payload)

• Wiring: Water-resistant connectors & harness

Why Choose the Bee Defender Step-Thru?

The Bee Defender is more than just an eBike — it’s a full-sized, full-suspension powerhouse. Built for riders who want comfort, confidence, and endurance, it’s ready for city streets, backroads, or weekend adventures. With its step-thru frame design, long-range battery, and robust motor system, the Bee Defender Step-Thru delivers performance without compromise.
