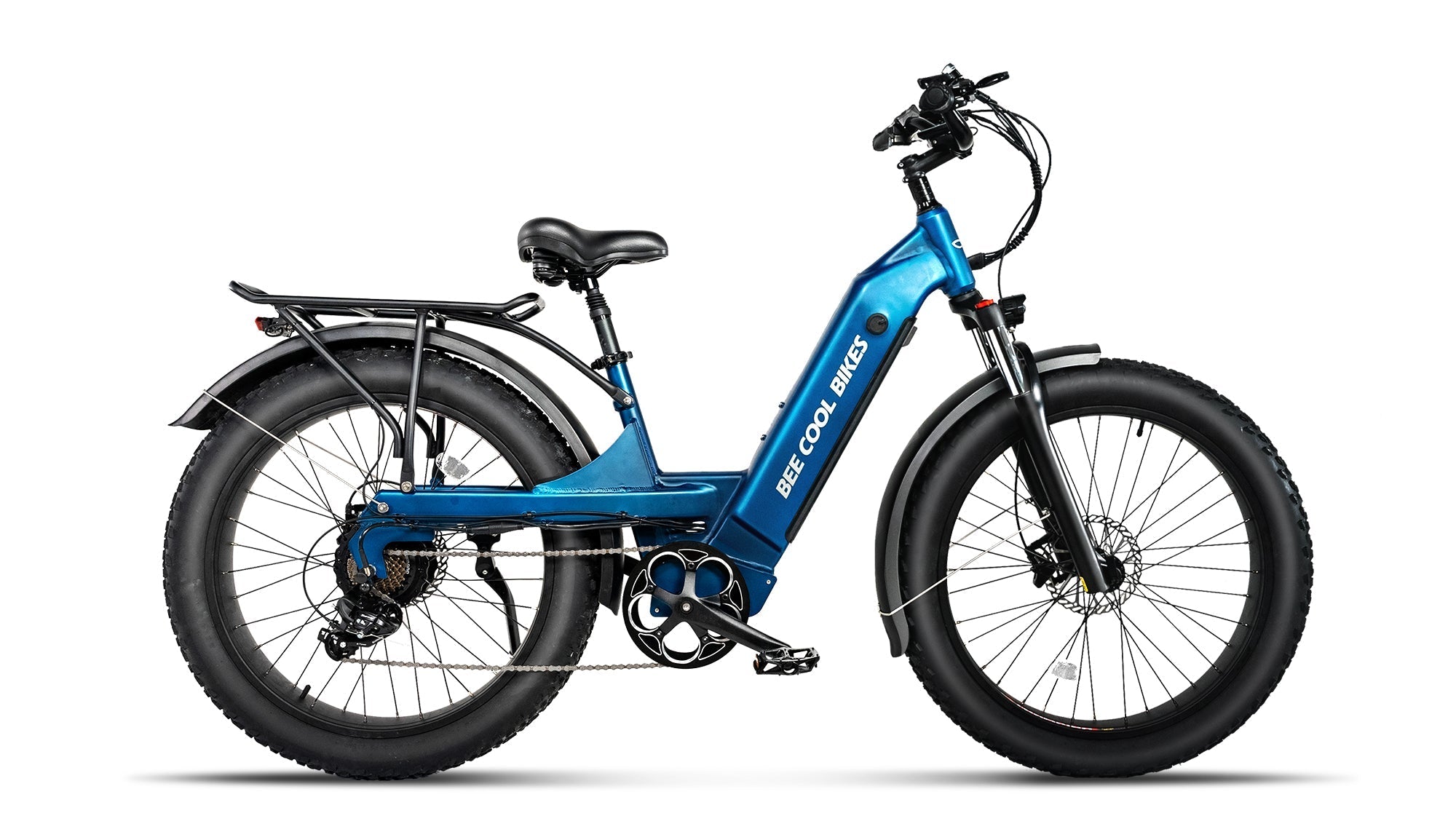

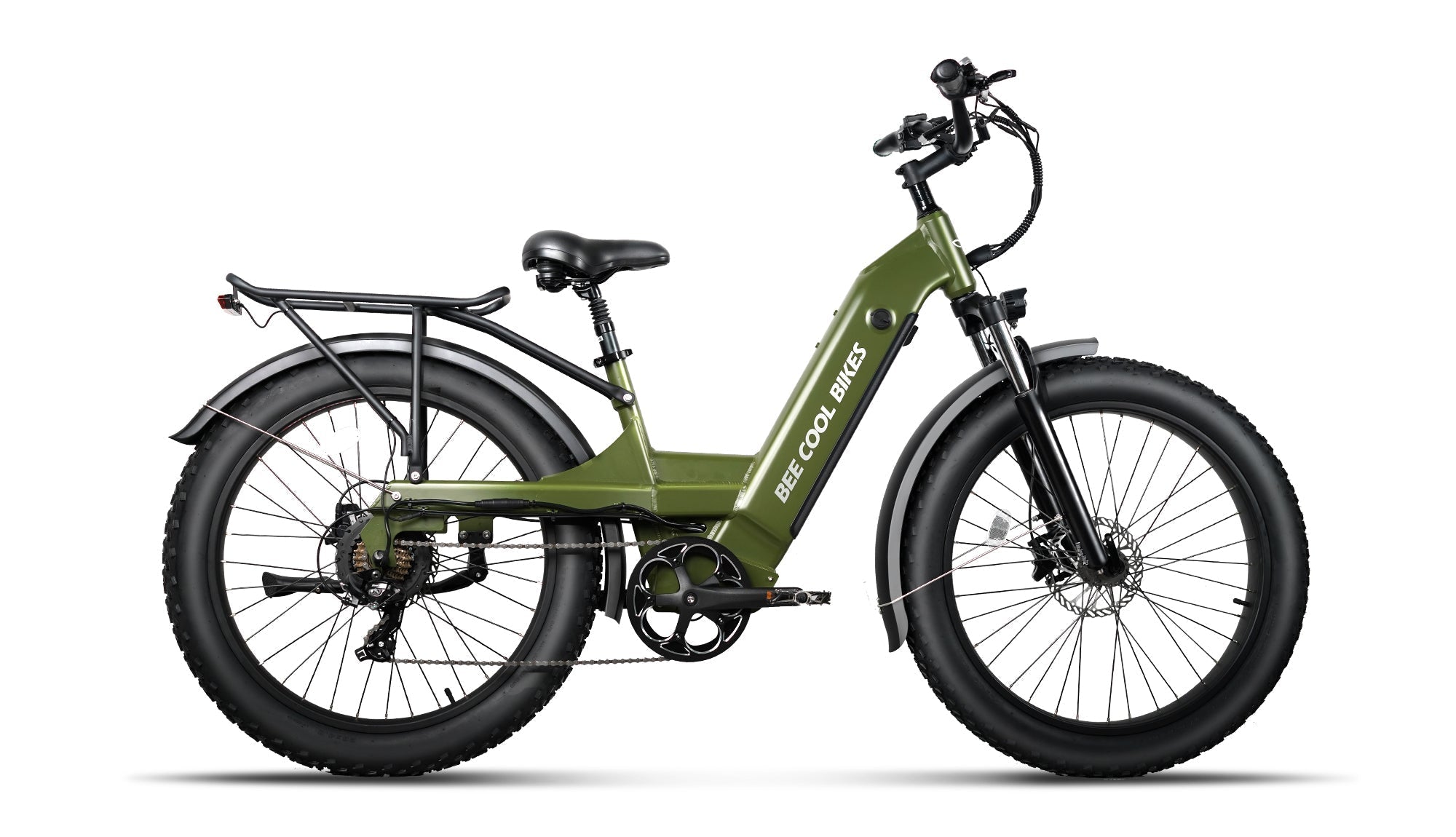

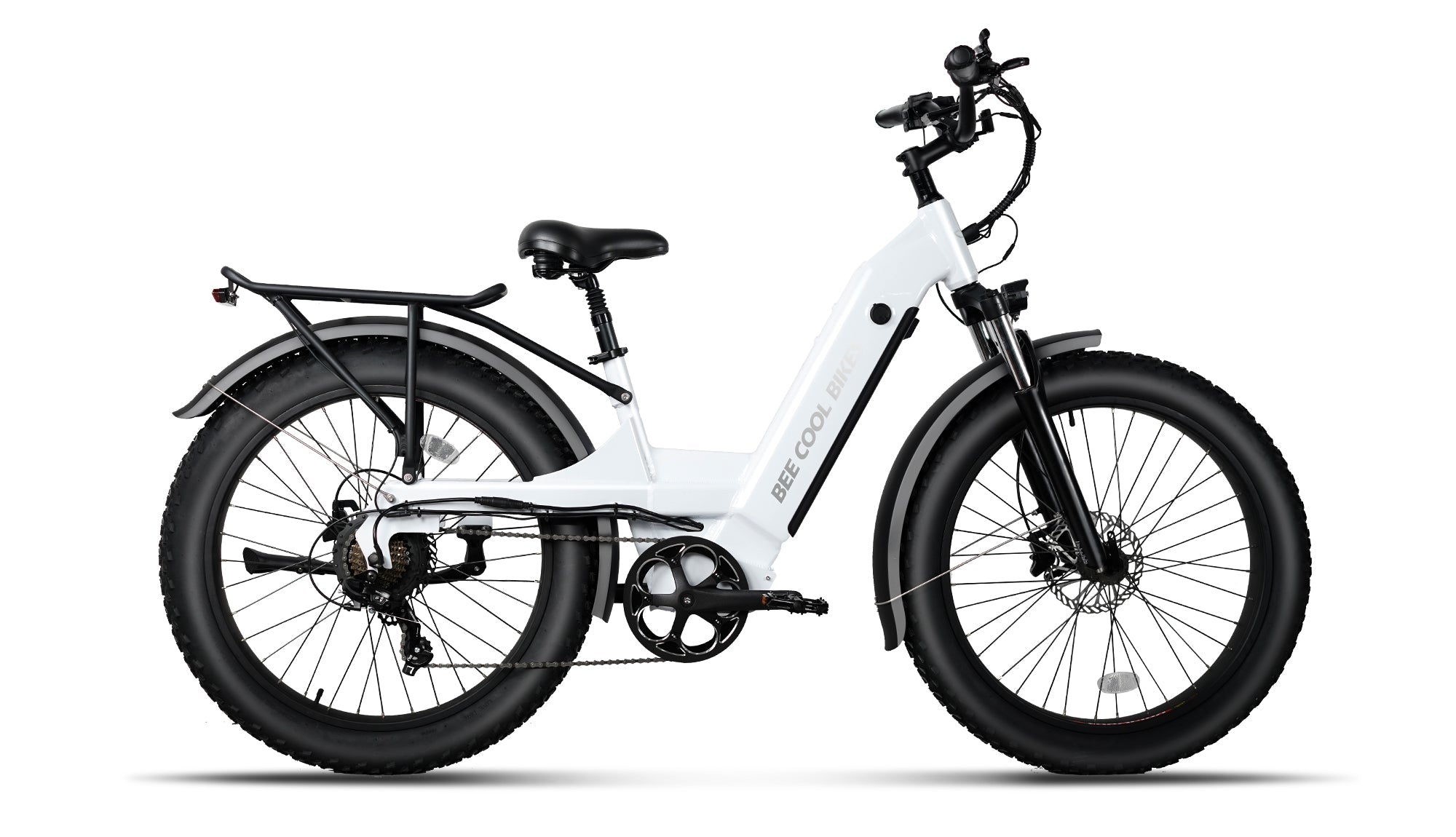

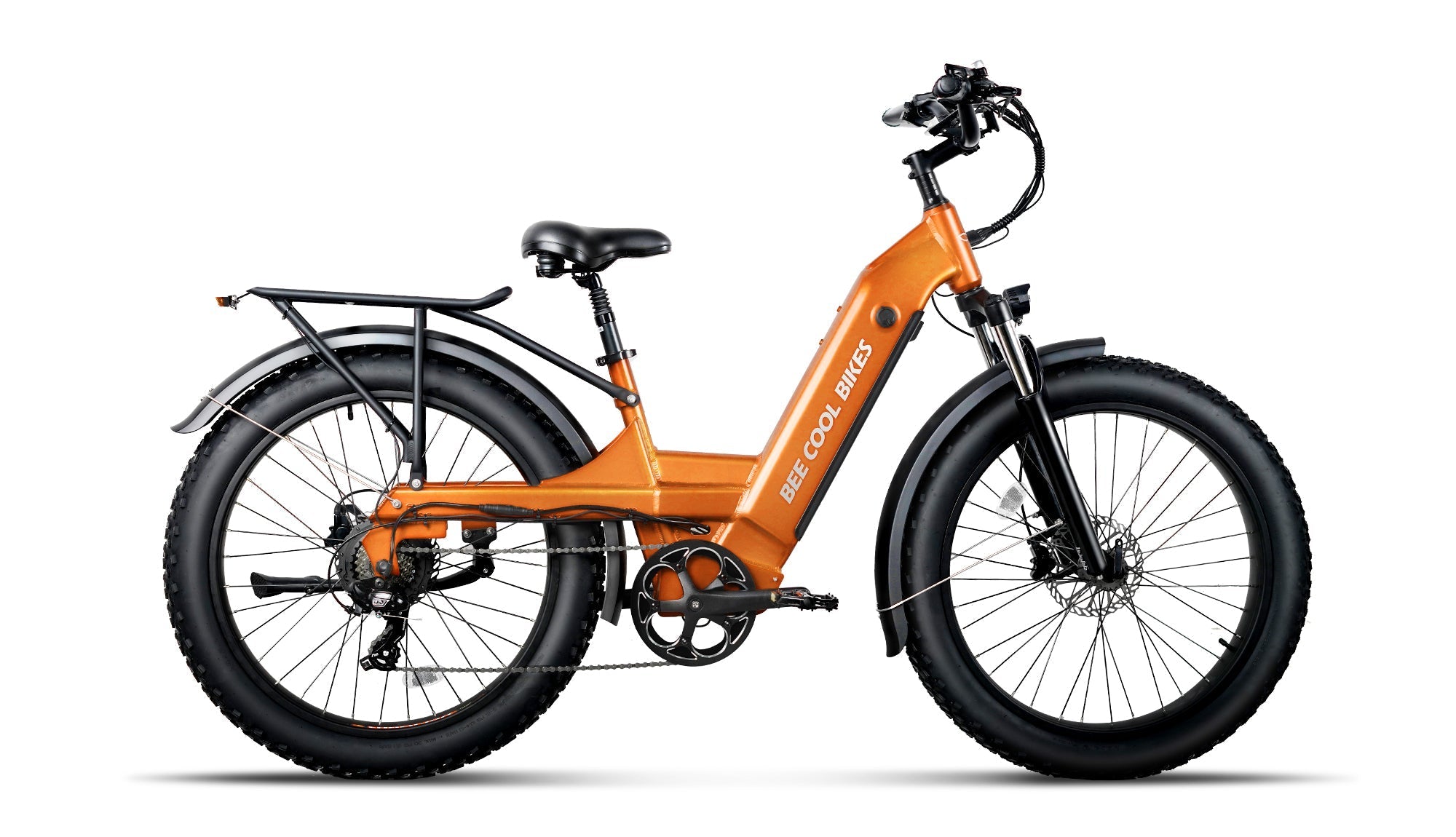

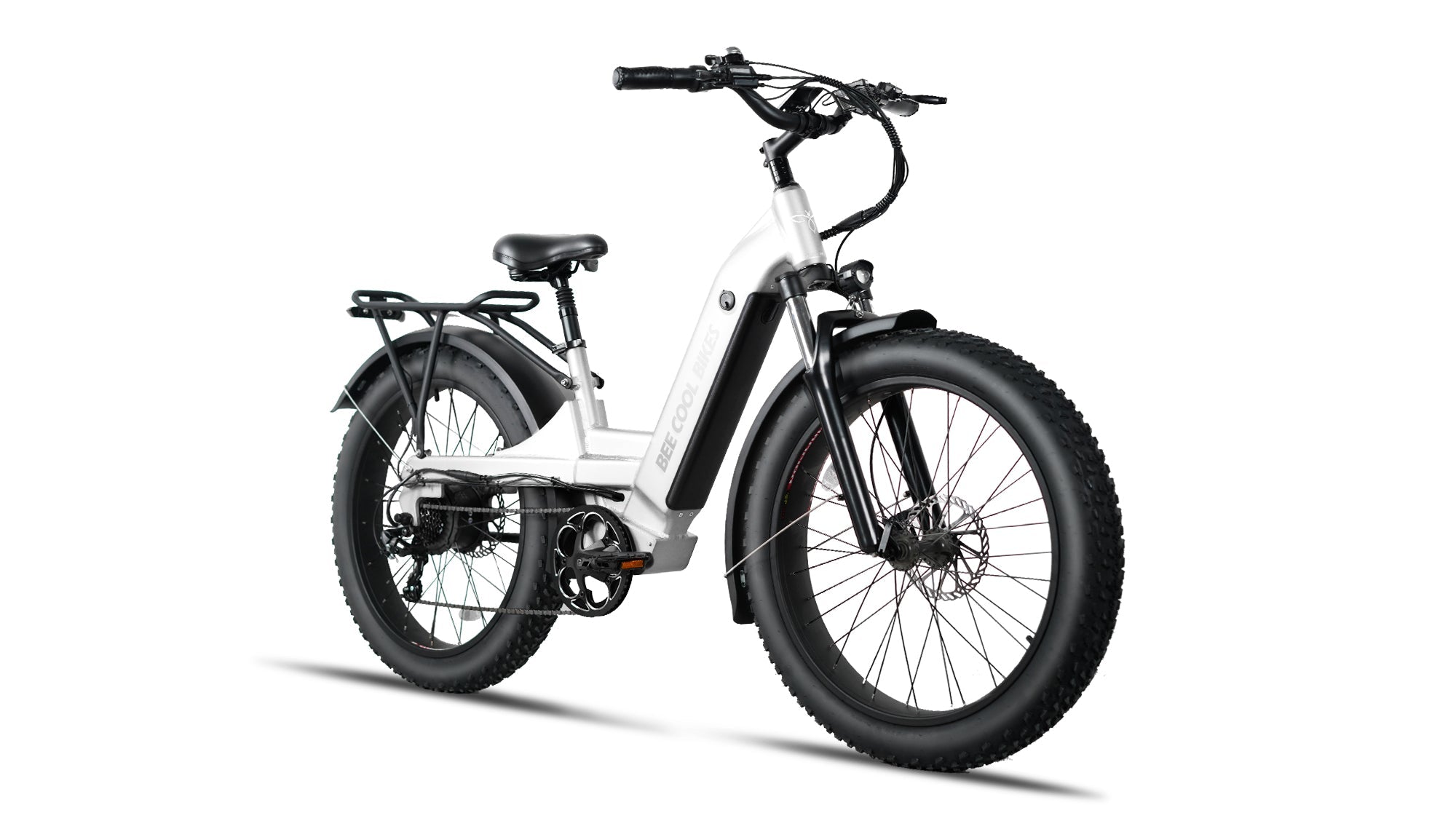

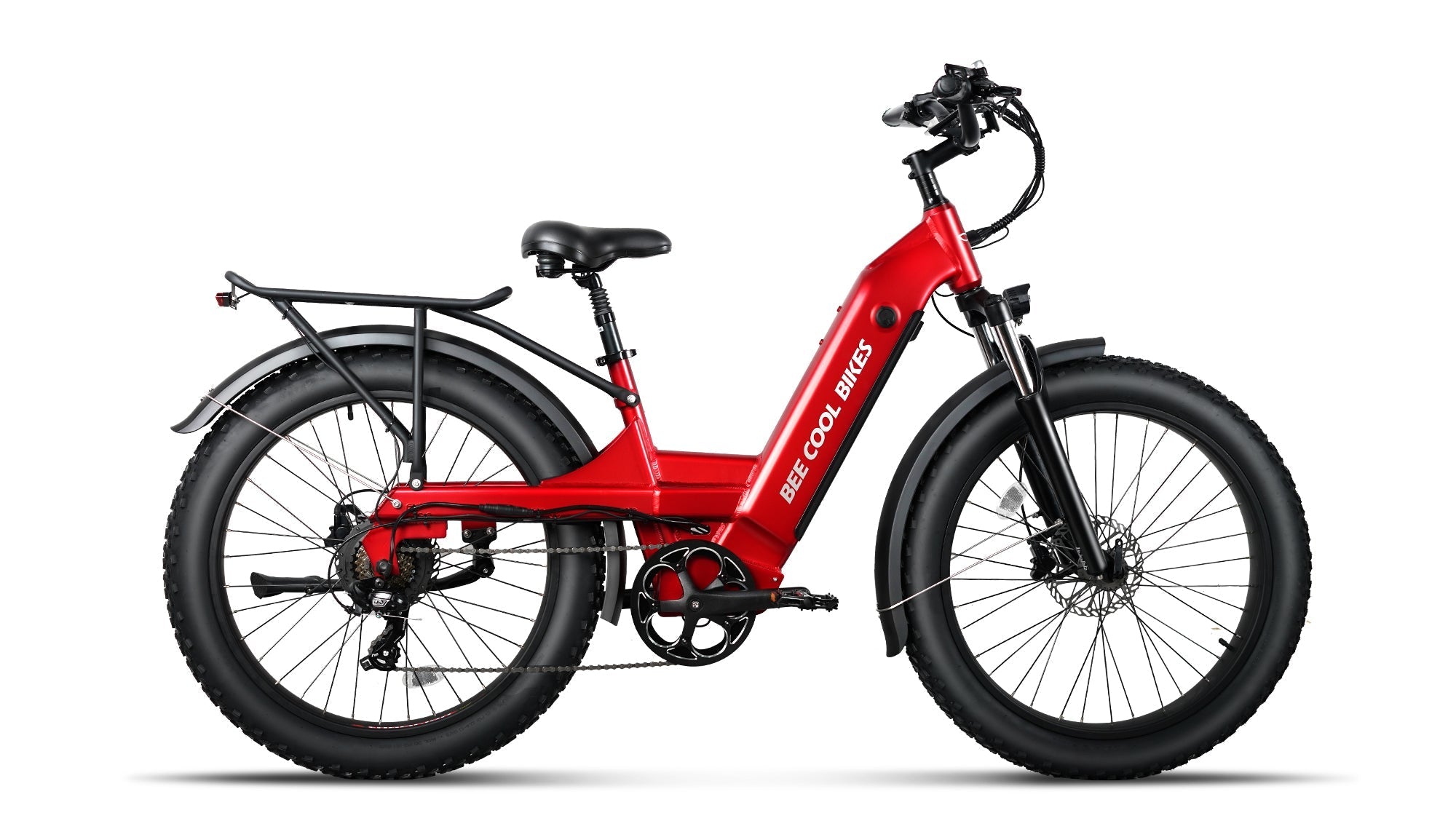

Beecool Bikes Bee Pathfinder Step-Thru Bee-Pathfinder-ST

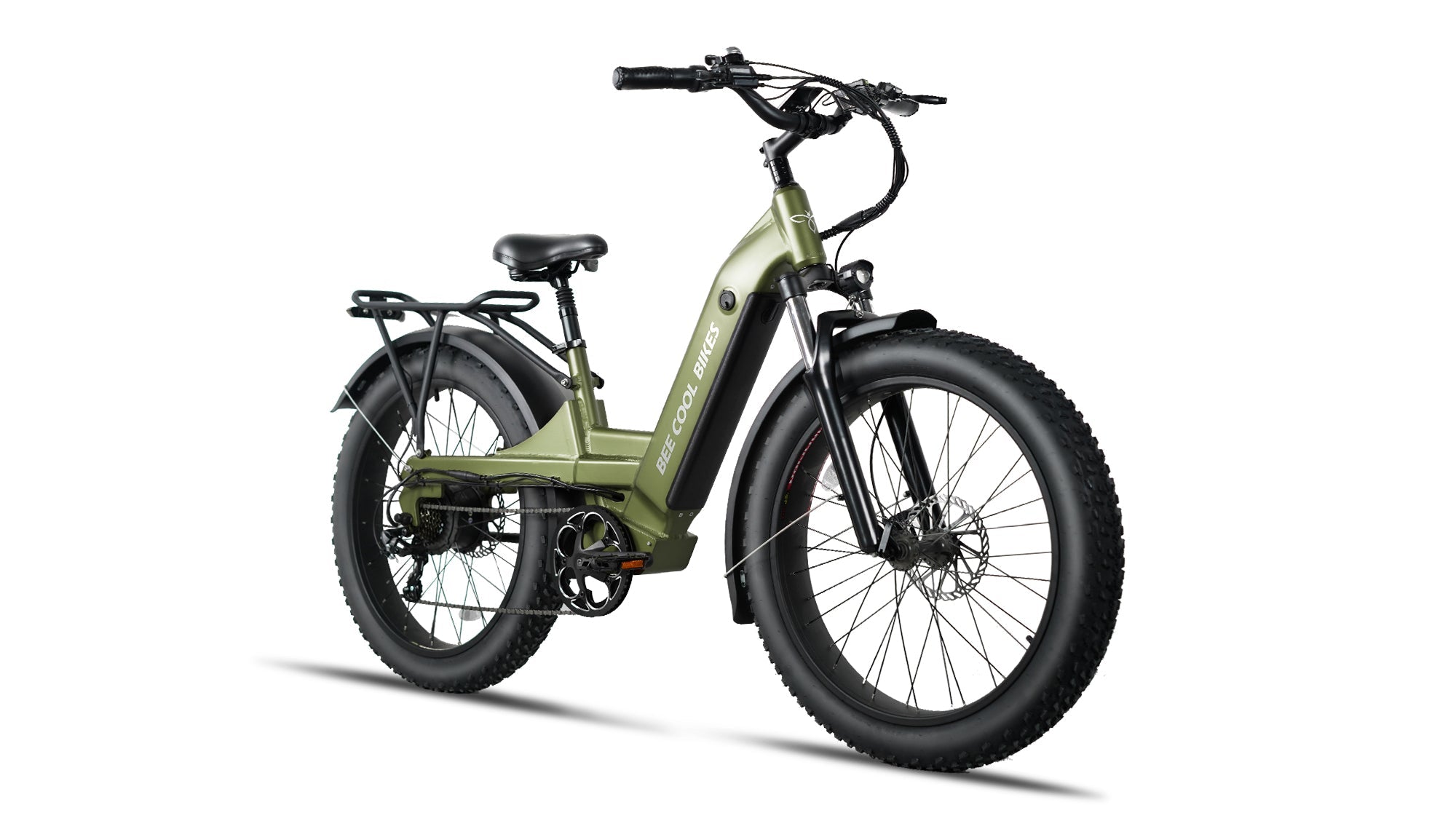

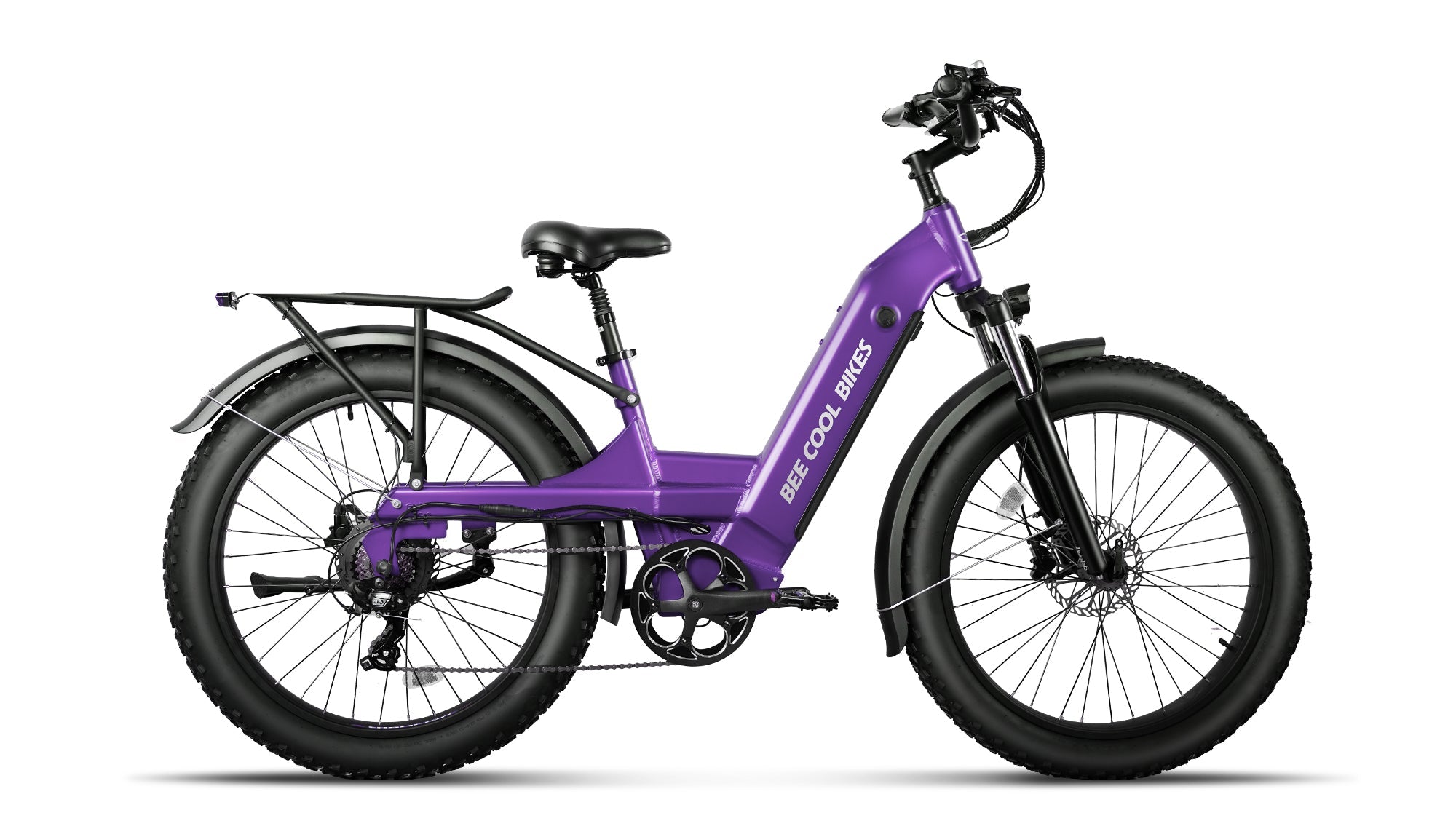

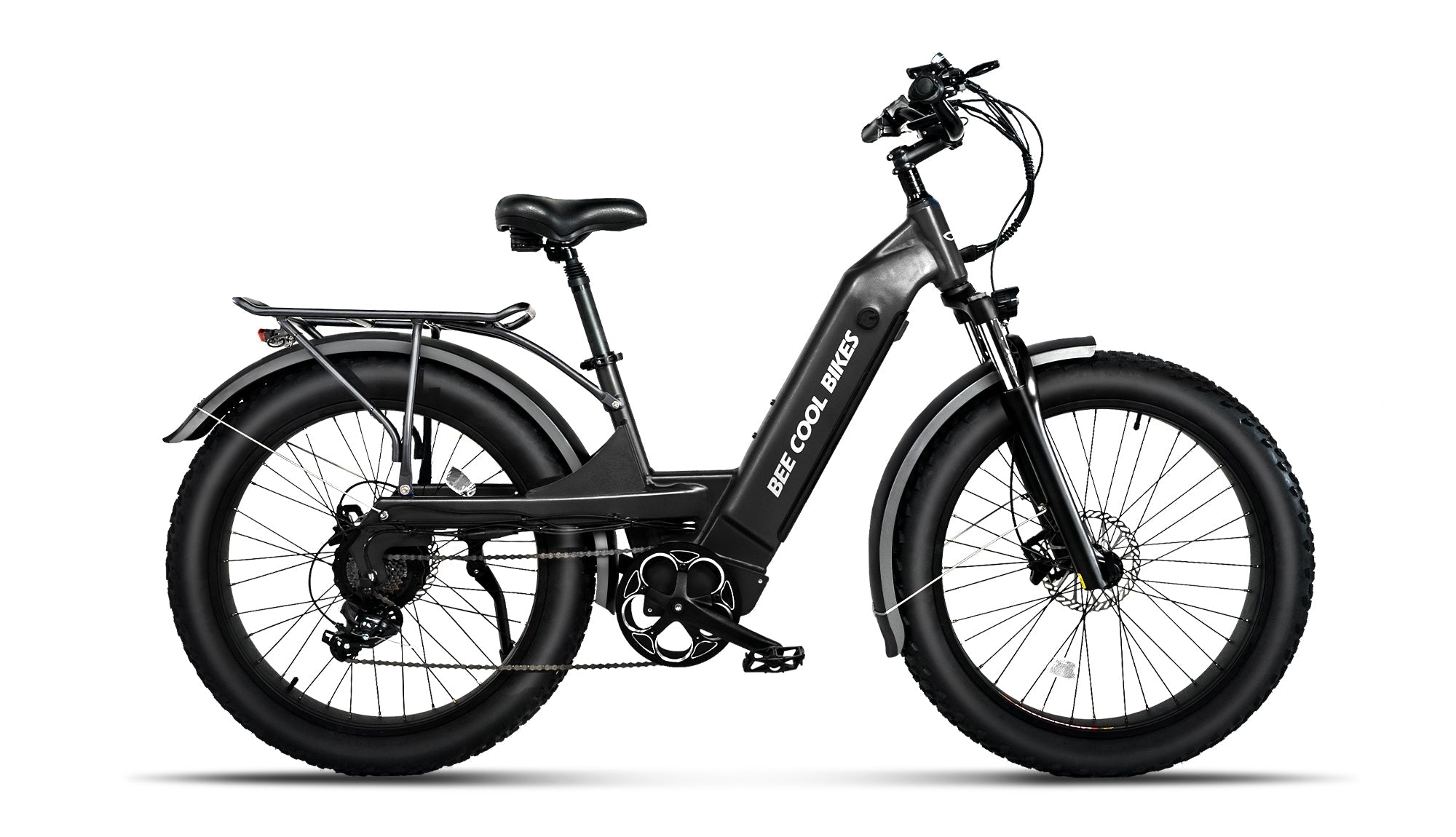

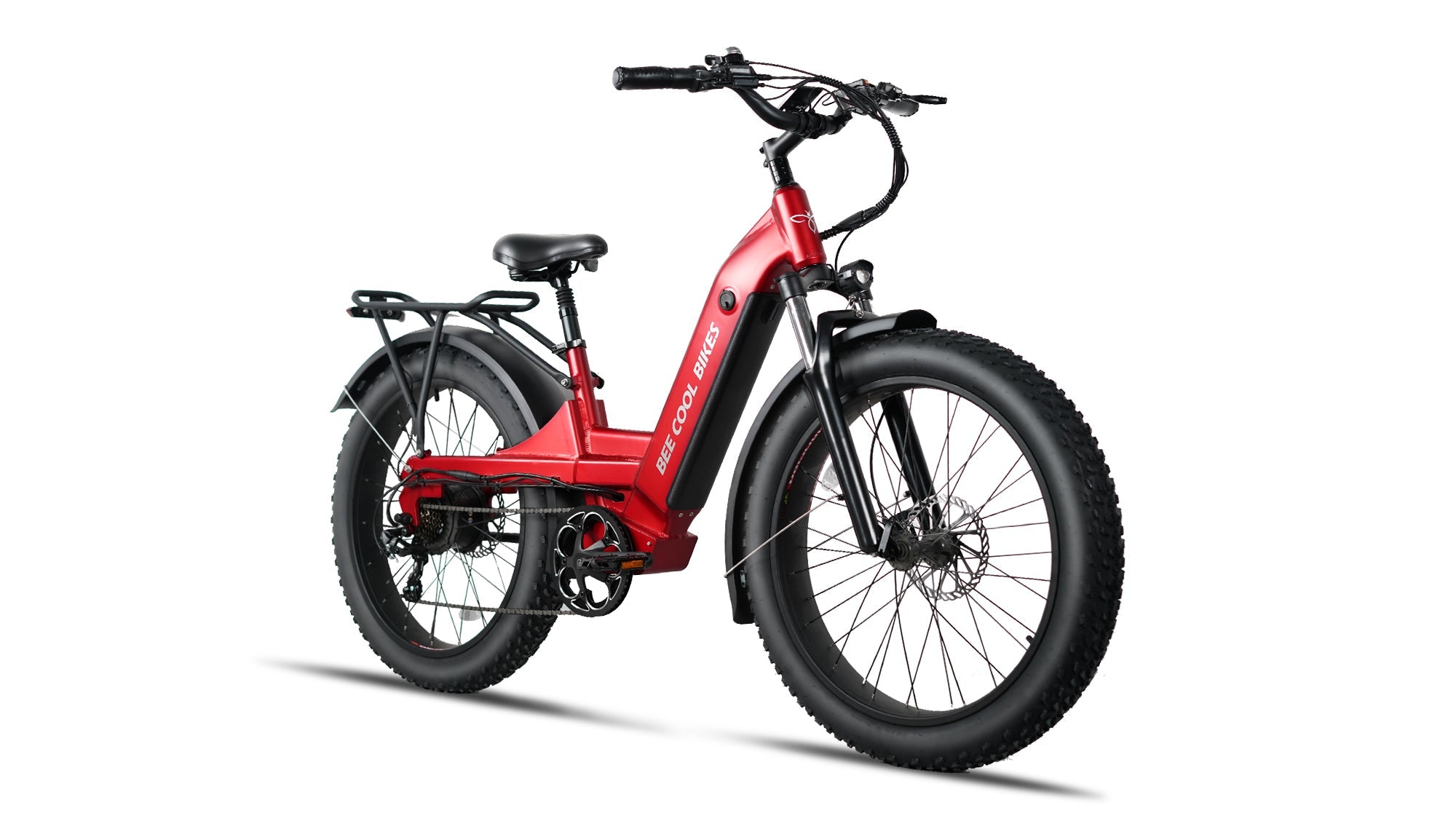

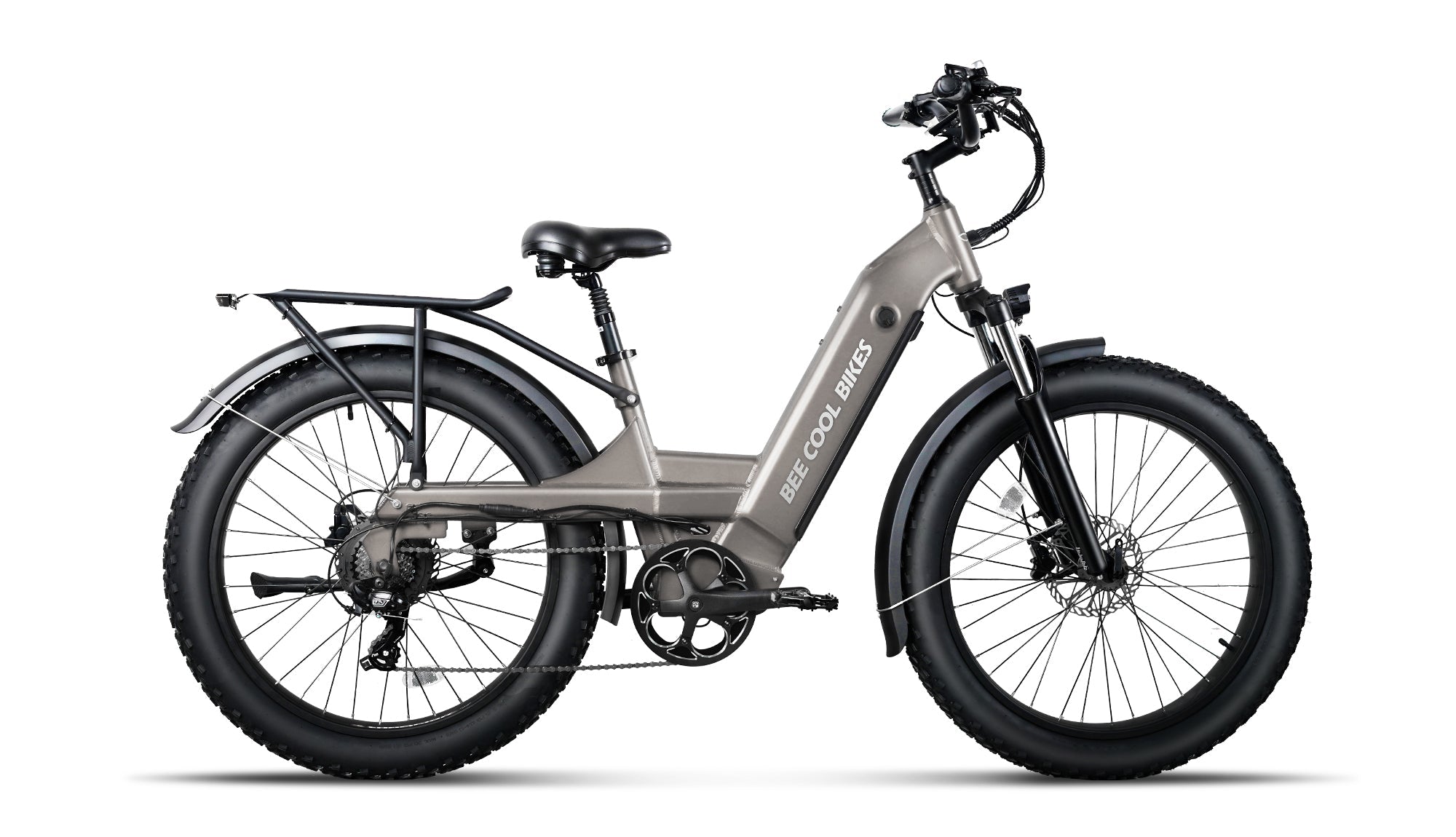

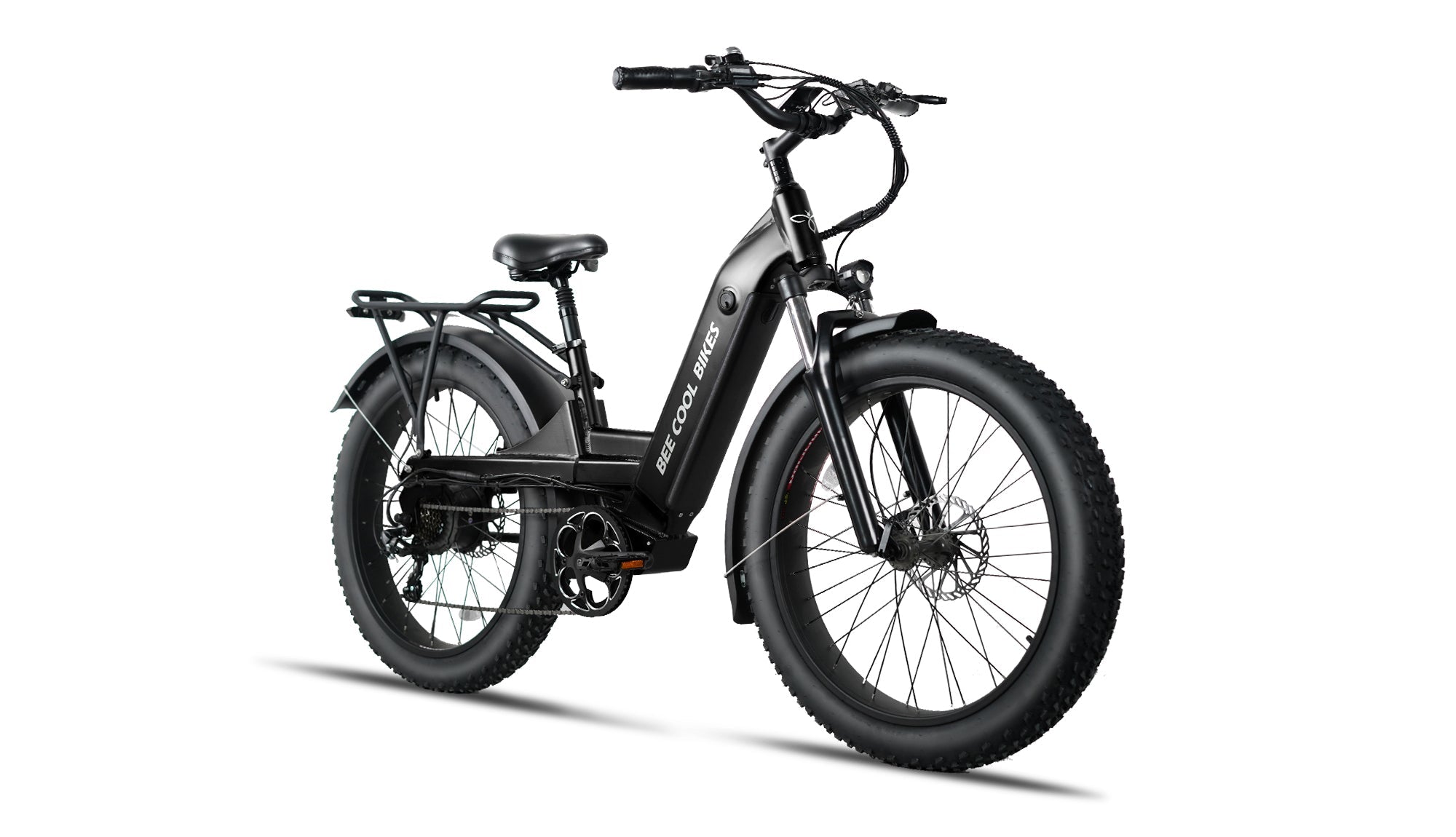

Bee Pathfinder Step-Thru – Accessible Power and Comfort for Every Rider

The Bee Pathfinder Step-Thru from BeeCool Bikes is engineered for riders who value comfort, accessibility, and performance. Its lower step-through frame design makes mounting and dismounting easier for a wider range of riders while maintaining the robust power and features of the standard Bee Pathfinder. With a 750W motor (peaks at 1100W) and 92Nm of torque, this fat tire eBike handles hills, rough trails, and city streets with ease. A 48V 20Ah integrated lithium-ion battery delivers up to 82 miles of range, and a full hydraulic suspension system ensures a smooth, controlled ride.

Key Features

• 750W Continuous / 1100W Peak Brushless Hub Motor (92Nm Torque)

• 48V 20Ah Integrated Lithium Battery (21700 Cells)

• Top Speed: 28 mph (unlockable)

• Up to 82 Miles of Range (PAS Mode)

• 7-Speed Shimano Tourney Gear System

• Front Hydraulic Fork + Rear Seat Suspension

• Dual 180mm Hydraulic Disc Brakes

• Step-Thru Design for Easy Access

• 26" x 4" All-Terrain Fat Tires

• Color LCD Display

• Half Twist Throttle + 5-Level Pedal Assist

• Payload Capacity: 400 lbs

Performance & Motor

• Motor: 750W brushless geared hub motor (peaks at 1100W)

• Torque: 92Nm for powerful acceleration and hill-climbing

• Transmission: Shimano 7-Speed

• Throttle: Half-twist

• Pedal Assist: 5 levels with 12-point cadence sensor

• Controller: 48V, 22A

• Crankset: 48T, 170mm forged alloy with dual bash guards

Battery & Range

• Battery: 48V 20Ah Lithium-ion (21700 cells)

• Charge Cycles: 900+

• Range:

  • Up to 82 miles (pedal assist)

  • ~50 miles (throttle only)

• Charger: 48V smart charger (100V–240V AC compatible)

Comfort & Suspension

• Fork: Hydraulic front fork, 120mm travel, with lockout and preload adjustment

• Rear Suspension: Integrated seat suspension post

• Saddle: Plush with lifting handle

• Ergonomics: Custom aluminum handlebar with leather-style grips

Safety & Control

• Brakes: Didor dual-piston hydraulic disc brakes

• Rotors: 180mm front and rear

• Lights:

  • Front: 300lm LED headlight

  • Rear: Integrated taillight with brake and signal lights

• Brake Levers: Motor cutoff switch and integrated bell

Tires & Frame

• Tires: 26" x 4" fat tires with 60 TPI

• Rims: Double-wall, 36H

• Frame: Crater-free welded 6061 aluminum

• Total Weight: 81.5 lbs (with battery, rack, and fenders)

• Payload Capacity: 400 lbs

• Water/Dust Resistance: Sealed connectors and water-resistant harness

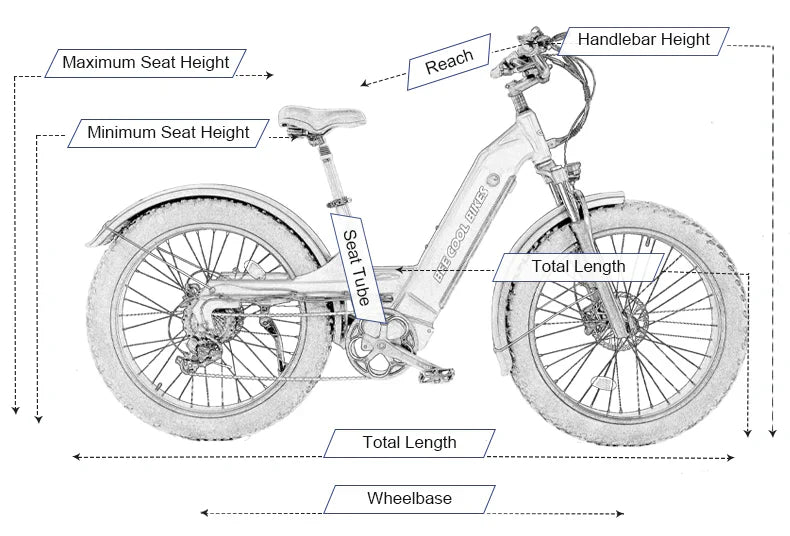

Fit & Geometry

• Rider Height: 5'3" – 6'3"

• Standover Height: 20.8"

• Seat Height: 35" – 40.5"

• Handlebar Height: 47.2"

• Total Length: 76"

• Wheelbase: 48.1"

Display & Controls

• Display: Full-color LCD with speed, PAS level, battery, odometer, trip, watt meter, and more

• Control Pad: Left-side button pad for lights, power, horn, PAS level, and turn signals

Additional Features

• Rear Rack (60 lb capacity)

• Full Fenders (Front & Rear)

• Kickstand: Wide aluminum base

• Pedals: CrMo axle, aluminum platform with reflectors

• Freewheel: Shimano Tourney MF-TZ500 14–28T

• Shifter: Shimano SL-TX50-7R thumb shifter

What’s In The Box

• 1 × Bee Pathfinder Step-Thru eBike (with fenders and rack pre-installed)

• 1 × 48V 20Ah Battery

• 1 × 48V Smart Charger

• 2 × Pedals

• 1 × Assembly Tool Kit

• 1 × User Manual

Bee Pathfinder Step-Thru – The Accessible, Full-Power eBike Experience
Built for comfort, designed for riders of all sizes, and packed with features to make every journey more enjoyable.
