Bee Explorer Lite – Stylish, Rugged, All-Terrain Performance

Introducing the Bee Explorer Lite, an all-terrain fat tire electric bike engineered for power, style, and unmatched comfort. With its vibrant colors and streamlined design, this sporty e-bike is built for riders who crave adventure without sacrificing everyday practicality.

Key Highlights:

• 48V 21Ah Battery: Ride over 80 miles per charge with pedal-assist, or 50 miles using throttle only

• 750W Motor (1100W Peak): Powerful hub motor with 92Nm of torque conquers steep hills, sand, snow, and more

• 24" x 4" Fat Tires: Wide tires for better traction and stability on all terrains

• Max Speed: Reach up to 28 mph effortlessly

• Dual Suspension System: Includes ADR™ Horst Linkage rear suspension and front fork with lockout

• Color LCD Display: See speed, battery life, odometer, trip, PAS level, and more

• Comfortable Ride: Plush saddle, ergonomic grips, and wider seat reduce fatigue on long rides

• Secure Battery Lock: Keeps battery safely in place with anti-theft key lock

• Lighting System: Standard LED front light and integrated rear signal/brake light

• Shimano 7-Speed Gearing: Smooth gear transitions for varied terrain

• Pedal Assist + Throttle: Choose from 5 levels of PAS or throttle-only mode

• Full Set of Accessories: Fenders, rear rack (60 lb capacity), kickstand, charger, tools, and more

ADR™ Horst Linkage Suspension
The Bee Explorer Lite features BeeCool’s proprietary ADR™ horst linkage rear suspension, offering superior shock absorption and frame integrity. The polygonal frame structure absorbs vertical and rearward impact forces, delivering a smooth and controlled ride—especially on bumpy and uneven terrain.

Specifications

Core Components:

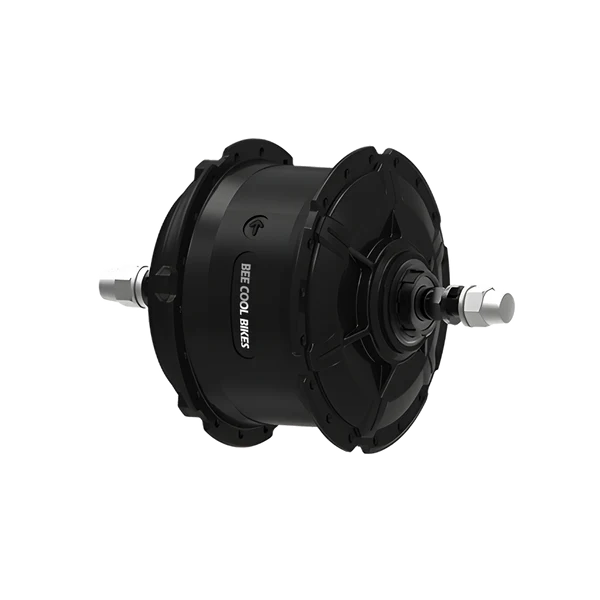

• Motor: 750W continuous, 1100W peak, brushless geared hub (92 Nm torque)

• Battery: 48V 21Ah lithium-ion (900 charge cycles)

• Display: Color LCD with USB port (5V, 1A)

• Throttle: Half-twist

• Pedal Assist: 5 levels with 12-magnet cadence sensor

• Controller: 48V, 22A

• Charger: 48V smart charger (100V–240V AC input)

Frame & Suspension:

• Frame: 6061 aluminum

• Fork: 120mm travel spring fork with lockout & preload adjust

• Rear Suspension: ADR™ Horst Linkage

Drivetrain:

• Crankset: 48T, 170mm dual bash guard alloy

• Derailleur: Shimano Tourney 7-speed

• Shifter: Shimano SL-TX50-7R

• Freewheel: Shimano MF-TZ500 14–28T

Brakes:

• Calipers: YS Aries (700-E)

• Levers: Comfort alloy with motor cutoff & bell

• Rotors: 180mm front and rear

• Pads: Sintered metal

Tires & Wheels:

• Tires: 24" x 4" (TPI: 60) by Innova Tires

• Rims: Double wall, 36H

• Spokes: 12-gauge stainless steel

• Kickstand: Wide foot heavy-duty aluminum

Comfort & Accessories:

• Saddle: Plush with rear lifting handle

• Grips: Faux leather ergonomic

• Fenders: Front and rear (half coverage)

• Rear Rack: Included (max load 60 lbs)

• Lighting: LED headlight + rear integrated signal/brake light

• Extras: Bell, rear rack, tools, charger, manual, pedals

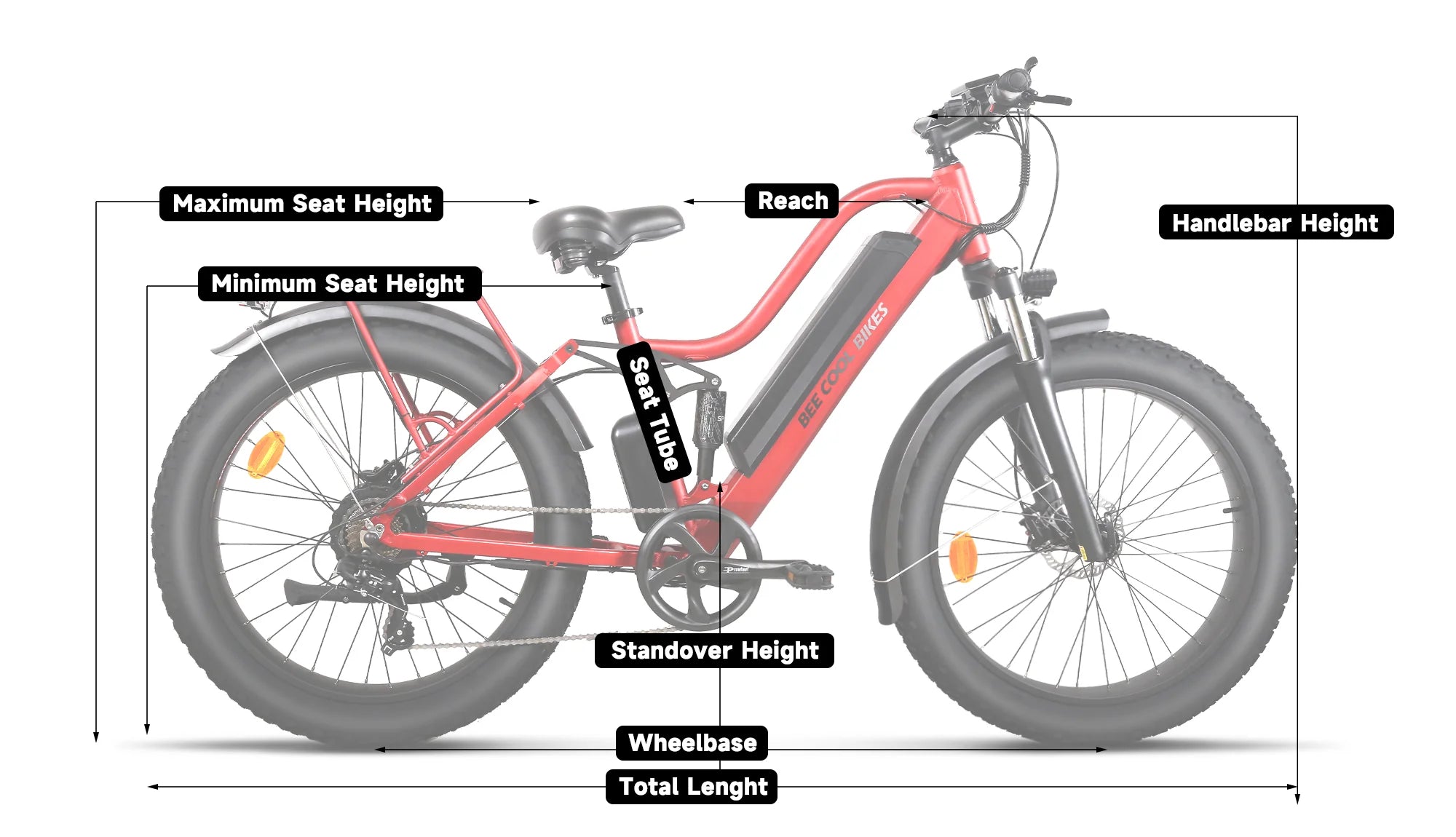

Size & Fit

• Frame Size: 17"

• Rider Height: 5'2" – 6'3"

• Total Length: 69.7"

• Wheelbase: 47.2"

• Handlebar Height/Reach/Width: 44.1" / 20.5" / 24.8"

• Seat Height: 31.5"–36.2"

• Seat Tube Length/Diameter: 15" / 31.8mm

• Stand Over Height: 26.4"

• Crank Length: 170mm

• Weight: 76 lbs (with rack, battery, and fenders)

What’s in the Box

• 1× Bee Explorer Lite E-Bike (battery, rear rack & fenders pre-installed)

• 1× Battery Charger

• 1× Assembly Tools

• 1× User Manual

• 2× Pedals

Go farther. Ride smoother. Explore anywhere.
The Bee Explorer Lite is your ticket to reliable, high-performance riding—on road, off-road, or anywhere your adventure leads.
